Fluke 333 Digital 400 Amp AC Clamp Meter-

Ask an Expert

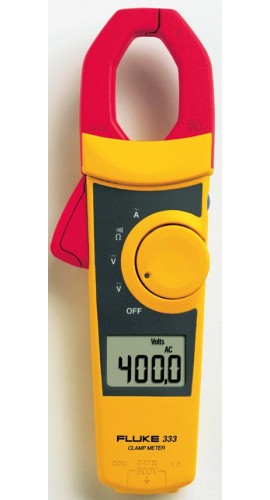

Fluke 333 Digital 400 Amp AC Clamp Meter

Model: 333A

400 Amp. AVG, 400A AC, 600V AC/DC, Continuity.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 374 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V-

Fluke 374 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V

Model: 374 FC | Order No: 374FC

Measure AC and DC current to 600 A with the fixed jaw clamp on this True RMS clamp meter. This unit also measures AC and DC voltage to 1000 V and resistance to 6000 Ω, and enables you to troubleshoot non-linear signals. Additionally, this unit is Fluke Connect compatible.

Learn More


Fluke 333A Specifications

Specifications
Voltage DC
Range 0 - 600.0 V
Accuracy 1% ± 5 counts
Range 0 - 600.0 V
Accuracy 1% ± 5 counts
Voltage AC
Range 0 - 600.0 V
Accuracy 1% ± 5 counts (50/60 Hz)
AC Response Averaging
Range 0 - 600.0 V
Accuracy 1% ± 5 counts (50/60 Hz)
AC Response Averaging
Current AC
Range 0 - 400.0 A
Accuracy 2% ± 5 counts (50/60 Hz)
AC Response Averaging
Range 0 - 400.0 A
Accuracy 2% ± 5 counts (50/60 Hz)
AC Response Averaging
Resistance
Range 0 - 600.0 Ω
Accuracy 1.5% ± 5 counts
Range 0 - 600.0 Ω
Accuracy 1.5% ± 5 counts
Continuity

<= 30 Ω </td>
  <= 30 Ω </td>
Environmental Specifications
Operating Temperature

-10°C to +50°C, -14°F to 122°F
  -10°C to +50°C, -14°F to 122°F
Storage Temperature
  -40�C to +60ºC, -22°F to 140°F
Operating Altitude

2,500 meters max, 6,500 ft max
  2,500 meters max, 6,500 ft max
Temperature De-rating

Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC (above 82.4°F or below 64.4°F)
  Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC (above 82.4°F or below 64.4°F)
Safety Specifications
Safety Rating

IEC 1010-2-032, 600V CAT III
  IEC 1010-2-032, 600V CAT III
Mechanical & General Specifications
Size
240mm x 80mm x 40mm (9.375" x 3.125" x 1.625")
Weight

310 g (11oz)
  310 g (11oz)
Warranty

Three years
  Three years
Battery Life

Alkaline approximately 150 hours continuous

Automatic low battery indicator
  Alkaline approximately 150 hours continuous
  Automatic low battery indicator
Display Hold

Yes
  Yes

What's included with the Fluke 333A

  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • Fluke TL75 test leads
  • Two AA Alkaline batteries
