Model: 437-II/BASIC
Measures power, energy and power quality data on all 3 phases including harmonics, transients, sags/swells, power factor, inrush. Does not include current probes.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

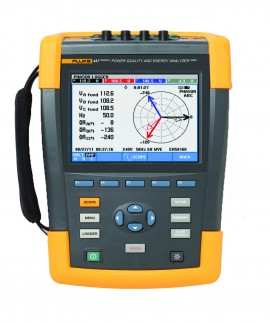

The Fluke 437-II is a Class A compliant three-phase power quality analyzer that help you locate, predict, prevent and troubleshoot problems in single phase and three phase power distribution systems. Great for Marine, Military, and Aero Applications. In addition to all the standard features of the Fluke 434-II, the Fluke 437-II offers additional features for the more demanding application.
The new 437-II offers most of the same measurement capabilities of the first generation of product:
In addition, the new Fluke 437 Series-II also adds several great new features and capabilities.
New Flexible Wide Range Current Probes - the introduction of the new i430-TF ultra-thin flexible current probe offers 0.5A to 6000A range
Power Inveter Efficiency - measure the efficiency of conversion from DC to AC for renewable energy systems
Energy Loss Calculator - measure and put an estimated cost associated with the power loss that comes from phase unbalance and harmonics
PowerWave - measure and record voltage, current and frequency at high speed to monitor power quality problems associated with load switching
8MB -> 8GB of Memory - a removable SD memory card offers 10x the memory and is upgradeable to 32GB
| Battery Life | 7 hours |
| Battery Type | nimh |
| CAT III Rating | 1000v |
| CAT IV Rating | 600v |
| Current AC Accuracy | 1% + 5 counts |
| Current DC Accuracy | 0.10% |
| Current Inputs | 4 |
| Dimensions | 256 mm x 169 mm x 64 mm (10 in x 6.5 in x 2.5 in) |
| High Speed Capture Rate | 200 |
| IP Rating | ip51 |
| Memory | 16 |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Sample Rate | 20.48 |
| Storage Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Typical Recording Period | 30 |
| Voltage AC Accuracy | 0.1% vnom |
| Voltage DC Accuracy | 0.10% |
| Voltage Inputs | 4 |
| Warranty | 3 years |
| Weight | 2 kg (4.5 lb) |
Click on a category to view a selection of compatible accessories with the Fluke 437-II/BASIC Power Quality Analyzer, 4 Current Input.
