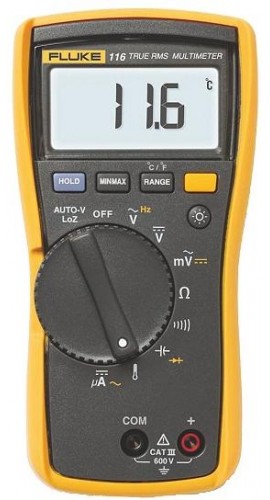

Fluke 116 HVAC/R Multimeter with temperature and microamps

Model: 116

Comes with temperature and microamp measurements, making this multimeter ideal for HVAC/R professionals. This product also measures resistance, continuity, frequency, and capacitance and features a built-in thermometer. Additionally, it features a white LED backlight, which makes it easy to see results even in poorly lit areas.

Traceable Calibration Certificate for your 116 HVAC/R Multimeter with temperature and microamps

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 CAD

$304.80 CAD

was $373.99

Availability:
4 in Stock

Designed by electricians. Engineered by Fluke.

The Fluke 116 HVAC Multimeter features temperature and microamps measurements useful for heating, ventilation, air conditioning and refrigeration (HVAC/R) technicians. The Fluke 116 is a compact true-rms meter and has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.

The Fluke 116 also, has dual impedance capability: incorporating both regular high impedance test capabilities and low impedance functions for detecting ghost voltages, just switch to the Auto-V/LoZ (low impedance) test setting to whether measurement is a ghost voltage.

Auto-V stands for automatic volts. This feature automatically determines whether the measured signal is ac voltage or dc voltage, selects the correct function and range, and displays the correct information.
LoZ stands for Low Impedance (Z). This feature presents a low impedance input to the circuit under test. This reduces the possibility of false readings due to ghost voltages and improves accuracy when testing to determine absence or presence of voltage.

Also check out the Fluke 114 Electrical Multimeter, the Fluke 115 Multimeter, and the Fluke 117, the Electrician's Multimeter with Non-contact voltage.

What's Included

4 mm silicone test lead set
80BK Integrated Temperature probe
Holster
Installed 9 V battery
User manual

Fluke 116 Specifications

Accuracy Specifications
DC Millivolts	Range: 600.0 mV Resolution: 0.1 mV Accuracy: 0.5 % + 2
DC Volts	Range: 6, 60, 600 V Resolution: 0.001, 0.01, 0.1 V Accuracy: 0.5 % + 2
Auto Volts	Range: 600.0 V Resolution: 0.1 V Accuracy: 2.0 % + 3 (dc, 45 to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts True RMS	Range: 600.0 mV Resolution: 0.1 V Accuracy: 1.0 % + 3 (dc, 45 to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
AC Volts True RMS	Range: 6, 60, 600 V Resolution: 0.001, 0.01, 0.1 V Accuracy: 1.0 % + 3 (dc, 45 to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
Continuity	Range: 600 Ω Resolution: 1 Ω Accuracy: Beeper on <20 Ω off> 250 Ω; detects opens or shorts of 500 µs or longer
Ohms	Range: 600 Ω, 6, 60, 600 kΩ, 6, 40 MΩ Resolution: 1 Ω, 0.001, 0.01, 0.1 kΩ, 0.001, 0.01 MΩ Accuracy: 0.9 % + 1
Diode Test	Range: 2.000 V Resolution: 0.001 V Accuracy: 0.9 % + 2
Capacitance	Range: 1000, nF, 10, 100, 9999, 100 to 1000, >1000 µF Resolution: 1 nF, 0.01, 0.1, 1 µF Accuracy: 0.9 % + 2, 1.9 % + 2, 5 % + 20
Lo-Z Capacitance	Range: 1 nF to 500µF Accuracy: 10 % + 2 typical
Temperature (Type-K Thermocouple)	Range: -40 to 752 °F (-40 to 400 °C) Resolution: 0.2 °F (0.1°C) Accuracy: 1 % + 18
AC µAmps True RMS (45 to 500 Hz)	Range: 600.0 µA Resolution: 0.1 µA Accuracy: 1.5 % + 3 (2.5 % + 3 >500 Hz
DC µAmps	Range: 600.0 µA Resolution: 0.1 µA Accuracy: 1.0 % + 2
Hz (V or A input)	Range: 99.99, 999.9 Hz, 9.999, 50.00 kHz Resolution: 0.01, 0.1 Hz, 0.001, 0.01 kHz Accuracy: 0.1 % + 2
General Specifications
Maximum Voltage Between any Terminal and Earth Ground	600 V
Display	Digital: 6,000 counts, updates 4/sec
Bar Graph	33 segments, updates 32/sec
Operating Temperature	14 to 122°F (-10 to 50°C)
Storage Temperature	-40 to 140°F (-40 to 60°C)
Battery	9 V Alkaline, NEDA 1604A/IEC 6LR61
Battery Life	400 hours typical, without backlight
Surge Protection	6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2

Click here for complete specifications on the Fluke 116

What's included with the Fluke 116

Multimeter
Test Leads
Integrated Temperature Probe
Yellow Rubber Boot
Battery (Installed)
User Manual
