Fluke 902 Offers
Heating, ventilation, air conditioning (HVAC) technicians require a service tool that can consistently keep up with their demands. The Fluke 902 expands the exisiting line of quality Fluke clamp meters by delivering the features necessary to diagnose and repair HVAC systems. Combined with True RMS technology and a CAT III 600 V rating, the Fluke 902 helps technicians do their jobs safely and accurately.

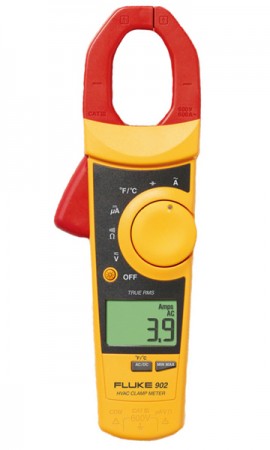

The new Fluke 902 True RMS HVAC Clamp Meter provides the accuracy, reliability and ruggedness that defines Fluke test tools. It is designed for HVAC technicians for the systems they service and install daily. With True RMS technology and a CAT III 600V rating, HVAC technicians can troubleshoot and maintain HVAC equipment safely and with confidence in the results.
Use the Fluke 902 to get more done:
- Capture flue gas temperatures
- Conduct flame rod testing
- Measure start and run motor capacitors
- Measure supply side current and voltage as well as load side current and voltage
- Measure current and voltage phase balance on 3 phase systems
- Troubleshoot compressor electrical motor faults
Fluke 902 Specifications
| Specifications |
| Voltage DC |
| Range |
0 - 600.0 V |
| Accuracy |
1% ± 5 counts |
|
| Voltage AC (True RMS) |
| Range |
0 - 600.0 V |
| Accuracy |
1% ± 5 counts (50/60 Hz) |
|
| Current AC (True RMS) |
| Range |
0 - 600.0 A |
| Accuracy |
2.0% ± 5 counts (50/60 Hz) |
|
| Current DC |
| Range |
0 - 200.0 µA |
| Accuracy |
1.0% ± 5 counts |
|
| Resistance |
| Range |
0 - 9999 Ω |
| Accuracy |
1.5% ± 5 counts |
|
| Continuity | |
Temperature*
(Type K Thermocouple) |
| Range |
-10 degree C to 400 degree C (-14 degree F to 752 degree F) |
| Accuracy |
+/- 1.0% + 0.8 degree C (+/- 1.0% + 1.5 degree F) typical
|
| Range |
-40 degree C to -10 degree C (-40 degree F to -14 degree F) |
| Accuracy |
+/- 5.0% + 1.5 degree C (+/- 5.0% + 3.3 degree F) typical |
|
| Capacitance |
| Range |
1-1000 µF |
| Accuracy |
1.9% ± 2 counts |
|
* Error does not include Type K Thermocouple errors
| Mechanical & General Specifications |
| Weight | |
| Dimensions |
|
10.75" x 4.25" x 2.44" (27.3 cm x 10.8 cm x 6.2 cm) |
|
| Battery type |
|
(2) AA Alkaline Batteries | |
Click here for complete specifications on the Fluke 902
What's included with the Fluke 902
- AA Alkaline batteries (2)
- Users manual w/safety information
- Soft carrying case
- Fluke TL75 Test Leads (1 pair)
- Fluke 80BK Integrated DMM Temperature Probe (1)
