Fluke 1750/ET Power Quality Recorder with Windows 10 Tablet

Model: 1750/ET

A powerful high-capacity and fast-sampling power quality recorder that captures all events and waveforms on all channels all the time. Complete kit with all essential accessories.

$20,548.00 CAD

Availability: 2 to 3 Weeks
Need a quote?

Fluke 1750/ET Offers

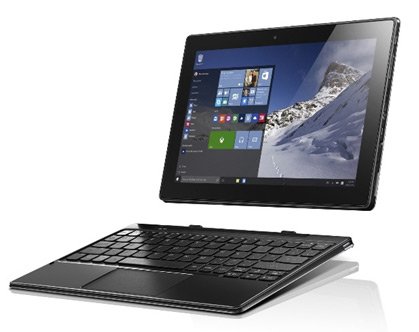

New Fluke 1750 Windows 10 Tablet: New Window's 10 Tablet for Control, Setup, Data Download and Analysis with Fluke 1750 in the field now included.

This new tablet runs the full version of Fluke Energy Analyzer for instrument setup in the field and downloading with basic analysis. Setup and download is made by connecting the 1750 to the tablet via a wired Ethernet connection. The tablet has a detachable keyboard with two USB ports. The supplied Ethernet adapter connects to the other USB ports and then to the instrument via a standard Ethernet cable.

Power quality that meets the standard: All measurements comply with IEC61000-4-30 standards for correct evaluation of all measured values including voltage, current, power, harmonics, flicker etc.


  • Quick and reliable configuration: ARCHOS 43 Internet Tablet provides a window into what the instrument is recording, enabling quick and reliable configuration even in awkward test locations
  • Threshold-free set up: Apply thresholds after data is collected with Fluke Power Analyze Software – no need to worry about missed information due to incorrect setups
  • Captures everything: Cross-channel and current triggering capture every measurement, on every channel, every time
  • Intuitive PC software: Easily analyze data and generate reports with automated EN50160 reporting and compliance
  • Reporting has never been easier: Auto Report creates either standard reports or customized reports with the minimum effort or hassle.
  • Plug and play: Set up in minutes with self-identifying current probes and single-lead voltage connections
  • No need to reconnect wires: Swap channels internally with the wireless PDA or PC when connections are not correct
  • Measure every parameter: Voltage and current on three phases, neutral, and ground
  • 5 MHz, 8000 Vpk waveform capture: Get a detailed picture of even the shortest events
  • Quickly retrieve data: With included SD memory card or via the 100BaseT high-speed Ethernet connection. SD card includes automatic download to SD when no other connection is made to the instrument.


  • Long term analysis - Uncover hard-to-find or intermittent issues; monitor critical equipment, capturing power quality events to correlate with equipment malfunction
  • Power Quality surveys - Quantify power quality throughout a facility, documenting results with professional reports
  • Quality of service compliance - Validate incoming power quality at the service entrance
  • Equipment installation/Commissioning - Benchmark: power system prior to install to insure quality of service

Fluke 1750/ET Specifications

Power Quality Measurement Standards
Conformance IEC 61999-1-4 Class 1, IEC 61000-4-30 Class A or B depending on measurement function, IEEE519, IEEE1159, IEEE1459 and EN50160
Internal Memory Capacity At least 2GB
Maximum Recording Period At least 31 days
Maximum Number of Events Limited only by the size of the internal memory
Power Requirements 100 to 240V RMS ±10%, 47-63Hz, 40W
Input Specifications
Input Channels Voltage: 4 channels, AC/DC
Current: 5 channels
Voltage Channels Input resistance: 2MΩ
Input capacitance: < 20pF
Voltage and Current Measurements
Voltage Measurement Range AC Voltage: 1000V RMS ±10% over range
DC Voltage: ±1000V +10% over range
Voltage Crest Factor 3 or less
Current Measurement Range Depends on current probe used
Current Crest Factor 4 or less

What's included with the Fluke 1750/ET

  • 1750-ET Power Quality Recorder
  • Windows 10 Tablet
  • 4 x 400A current probes
  • 5 x Test leads and clips
  • SD memory card
  • Fluke Power View and Fluke Power Analyze software
  • Power cord with international plug set
  • Ethernet cable
  • Color localization set
  • Printed Getting Started manual
  • Product CD with software and user manual PDF
  • CS 1750/1760 Rugged transit carrying case
  • 1 Year Warranty


Click on a category to view a selection of compatible accessories with the Fluke 1750/ET Power Quality Recorder with Windows 10 Tablet.

Fluke WC100 multi color wire clips WC100
For use with Fluke 430-Series power quality analyzers.
$36.00 CAD

Learn More

Fluke 3140R Current Clamp 3140R
400A AC clamp-on current probe for Fluke 1750 power quality recorder. Measure from 2-400A with 2% accuracy. Jaw opening 1.25 ".
$986.40 CAD

was $1,096.00

Learn More
