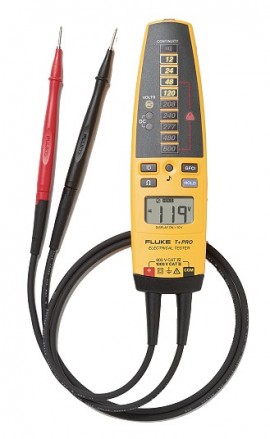

Fluke T+PRO CAN Electrical Tester

Model: T+PRO/CAN

Backlit LCD. Features 4 ways to indicate voltage and continuity. GFCI trip button, resistance, and phase rotation. CAT IV 600V, CAT III 1000V. Canadian voltage indicator.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke T+Pro Electrical Tester

Model: TPLUSPRO | Order No: T+PRO

Helps electricians and technicians work safer by indicating the presence of voltage even when the batteries are dead due to its solid-state design. Additional functionality such as a GFCI trip, easy to read LCD screen, resistance measurement up to 9.99 kOhms and a flashlight.

Learn More

Fluke T+PRO/CAN Offers

Has your solenoid tester ever over-heated, melted, burned out, or worse?
The new, full-featured Fluke T+PRO Electrical Tester offers all the advantages of a traditional solenoid tester, with added functionality, but none of the typical drawbacks.
The Fluke T+PRO Electrical Tester is the ideal, full-featured tester for the demanding commercial and industrial electrician. With voltage measurement, continuity, built-in flashlights, GFCI trip capability, and Fluke's legendary ruggedness and reliability, the tester is an excellent choice for most residential, commercial, and industrial applications.
The Fluke T+PRO Electrical Tester comes with a rotary field indicator for troubleshooting three-phase systems, resistance measurement to 9.99 KOhms, as well as a backlit LCD display for easier viewing.
The Fluke T+PRO helps electricians comply with NPFA 70E Article 110.9 (A), which states that "Test equipment shall be rated for circuits and equipment to which they will be connected. The T+PRO Electrical Tester carries a CAT IV 600 V and CAT III 1000 V rating, appropriate for most environments where electricians work.
Applications:

Industrial electricians, commercial electricians, particularly those who work on low-voltage lighting.
Front-line electrical troubleshooting
AC/DC voltage measurement
Continuity testing
Testing GFCI circuits
Resistance measurement
Checking the rotation of electrical motors
Checking the proper set up of 3-phase systems
Troubleshooting low-voltage lighting

Fluke T+PRO/CAN Specifications

Specifications

Temperature

Operating	-10 °C to 55 °C (14 °F to 131 °F)
Storage	-30 °C to 60 °C (-22 °F to 140 °F)

Relative humidity

	0 °C to 30 °C (32 °F to 86 °F): 90 %
	30 °C to 40 °C (86 °F to 104 °F): 75 %
	40 °C to 50 °C (104 °F to 122 °F): 45 %

Altitude

Operating	2,000 m (approx. 6,561.6 ft)
Storage	10,000 m (approx. 32,808.4 ft)

Battery type/life

AAA (2); 40 hours

Shock, vibration

Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument

Safety

	ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV
	Compliance to NFPA 70E*

AC Bandwidth

45 Hz to 66 Hz

Maximum working voltage

1000 V ac/dc

Maximum measurable voltage

600 V ac/dc

Duty cycle

	Indefinitely for voltages up to 240 V
	For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off
	For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s

Voltage hazard LED

LEDs turn on at voltages > 30 V ac/dc ± 35 %

LED voltage indication levels for Canadian version

12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 347 V, 480 V, 600 V

LEDs

LEDs turn on between 90 % and 100 % of the indicated voltage on the LED, except for the 12 V LED which turns on between 50 % and 100 %

LCD Accuracy on T+PRO only

AC voltage	± (3 % rdg + 2 digits)
DC voltage	± (2 % rdg + 2 digits)
Resistance	± (5 % rdg + 3 digits)

LCD Resolution

	0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V
	0.01 kΩ for resistance measurement (For T+PRO Only)

GFCI Test current

100 V - 150 V @ 6 mA - 9 mA ac, 150 V - 240 V < 12 mA

Standard input test current

< 5 mA

Size (HxWxL)

1.3 in x 2.15 in x 7.6 in (3.3 cm x 5.46 cm x 19.3 cm )

Weight

9.9 oz (0.28 kg)

Click here for complete specifications on the Fluke T+PRO/CAN

What's included with the Fluke T+PRO/CAN

User manual
Test lead wrap
Fluke TP2 test probes
2 AAA batteries
