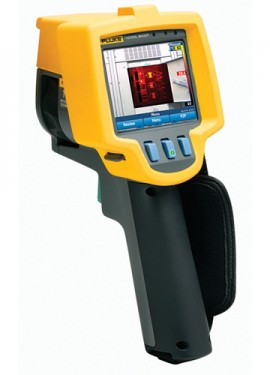

| Detailed specifications |
| Temperature |
| Temperature measurement range (not calibrated below -10°C) | -20°C to +350°C (-4°F to + 662°F) (two ranges) | | Accuracy | ± 2°C or 2 % (whichever is greater) | | On-screen emissivity correction | Yes | |
| Temperature measurement range (not calibrated below -10°C) |
-20°C to +350°C (-4°F to + 662°F) (two ranges) |
| Accuracy |
± 2°C or 2 % (whichever is greater) |
| On-screen emissivity correction |
Yes |
| Imaging performance |
| Field of view | 23° x 17° | | Spatial resolution (IFOV) | 2.5 mRad | | Minimum focus distance | Thermal lens: 15 cm (6 in)
Visible (visual) light lens: 46 cm (18 in) | | Focus | Manual | | Image frequency | 9 Hz refresh rate | | Detector type | 160 X 120 focal plane array, uncooled microbolometer | | Infrared lens type | 20 mm F = 0.8 lens | | Thermal sensitivity (NETD) | ≤ 0.1°C at 30°C (100 mK) | | Infrared spectral band | 7.5 μm to 14 μm | | Visual camera | 640 x 480 resolution | |
| Field of view |
23° x 17° |
| Spatial resolution (IFOV) |
2.5 mRad |
| Minimum focus distance |
Thermal lens: 15 cm (6 in)
Visible (visual) light lens: 46 cm (18 in) |
| Focus |
Manual |
| Image frequency |
9 Hz refresh rate |
| Detector type |
160 X 120 focal plane array, uncooled microbolometer |
| Infrared lens type |
20 mm F = 0.8 lens |
| Thermal sensitivity (NETD) |
≤ 0.1°C at 30°C (100 mK) |
| Infrared spectral band |
7.5 μm to 14 μm |
| Visual camera |
640 x 480 resolution |
| Image presentation |
| Palettes | Ironbow, blue-red, high contrast, amber, hot metal, grey | | Level and span | Smooth auto-scaling and manual scaling of level and span | | Minimum span (in manual mode) | 2.5°C (4.5°F) | | Minimum span (in auto mode) | 5°C (9°F) | | IR-Fusion® information | Full infrared with MAX, MID, or MIN automatic blending; and picture-in-picture with MAX, MID, or MIN automatic blending (Visual and IR blending) | | Picture-In-Picture (PIP) | Three levels of on-screen IR blending displayed in center 320 x 240 pixels | | Full screen (PIP off) | Three levels of on-screen IR blending displayed in center 640 x 480 LCD | |
| Palettes |
Ironbow, blue-red, high contrast, amber, hot metal, grey |
| Level and span |
Smooth auto-scaling and manual scaling of level and span |
| Minimum span (in manual mode) |
2.5°C (4.5°F) |
| Minimum span (in auto mode) |
5°C (9°F) |
| IR-Fusion® information |
Full infrared with MAX, MID, or MIN automatic blending; and picture-in-picture with MAX, MID, or MIN automatic blending (Visual and IR blending) |
| Picture-In-Picture (PIP) |
Three levels of on-screen IR blending displayed in center 320 x 240 pixels |
| Full screen (PIP off) |
Three levels of on-screen IR blending displayed in center 640 x 480 LCD |
| Voice annotation |
| Voice annotation | 60 seconds maximum recording time per image |
|
| Voice annotation |
60 seconds maximum recording time per image |
| Image and data storage |
| Storage medium | SD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations or 3000 basic (.bmp) IR images) | | File formats | Non-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometric (.bmp) files | | Export file formats w/SmartView™ software | JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF, and EMF | |
| Storage medium |
SD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations or 3000 basic (.bmp) IR images) |
| File formats |
Non-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometric (.bmp) files |
| Export file formats w/SmartView™ software |
JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF, and EMF |
| General specifications |
| Temperature |
| Operating | -10°C to 50°C (14°F to 122°F) | | Storage | -20°C to +50°C (-4°F to 122°F) without batteries | |
| Operating |
-10°C to 50°C (14°F to 122°F) |
| Storage |
-20°C to +50°C (-4°F to 122°F) without batteries |
| Relative humidity |
| 10 % to 90 % non-condensing |
|
| |
10 % to 90 % non-condensing |
| Display |
| 9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto) |
|
| |
9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto) |
| Controls and adjustments |
| User selectable temperature scale (°C/°F) |
| Language selection |
| Time/Date set | |
| |
User selectable temperature scale (°C/°F) |
| |
Language selection |
| |
Time/Date set |
| Software |
| SmartView™ full analysis and reporting software included |
|
| |
SmartView™ full analysis and reporting software included |
| Power |
| Battery | Internal rechargeable battery pack (included) | | Battery life | Three to four hours continuous use (assumes 50 % brightness of LCD) | | Battery charge time using ac adapter/charger and dc car charger | Two hours for full charge | |
| Battery |
Internal rechargeable battery pack (included) |
| Battery life |
Three to four hours continuous use (assumes 50 % brightness of LCD) |
| Battery charge time using ac adapter/charger and dc car charger |
Two hours for full charge |
| AC operation/charging |
| AC adapter/charger (110 Vac to 220 Vac, 50 Hz to 60 Hz). Charges battery while imager is operating. Universal ac mains adapters included. |
|
| |
AC adapter/charger (110 Vac to 220 Vac, 50 Hz to 60 Hz). Charges battery while imager is operating. Universal ac mains adapters included. |
| Power saving |
| Sleep mode activated after 5 minutes of inactivity, automatic power off after 20 minutes of inactivity |
|
| |
Sleep mode activated after 5 minutes of inactivity, automatic power off after 20 minutes of inactivity |
| Safety standards |
| CE Directive | IEC/EN 61010-1 2nd Edition Pollution Degree 2 |
|
| CE Directive |
IEC/EN 61010-1 2nd Edition Pollution Degree 2 |
| Electromagnetic compatibility |
| EMC directive | EN61326-1 | | C-Tick | IEC/EN 61326 | | US FCC | CFR 47, Part 15 Class A | |
| EMC directive |
EN61326-1 |
| C-Tick |
IEC/EN 61326 |
| US FCC |
CFR 47, Part 15 Class A |
| Vibration |
|
| |
2 G, IEC 68-2-29 |
| Shock |
| 25 G, IEC 68-2-29 {2 m (6.5 ft) drop, 5 sides} |
|
| |
25 G, IEC 68-2-29 {2 m (6.5 ft) drop, 5 sides} |
| Dimensions (HxWxL) |
| 0.27 m x 0.13 m x 0.15 m (10.5 in x 5 in x 6 in) |
|
| |
0.27 m x 0.13 m x 0.15 m (10.5 in x 5 in x 6 in) |
| Weight |
|
| |
1.2 kg (2.65 lb) |
| IP rating |
|
| |
IP54 |
| Warranty |
|
| |
Two-years |
| Calibration cycle |
| Two-years (assumes normal operation and normal aging) |
|
| |
Two-years (assumes normal operation and normal aging) |
| Supported languages |
| English, Italian, German, Spanish, French, Russian, Portuguese, Swedish, Turkish, Czech, Polish, Finnish, Simplified Chinese, Traditional Chinese, Korean, and Japanese |
|
| |
English, Italian, German, Spanish, French, Russian, Portuguese, Swedish, Turkish, Czech, Polish, Finnish, Simplified Chinese, Traditional Chinese, Korean, and Japanese |
