Fluke i800 AC Current Clamp Probe

Model: I800

Be the first to review this product

Extends current capability of a DMM to 800A AC.

Traceable Calibration Certificate for your I800 AC Current Clamp Probe

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 CAD

$518.01 CAD

was $635.59

Availability:
2 to 3 Weeks

Fluke I800 Offers

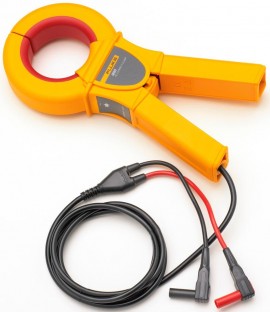

The Fluke i800 AC Current Clamp Probe is a clamp-on AC current probe designed to extend the current measuring capability of a digital multimeter to 800 amperes AC.
The clamp is compatible with a DMM that accepts 4mm shrouded banana plugs and has an AC milliamp range.
Features:

Measures AC current from 100mA to 800 A rms
30 Hz to 10 kHz frequency range
CAT III 600 V rating
Accepts up to 54 mm (2.1 in) diameter conductor size
1000:1 conversion factor for easy calculation
Rugged positive action design
Weight : .85 kg (1.87 lb)
Dimensions (L x W x H) : 11.8 x 26.67 x 7.6 cm (4.6 x 10.5 x 3 in)

Fluke I800 Specifications

Specifications

Nominal current range

800 A rms

Continuous current range

100 mA to 800 A rms

Maximum Non-Destrucive Current

1500 A rms (50/60 Hz)

Lowest measurable current

100 mA

Basic accuracy

±1% of reading

Useable frequency

30 Hz - 10 kHz (-3dB)

Output level(s)

1 mA / A

Safety Specifications

Safety

CAT III 600 V

Maximum voltage

600 V ac rms or dc

Mechanical & General Specifications

Warranty

1 year

Maximum conductor diameter

Shrouded banana plugs

What's included with the Fluke I800

Fluke i800 AC Current Clamp Probe
