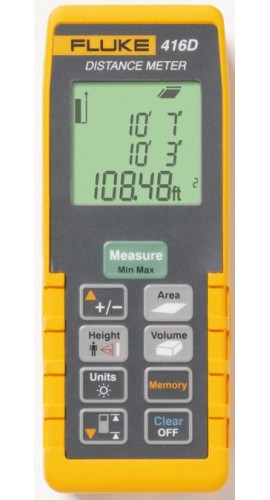

Fluke 416D Laser Distance Meter

Model: 416D

Features a maximum measuring distance of 60m/200ft, an accuracy of 1/16" (1.5 mm), and can take 5000 measurements on a single battery life. Measures Full Pythagoras.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

REED R8010 Laser Distance Meter, 328' (100m)

Model: R8010

Dust and splash-proof (IP54), designed for one-handed operation.

The replacement product is only available on our affiliate ITM.com website. Don't worry your cart and information will be brought over.

Go to ITM.com

Specifications
Included

Fluke 416D Specifications

Technical specifications

Range (for extended distances, use a target plate)

0.05 m to 60 m

(0.16 ft to 200 ft)

Measuring accuracy

± 1.5 mm (± 0.059 in)

Units displayed

00.000 m, 000 ft 00 in 1/8, 0000 in 1/8

Laser class

Class II

Laser type

635 nm, < 1 mW

Automatic power off

after 180 seconds

Continuous measurement

Yes

Addition/subtraction

Yes

Battery life

up to 5,000 measurements

LCD illumination

Yes

Data locations

Min/Max

Yes

Audible feedback

Yes

Pythagoras (Indirect measurement)

Full

Ingress protection

IP54

Dimensions

135 mm x 46 mm x 31 mm

(5.31 in x 1.81 in x 1.22 in)

Weight

110 g (3.88 oz)

Temperature range

Storage: -25 °C to 70 °C (-13 °F to 158 °F)

Operation: 0 °C to 40 °C (32 °F to 104 °F)

Operating altitude
(ISO 9022)

up to 3500 m

Storage humidity
(at 35 °C)

maximum 85 % for 24 h

Batteries

AAA (2)

** In favorable conditions (optimal target surface, room temperature) up to 10 m (33 ft). In unfavorable conditions, such as intensive sunshine, very weakly reflecting target surface, or large temperature fluctuations, the deviation over distances 10 m (33 ft) can increase by approx. ± 0.15 mm/m (± 0.0018 in/ft).

Click here for complete specifications on the Fluke 416D

What's included with the Fluke 416D

Two AAA batteries
Users manual on CD
Quick start guide
Nylon carrying case
Two-year warranty
