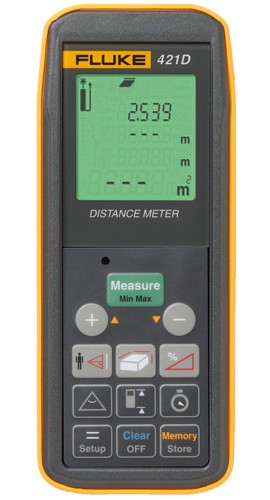

Fluke 421D Laser Distance Meter

Model: 421D

Features a maximum measuring distance of 100m/330ft, an accuracy of 1/16" (1.5 mm) and can take 5,000 measurements on a single battery life. Measures Enhanced Pythagoras.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 424D Laser Distance Meter

Model: 424D

This professional-grade laser distance meter is fast and easy to use improving accuracy and reducing measurement errors.

Learn More

Specifications
Included

Fluke 421D Specifications

Technical specifications

Range (for extended distances, use a target plate)*

0.05 m to 100 m

(0.16 ft to 330 ft)

Measuring accuracy**

± 1.5 mm (0.059 in)

Units displayed

00.000 m, 000 ft 00 in 1/16, 0000 in 1/16

Laser class

Class II

Laser type

635 nm, < 1 mW

Automatic power off

after 180 seconds

Continuous measurement

Yes

Addition/subtraction

Yes

Battery life

up to 5,000 measurements

LCD illumination

Yes

Data locations

Min/Max

Yes

Audible feedback

Yes

Pythagoras (Indirect measurement)

Full

Ingress protection

IP54

Dimensions

127 mm x 52 mm x 29 mm

(5.00 in x 2.06 in x 1.13 in)

Weight

Fluke 421D

125 g (4.40 oz)

Temperature range

Storage: -25 °C to 70 °C (-13 °F to 158 °F)

Operation: 0 °C to 40 °C (32 °F to 104 °F)

Operating altitude
(ISO 9022)

up to 3500 m

Storage humidity
(at 35 °C)

maximum 85 % for 24 h

Batteries

AAA (2)

* In favorable conditions (optimal target surface, room temperature) up to 10 m (33 ft). In unfavorable conditions, such as intensive sunshine, very weakly reflecting target surface, or large temperature fluctuations, measuring accuracy may deteriorate to approx. ± 0.25 mm/m (± 0.003 in/ft) for distances above 10 m (33 ft).

** In favorable conditions (optimal target surface, room tem- perature) up to 10 m (33 ft). In unfavorable conditions, such as intensive sunshine, very weakly reflecting target surface, or large temperature fluc- tuations, the deviation over distances 10 m (33 ft) can increase by approx. ± 0.15 mm/m (± 0.0018 in/ft).

What's included with the Fluke 421D

2 AAA batteries
Users Manual on CD
Quick Start Guide
Nylon Carrying Case
Wrist Strap
Two Year Warranty
