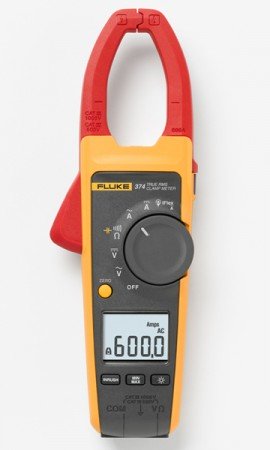

Fluke 374 True-RMS Clamp Meter, 600A AC/DC

Model: 374

True RMS, 600A AC/DC, 600V AC, Continuity, MIN/MAX/AVG. Works with iFlex flexible current probes.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 374 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V-

Fluke 374 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V

Model: 374 FC | Order No: 374FC

Measure AC and DC current to 600 A with the fixed jaw clamp on this True RMS clamp meter. This unit also measures AC and DC voltage to 1000 V and resistance to 6000 Ω, and enables you to troubleshoot non-linear signals. Additionally, this unit is Fluke Connect compatible.

Learn More


The Fluke 374 True-RMS Clamp Meter

The Fluke 374 Clamp Meter offers improved performance perfect for a wide range of current measurement situations. With true-rms ac voltage and current measurements, the Fluke 374 can read up to 600 V and 600 A in both ac and dc modes with the fixed jaw.
Additionally, the Fluke 374 is compatible with the new iFlex™ flexible current probe (sold separately) which expands the measurement range to 2500 A ac and provides increased display flexibility, ability to measure around awkward sized conductors and improved wire access.

Fluke 374 Measurement Capability:

  • 600 A ac and dc current measurement with fixed jaw
  • 2500 A ac current measurement with iFlex™ flexible current probe (sold separately)
  • 600 V ac and dc voltage measurement
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Resistance measurement to 6000 Ω with continuity detection
  • Min, max, average and inrush recording to capture variations automatically
  • 1000 µF capacitance measurement

Key Features of the Fluke 374:

  • iFlex™ flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
  • CAT IV 600V, CAT III 1000 V safety rating
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing personal protective equipment
  • Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to changeswitch positions while taking a measurement
  • Three-year warranty

Optional use with the 18" Flexible Current Probe

The Fluke 374 can be used with the Fluke iFlex i2500-18flexible current probe which expands the measurement range to 2500 A AC while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.

The Fluke 374 is part of Fluke's new Clamp Meter line that includes: 381, 376, 375, 373 & 365.
Replacing the Fluke 336
The Fluke 374 clamp meter is the direct replacement for the Fluke 336 clamp meter. The Fluke 374 includes all the features of the 336, but also includes:

  • CAT IV 600, CAT III 1000 V
  • optional iFlex 2500 A AC
  • 1000 μF
  • Min/Max/Avg

Compare the newest Fluke Clamp Meter Models:

Note: The Fluke 375 clamp meter is the direct replacement for the Fluke 336 clamp meter.

Fluke-365 Fluke-373 Fluke-374 Fluke-375 Fluke-376 Fluke-381
Measure ac current 200.0 A 600.0 A 600.0 A 600.0 A 999.9 A 999.9 A
Measure ac current via iFlex 2500 A 2500 A 2500 A 2500 A
Measure ac voltage 600.0 V 600.0 V 600.0 V 600.0 V 1000.0 V 1000.0 V
Measure continuity ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω
Measure dc current 200.0 A 600.0 A 600.0 A 999.9 A 999.9 A
Measure dc voltage 600.0 V 600.0 V 600.0 V 1000.0 V 1000.0 V
Measure resistance 6,000 Ω 6,000 Ω 6,000 Ω 60k Ω 60k Ω 60k Ω
Measure frequency 500 Hz 500 Hz 500 Hz
Measure inrush 100 mS 100 mS 100 mS 100 mS
Work in poorly lit areas Backlight Backlight Backlight Backlight Backlight Backlight
Measure non-linear loads True-rms True-rms True-rms True-rms True-rms True-rms

Fluke 374 Specifications

Fluke 374 Clamp Meter Specifications
Diameter of measurable conductor01.3" or 34 mm max
Operating temperature-14 to 122°F (-10 to 50°C)
Storage Temperature-40 to 140°F (-40 to 60°C)
Operating Humidity< 90% @ 10 to 30°C, < 75% @ 30 to 40°C
Operating Altitude0 to 3000 m
Size246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
Weight388g, (14 oz.)
Temperature Coefficient0.01% °C
(<18°C or > 28°C)
WarrantyThree years for electronics
One year for cable and clamp assembly
Click here for complete specifications on the Fluke 374

What's included with the Fluke 374

  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • TL75 test leads
  • Two AA Alkaline batteries
