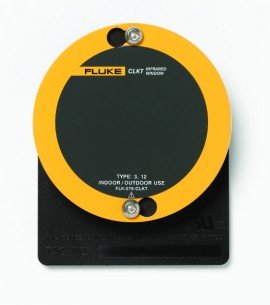

Model: FLK-100-ML
4" (100Mm) M-Range IR Window. Must Be Ordered In Multiples Of 10.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
| Optic data | |||||||
| Crystal insert diameter |
|
||||||
| 3460346 FLK-050-CLKT | 50 mm (1.97 in) | ||||||
| 3460387 FLK-075-CLKT | 75 mm (2.96 in) | ||||||
| 3460439 FLK-100-CLKT | 100 mm (3.94 in) | ||||||
| Viewing aperture diameter |
|
||||||
| 3460346 FLK-050-CLKT | 43 mm (1.7 in) | ||||||
| 3460387 FLK-075-CLKT | 68 mm (2.7 in) | ||||||
| 3460439 FLK-100-CLKT | 89 mm (3.5 in) | ||||||
| Viewing aperture area |
|
||||||
| 3460346 FLK-050-CLKT | 1452 mm2 (2.25 sq in) | ||||||
| 3460387 FLK-075-CLKT | 3632 mm2 (5.63 sq in) | ||||||
| 3460439 FLK-100-CLKT | 6322 mm2 (9.79 sq in) | ||||||
| Thickness |
|
||||||
| 3460346 FLK-050-CLKT | 2 mm (0.08 in) | ||||||
| 3460387 FLK-075-CLKT | 2 mm (0.08 in) | ||||||
| 3460439 FLK-100-CLKT | 4 mm (0.16 in) | ||||||
| CLIRVU coating |
|
||||||
| 3460346 FLK-050-CLKT | Yes | ||||||
| 3460387 FLK-075-CLKT | Yes | ||||||
| 3460439 FLK-100-CLKT | Yes | ||||||
| Shortwave IR capable |
|
||||||
| 3460346 FLK-050-CLKT | Yes | ||||||
| 3460387 FLK-075-CLKT | Yes | ||||||
| 3460439 FLK-100-CLKT | Yes | ||||||
| Midwave IR capable |
|
||||||
| 3460346 FLK-050-CLKT | Yes | ||||||
| 3460387 FLK-075-CLKT | Yes | ||||||
| 3460439 FLK-100-CLKT | Yes | ||||||
| Longwave IR capable |
|
||||||
| 3460346 FLK-050-CLKT | Yes | ||||||
| 3460387 FLK-075-CLKT | Yes | ||||||
| 3460439 FLK-100-CLKT | Yes | ||||||
| Ultraviolet (UV) capable |
|
||||||
| 3460346 FLK-050-CLKT | Yes | ||||||
| 3460387 FLK-075-CLKT | Yes | ||||||
| 3460439 FLK-100-CLKT | Yes | ||||||
| Visual capable |
|
||||||
| 3460346 FLK-050-CLKT | Yes | ||||||
| 3460387 FLK-075-CLKT | Yes | ||||||
| 3460439 FLK-100-CLKT | Yes | ||||||
| Fusion capable |
|
||||||
| 3460346 FLK-050-CLKT | Yes | ||||||
| 3460387 FLK-075-CLKT | Yes | ||||||
| 3460439 FLK-100-CLKT | Yes | ||||||
| Underwriters Laboratories (UL) recognized | Yes | ||||||
| UL50 environmental |
|
||||||
| Type 3/12 | |||||||
| UL746C |
|
||||||
| N/A (Polymer Free) | |||||||
| UL94 |
|
||||||
| N/A (Polymer Free) | |||||||
| Canadian Standards Association (CSA) approval | Yes | ||||||
| Environmental |
|
||||||
| Type 3/12 | |||||||
| KEMA (Arc-Testing) | |||||||
| ANSI C37.20.7 |
|
||||||
| 50 kA for 30 cycles @60 Hz | |||||||
| EEMACS 14-1 Type-B |
|
||||||
| 40 kA for 30 cycles @60 Hz | |||||||
| ASTA (Arc-Testing) | |||||||
| IEC 62271 |
|
||||||
| 20 kA for 5 cycles @50 Hz | |||||||
| TUV | |||||||
| Cyclic humidity withstand |
|
||||||
| Yes | |||||||
| Vibration withstand |
|
||||||
| Yes | |||||||
| NEMKO | |||||||
| Resistance of insulating materials to 100° |
|
||||||
| Yes | |||||||
| Resistance of insulating material to ball pressure (Brinell) |
|
||||||
| Yes | |||||||
| Glow-wire test 650°C |
|
||||||
| Yes | |||||||
| Lloyds Register | |||||||
| Up to 11 kV marine switchgear, indoor or outdoor |
|
||||||
| Yes | |||||||
Click on a category to view a selection of compatible accessories with the Fluke FLK-100-ML.
