Model: Ti29-60Hz
For Electrical/Industrial applications. Features a 280x210 60Hz infrared sensor with 0.05°C thermal sensitivity and IR Fusion image blending. Optional field upgradeable lenses.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

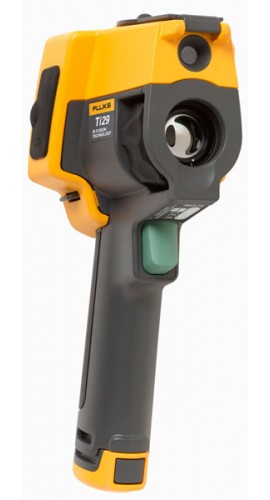

The all new Fluke Ti29 thermal imager provides high-performance for any budget. Based on the award-winning Fluke Ti32, the Fluke Ti29 delivers proven, practical performance for a wide range of diagnostic applications (industrial, electrical and process control) and its designed to work in even the harshest environments providing superior image quality with a one-handed, easy-to-use interface.
The Fluke Ti29 features a 280 x 210 IR sensor, a temperature range of -20 °C to +600 °C (-4 °F to +1112 °F) with an temperature measurement accuracy of ± 2 °C or 2 % (at 25 °C nominal, whichever is greater).
Fluke thermal imagers make it so simple to capture images and analyze data right out of the box!
Industry-leading thermal sensitivity and spatial resolution combined with a high definition display, creates the sharpest images in the industry.
With just a push of your thumb, go from one-handed manual smart focus to adding picture-in-picture and even add voice comments.
Before a Fluke goes into your hands, we drop it from ours. Only Fluke thermal imagers are designed from the inside out to withstand a 6.5 ft drop.
(Picture-in-picture and auto blending)
Precision visible and IR image alignment allows Fluke to offer the only on-camera blended infrared and visible image to better diagnose issues.
Interchangeable wide-angle and IR-Fusion compatible telephoto lenses to cover any application.
| Temperature measurement range (no calibrated below -10 °C) | -20 °C to +600 °C (-4 °F to +1112 °F) |
| Temperature measurement accuracy | +/- 2 C or 2 % (at 25 C nominal, whichever is greater) |
| Emissivity correction, reflected background temperature compensation, transmission correction | Yes |
| Image capture frequency | 60 Hz and 9 Hz models |
| Detector type | Focal Plane Array, uncooled Microbolometer, 280 x 210 pixels |
| Thermal sensitivity (NETD) | < 0.05 C at 30 C target temp. (50mK) |
| File formats (on imager) | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) |
| Palettes | 8 standard, 8 Ultra Contrast |
| Color alarms (temperature alarms) | High-temperature alarm (user-selectable) |
| Batteries | Two lithium-ion rechargeable smart battery packs |
| Battery life | 4+ hours continuous use per battery pack |
| Drop test | 2 meter (6.5 feet) with standard lens |
Fluke SmartView® software is included with all Fluke Thermal Imagers. This powerful software provides a suite of tools that views, optimizes, annotates, and analyzes IR images. It also generates fully customizable and professional-looking reports with the push of a button or in a few easy steps. The Fluke SmartView software is not only easy to use for customers with basic needs, but it also delivers the performance that advanced users require for detailed analysis and reporting.
Click on a category to view a selection of compatible accessories with the Fluke Ti29 Thermal Imager.
