Fluke 107 ESP Palm-Sized Digital Multimeter, CAT III, 600 V-
Downloads: datasheet manual

Ask an Expert

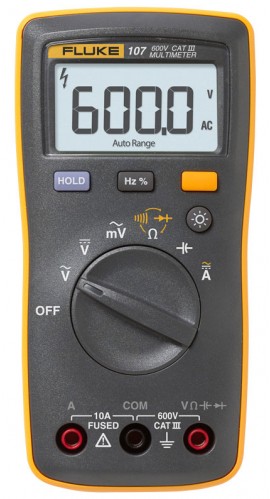

Fluke 107 ESP Palm-Sized Digital Multimeter, CAT III, 600 V

Model: 107 ESP | Order No: 107

Comes in a compact, rugged, ergonomic design and is easy-to-use. This palm-sized digital multimeter is ideal for troubleshooting and is small enough to fit in a shirt pocket or work bag.

Traceable Calibration Certificate for your 107 ESP Palm-Sized Digital Multimeter

$183.69 CAD

was $225.39

Availability:
66 in Stock


Fluke 107 ESP Offers

Features

  • Enabled with current and voltage measurement functions, in a compact size
  • Measures resistance & continuity to check for broken wires
  • Data hold and backlit display to keep you working safe and fast
  • Ergonomic and rugged
  • Comfortable grip, only weighs 200g and easy to carry
  • Rugged enclosure and 3.3' (1 m) drop test
  • Full-parameter automatic range test, which is convenient and quick to test; at the same time, it reduces the number of rotations of the wave plate and prolongs the life of the instrument
  • 6000-word large screen LCD backlight display
  • Battery powered, automatic power save mode
  • Data retention feature makes it easier to read measurement results
  • Compliant with IEC61010-1 CATIII 600V overvoltage protection safety standard

Complete test functions:

  • AC and DC voltage measurement
  • AC and DC current measurement
  • Resistance measurement
  • Capacitance measurement
  • Diode measurement
  • Frequency and duty cycle test and other functions to meet basic electrical maintenance, electrical measurement, and electronic measurement applications

Applications

  • Basic electrical maintenance
  • Electrical measurement
  • Electronic measurement

Fluke 107 ESP Specifications

Electrical Specifications
AC Volts (40 to 500 Hz) Range: 6, 60, 600 V
Resolution: 0.001, 0.01, 0.1 V
Accuracy: 1.0% + 3
DC Volts Range: 6, 60, 600 V
Resolution: 0.001, 0.01, 0.1 V
Accuracy: 0.5% + 3
AC Millivolts Range: 600 mV
Resolution: 0.1 mV
Accuracy: 3.0% + 3
Diode Test Range: 2 V
Resolution: 0.001 V
Accuracy: 10%
Resistance (Ohms) Range: 400 Ω, 4, 40, 400 kΩ, 4, 40 MΩ
Resolution: 0.1 Ω, 0.001, 0.01, 0.1 kΩ, 0.001, 0.01 MΩ
Accuracy: 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 1.5% + 3
Capacitance Range: 50, 500 nF, 5, 50, 500, 1000 μF
Resolution: 0.01, 0.1 nF, 0.001, 0.01, 0.1, 1μF
Accuracy: 2% + 5, 2% + 5, 5% + 5, 5% + 5, 5% + 5, 5% + 5
Frequency (10 Hz to 100 kHz) Range: 50, 500 Hz, 5, 50, 100 kHz
Resolution: 0.01, 0.1 Hz, 0.001, 0.01, 0.1 kHz
Accuracy: 0.1% + 3
Duty Cycle Range: 0.1 to 99.9%
Resolution: 0.1%
Accuracy: 1% typical
AC Current (40 to 200 Hz) Range: 4, 10 A
Resolution: 0.001, 0.01 A
Accuracy: 1.5% + 3
DC Current (40 to 200 Hz) Range: 4, 10 A
Resolution: 0.001, 0.01 A
Accuracy: 1.5% + 3
Backlight Accuracy: Yes
AC Volts Overload protection: 600 V
Input impedance (nominal): >10 MΩ, <100 pF
Common mode rejection ratio: >60 dB at DC, 50 or 60 Hz
AC Millivolts Overload protection: 600 mV
Input impedance (nominal): >1 M, <100 pF
Common mode rejection ratio: >80 dB at 50 or 60 Hz
DC Volts Overload protection: 600 V
Input impedance (nominal): >10 MΩ, <100 pF
Common mode rejection ratio: >100 dB at DC, 50 or 60 Hz
Normal mode rejection ratio: >45 dB at 50 or 60 Hz
General Specifications
Maximum Voltage Between Any Terminal and Earth Ground 600 V
Display (LCD) 6000 counts, updates 3/sec
Battery Type 2 x AAA Batteries, NEDA 24A, IEC LR03
Battery Life 200 hours minimum
Temperature Operating: 32 to 104°F (0 to 40°C)
Storage: -22 to 140°F (-30 to 60°C)
Operating Humidity: Non-condensing when <50°F (<10°C) ≤90% at 50 to 86°F (10 to 30°C)
≤75% at 50 to 104°F (30 to 40°C)
Operating Humidity, 40 MΩ Range ≤80% at 50 to 86°F (10 to 30°C)
≤70% at 50 to 104°F (30 to 40°C)
Altitude Operating: 6561.7' (2000 m)
Storage: 39,370.1' (12,000 m)
Temperature Coefficient 0.1 X (specified accuracy)/°C (<18 or >28°C)
Fuse Protection for Current Inputs 11 A, 1000 V fast fuse
Dimensions 5.6 x 2.7 x 1.1" (142 x 69 x 28 mm)
Weight 0.44 lbs (200 g)
IP Rating IEC 60529: IP40
Safety IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment IEC 61326-1: portable
Click here for complete specifications on the Fluke 107 ESP

What's included with the Fluke 107 ESP

  • Multimeter
  • Test Lead Set
  • Magnetic Multi-Purpose Lanyard
  • 2 x AAA Batteries (Installed)
