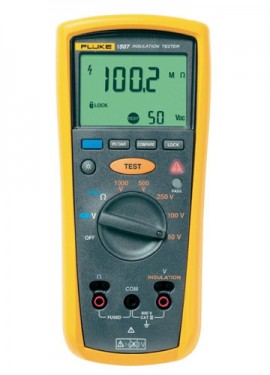

Fluke 1507 Insulation Tester, 600V RMS or DC

Model: 1507

Save time with the automatic calculation of polarization index and dielectric absorption ratio. Capable of reading resistance from 0.01 Ω to 20.00 kΩ.

to your 1507

$739.80 CAD

was $822.00

Availability: 10+ in Stock
Need a quote?

Fluke 1507 Offers

The Fluke 1507 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications. With features, like the remote probe save both time and money when performing tests.


  • Make repetitive tests simple and easy with the Compare (Pass/Fail) function
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • Auto-discharge of capacitive voltage for added user protection
  • Save battery power with auto power off
  • Read measurements easily with large, backlit display
  • CAT IV 600V overvoltage category rating for added user protection
  • Remote probe, test leads, probes and alligator clips included with each tester
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests


  • Industrial
  • Maintenance & Repair
  • Test & Measurement

Fluke 1507 Specifications

AC/DC Voltage Specifications
Range 600.0V
Resolution 0.1V
Accuracy 50 Hz to 400 Hz: ±(2% of rdg + 3 digits)
Input Impedance 3MΩ (nominal), < 100pF
Common Mode Rejection Ratio (1kΩ unbalanced) > 60dB at DC, 50 or 60Hz
Overload Protection 600V RMS or DC
Earth Bond Resistance Specifications
Range 20.00Ω to 20.00kΩ
Resolution 0.01Ω to 0.01kΩ
Accuracy ±(1.5% + 3 digits)
Overload Protection 2V RMS or DC
Open Circuit Test Voltage > 4.0V, < 8V
Short Circuit Current > 200.0mA
Insulation Specifications
Output Voltages 50 to 1000V (0 to 20%)
Test Currents 1mA at 50kΩ to 1MΩ
Measurement Range 0.01MΩ to 2000MΩ
Test Voltages 50V, 100V, 250V, 500V, 1000V
Test Voltage Accuracy +20%, -0%
Short-Circuit Test Current 1mA nominal
Auto Discharge Discharge time < 0.5 second for C = 1µF or less
Live Circuit Detection Inhibit test if terminal voltage > 30V prior to initialization of test
Maximum Capacitive Load Operable with up to 1µF load
Click here for complete specifications on the Fluke 1507

What's included with the Fluke 1507

  • Fluke 1507 Insulation Tester
  • Remote probe
  • Test leads
  • Test probes
  • Alligator clips
  • User documentation
