Fluke 1523-P2 Reference Thermometer 5628 PRT Bundle

Model: 1523-P2 | Order No: 1523-P2-156

High accuracy single-channel thermometer that measures, graphs and records three sensor types. Bundled with the 5628 PRT Temperature Sensor, with a range of 200 to 660°C, 25Ω (1/4 x 12").

$7,924.00 CAD

Availability:
2 to 3 Weeks
Need a quote?

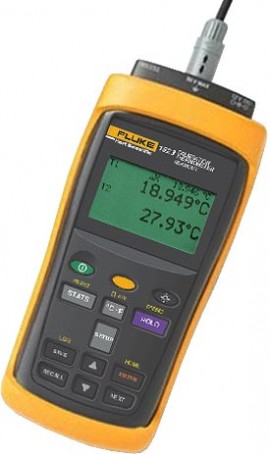

Fluke 1523-P2 Reference Thermometer

Single channel standard model with 25 slot memory.

High accuracy for compliance, product yields, energy savings, and consistent results. The 1523 uses current reversal, a technique used in high-end instruments that eliminates thermal EMFs, for precision temperature measurements. Specifications are guaranteed from -10 to 60°C ambient. Special precision resistors and a highly stable reference voltage source keeps the units accuracy virtually insensitive to environmental temperature.

Like all Fluke handheld tools, the 1523 Reference Thermometer endures rigorous testing in temperature extremes and under harsh conditions of vibration, so you can take it with confidence anywhere you need to go.

Features

  • PRTs: up to ±0.011°C
  • Thermocouples: up to ±0.24°C
  • Precision thermistors: ±0.002°C
  • Both thermometers provide the ability to quickly see trends and load probe information
  • Lets you handle field applications, laboratory measurements, and data logging with ease
  • Uses current reversal, a technique used in high-end instruments that eliminates thermal EMFs, for precision temperature measurements
  • Specifications are guaranteed from -10 to 60°C ambient
  • Special precision resistors and a highly stable reference voltage source keep the accuracy virtually insensitive to environmental temperature
  • INFO-CON connectors ensure correct temperature conversion

Fluke 1523-P2 Specifications

Input Channels 1
Logging 25 readings with statistics
Sample interval (normal) 1 second
Sample interval (fast mode) 0.3 seconds (see technical manual for details)
Sensor Types PRTs, RTDs, Thermistors, and Thermocouples
Thermocouple Types C, E, J, K, L, M, N, T, U, B, R, S
Operating Temperature -10 to 60ºC (Best accuracy 13 to 33ºC)
Power Requirements 3 AA alkaline batteries
Dimensions 96 x 200 x 47 mm (3.75 x 7.9 x 1.86")
Weight 0.65 kg (1.4 lb)
Click here for complete specifications on the Fluke 1523-P2

What's included with the Fluke 1523-P2

  • 1523-P2 Reference Thermometer
  • 5628 PRT, -200 to 660°C (-328 to 1220°F)
  • Universal TC INFO-CON Connector
  • TPAK Tool Hanger
  • Carrying Case
  • 12V DC Universal power supply
  • CD-ROM
  • 9940 I/O ToolKit software
  • RS-232 cable
  • User Guide
