Fluke 154 HART Calibration Assistant

Model: 154 | Order No: 154 US/CAN

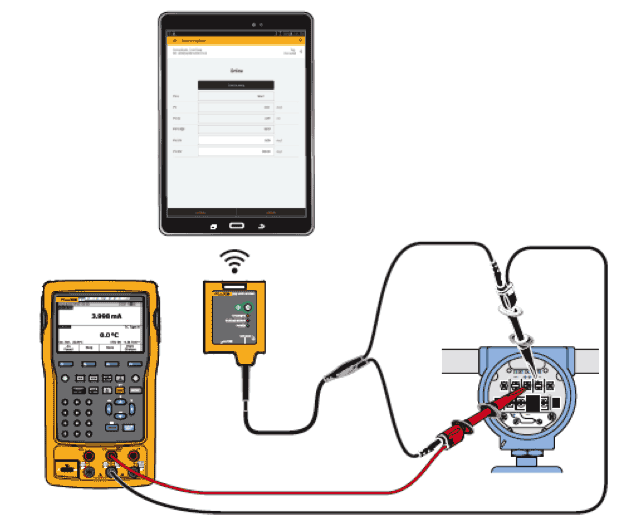

HART device configuration at your fingertips. An Android™ based tablet user interface makes HART configuration easy. The external wireless modem allows you to connect the modem to the transmitter being tested so you can communicate to the device remotely.

$5,915.00 CAD

2 to 3 Weeks
Need a quote?

Fluke 154 Offers

HART transmitters are found in confined spaces that are difficult to access, or are out of reach. Helps reduce the need to stand right next to the device being tested or configured so you can work from a safer, more convenient location.

  • Full HART Device Description (DD) of all HART devices
  • Configure HART devices
  • Perform HART trim on HART devices when used with a Fluke 750, or 720 series calibrator
  • Monitor device PV, SV, TV, QV and other measured HART variables
  • Quarterly HART DD updates for free
  • Convenient wireless connectivity to HART modem
  • Easy to use, fast connect and view HART data
  • Store HART device configurations
  • Long range wireless communication up to 250 feet
  • Complete access to all features of the HART device's DD including methods
  • Meets HART physical layer specification: HCF_SPEC-54


  • Plant maintenance engineer
  • Electric engineer
  • Senior engineer
  • Application engineer
  • Control technician
  • Instrumentation specialist
  • Automation engineers

Fluke 154 Specifications

Operating System Android 5.0 or newer
Processor ARM or Atom
Memory RAM 1 GB
Memory ROM 2 GB
Communication Port Bluetooth
HART Modem
Interface Capacitive coupling
Output 600 mVpp
Leakage <10 uA
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -14 to 113°F (-10 to 45°C)
Humidity 0 to 90% (non-condensing)
Click here for complete specifications on the Fluke 154

What's included with the Fluke 154

  • Tablet
  • Tablet Charger
  • USB Micro-Cable
  • Fluke HART App (Installed)
  • HART Modem
  • USB Mini-Cable
  • Hook Test Clips
  • Alligator Clips
  • Magnetic Hanging Strap
  • Carrying Case
  • Manual Installed on Tablet
  • Three-Year Warranty
