Fluke 1587FC Insulation Multimeter-
Downloads: datasheet manual

Ask an Expert

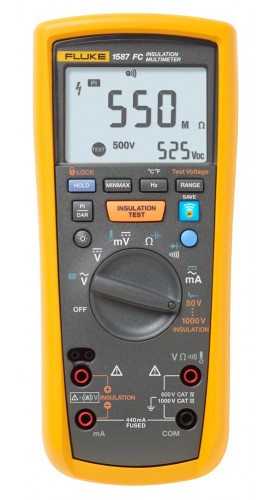

Fluke 1587FC Insulation Multimeter

Model: 1587 FC | Order No: 1587FC

Ideal for troubleshooting and preventative maintenance, this insulation multimeter comes in a compact, handheld design, and features True RMS capabilities. Additionally, this tool is compatible with the Fluke Connect app, which allows the user to see and share measurement results wirelessly with their smartphone or tablet.

Traceable Calibration Certificate for your 1587 FC

$1,423.42 CAD

Availability:
3 in Stock


Fluke Connect is the best way to stay in contact with your team without leaving the field.


Fluke 1587 FC Offers

  • PI/DAR timed ratio tests (1587 FC only)
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • VFD low-pass filter for accurate motor drive measurements (1587 FC only)
  • Auto-discharge of capacitive voltage for added user protection
  • Insulation test (1587 FC: 0.01 MΩ to 2 GΩ) (1577: 0.1 MΩ to 600 MΩ)
  • Insulation test voltages (1587 FC: 50 V, 100 V, 250 V, 500 V, 1000 V),(1577: 500 V, 1000 V) for many applications
  • AC/DC voltage, DC millivolts, AC/DC milliamps, Resistance (Ω), Continuity
  • Capacitance, diode test, temperature, Min/Max, frequency (Hz)(1587 FC only)
  • Auto power off to save battery power
  • CAT III 1000 V, CAT IV 600 V measurement category
  • Rugged, utility hard case allows you to bring everything you need for the job
  • Large display with backlight

Specifications:

Voltage DC

  • Maximum Voltage: 1000V
  • Maximum Resolution: 0.001V
  • Accuracy: ±(0.09%+2)

Voltage AC

  • Maximum Voltage: 1000V
  • Maximum Resolution: 0.1 mV
  • Accuracy: ±(2%+3)

Current DC

  • Maximum Amps: 400mA
  • Maximum Resolution: 0.01 mA
  • Amps Accuracy: ±(0.2%+2)

Current AC

  • Maximum Amps: 400mA
  • Maximum Resolution: 0.01 mA
  • Amps Accuracy: ±(1.5%+2)*

Resistance

  • Maximum Resistance: 50 MΩ
  • Maximum Resolution: 0.1Ω
  • Accuracy: ±(0.9%+2)

Insulation Test

  • Minimum Test Current @ 1kΩ/V:1mA
  • Test Voltages: 1577:500, 1000V
  • Maximum Resistance per Test Voltage: 50V; 100V; 250V; 500V; 1000V: 600 MΩ
  • Maximum Resolution per Test Voltage: 50V: 0.01 MΩ; 100V: 0.01 MΩ; 250V: 0.1 MΩ; 500V: 0.1 MΩ; 1000V: 0.1 MΩ
  • Accuracy per Test Voltage: 50V: ±(3% + 5); 100V: ±(3% + 5); 250V: ±(1.5% + 5)

General Specifications

  • Dimensions: 203x100x50mm (with holster)
  • Weight: 624g
  • Battery Life: Meter use: 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
  • IP Rating: IP40

Specifications

Voltage DC
Maximum Voltage 1000 V
Accuracy ±(0.2%+2)
Maximum Resolution 0.001V
Voltage AC
Maximum Voltage 1000 V
Accuracy ±(2%+3)
Maximum Resolution 0.1 mV
Current DC
Maximum Amps 400mA
Amps Accuracy ±(1.0%+2)
Maximum Resolution 0.01 mA
Current AC
Maximum Amps 400mA
Amps Accuracy ±(2.0%+2) 1kHz bandwidth
Maximum Resolution 0.01 mA
Resistance
Maximum Resistance 50 MΩ
Accuracy ±(1.2%+2)
Maximum Resolution 0.1Ω
Insulation Test
Minimum Test Current @ 1kΩ/V 1mA
Test Voltages 500, 1000 V
Maximum Resistance per Test Voltage 100V: 600 MΩ
Maximum Resolution per Test Voltage 50V: 0.01 MΩ 100V: 0.01 MΩ 250V: 0.1 MΩ 500V: 0.1 MΩ 100V: 0.1 MΩ
Accuracy per Test Voltage 50V: ±(3 % + 5) 100V: ±(3 % + 5) 250V: ±(1.5 % + 5) 500V: ±(2.0 % + 5) 100V: ±(2.0 % + 5)
Environmental Specifications
Operating temperature –20 °C to +55 °C
Storage temperature -40°C to +60°C
Humidity (Without Condensation) 0% - 95% (10 °C – 30 °C) 0% - 75% (30 °C – 40 °C) 0% - 40% (40 °C – 55 °C)
Operating Altitude 2000 m
Safety Specifications
Overvoltage category Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
Agency Approvals 2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
Mechanical & General Specifications
Size 203 x 100 x 50 mm (with holster)
Weight 624 g
Warranty 3 years
Battery life Alkaline Meter use 1000 hours
Insulation test use Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
IP Rating IP40
Click here for complete specifications on the Fluke 1587 FC

What's included with the Fluke 1587 FC

  • Insulation Multimeter
  • Remote Probe
  • Test Leads
  • Alligator Clips
  • K-Type Thermocouple
  • Carrying Case
  • User Documentation
Fluke 1587 FC Insulation Multimeter Fluke 1577 Insulation Multimeter Fluke 1503 Insulation Resistance Meter Fluke 1507 Insulation Resistance Tester Fluke 1550C Insulation Resistance Tester Fluke 1555 Insulation Resistance Tester
Two in one tools Stand-alone tools
Insulation test features 1587 FC 1577 1503 1507 1550C 1555
Test voltages 50 V, 100 V, 250 V, 500 V, 1000 V 500 V, 1000 V 500 V, 1000 V 50 V, 100 V, 250 V, 500 V, 1000 V 250 V to 5000 V 250 V to 10,000 V
Insulation resistance range 0.01 MΩ to 2 GΩ 0.01 MΩ to 600 GΩ 0.01 MΩ to 2000 GΩ 0.01 MΩ to 10 GΩ 250 kΩ to 1 TΩ 250 kΩ to 2 TΩ
PI/DAR
Auto discharge
Timed ramp test (Breakdown)
Pass/fail comparison
Est. # of IRT tests 1000 1000 2000 2000 Various Various
Voltage > 30 V warning
Memory With Fluke Connect App
Remote test probe
Lo ohms/earth-bond continuity 200 mA source (10 mΩ resolution) 200 mA source (10 mΩ resolution)
Display Digital LCD Digital LCD Digital LCD Digital LCD Digital LCD/ analog display Digital LCD/ analog display
Hold/lock
Multimeter features
AC/DC volts

Note: Not all product features and specifications are listed in this table. For more complete information, see individual product data sheets.

Footnotes:
1. Function useful for checking connections and motor windings. Also useful for users who are required to perform earth-bond continuity measurements during installation testing.
2. Filter for variable-speed motor drive measurements.
Current
Resistance
Continuity beeper
Temperature (contact)
Lo-pass filter2
Capacitance
Diode test
Frequency
MIN/MAX
Other features
Backlight
Software Fluke Connect compatible FlukeView® Forms Basic Fluke View® Forms Basic
Battery 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) Rechargeable Rechargeable
Find out more about insulation testing
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.

Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Webinar: Facilities Maintenance with Fluke


Proactive maintenance and energy savings strategies are essential for cost savings in facilities. <br/><br/>We’ve teamed up with Fluke to provide you with a thorough discussion on proactive maintenance strategies – approaches, tools, and the proper “health” measurements on critical assets. As managing energy costs are also critical, we will also explore how implementing an onsite compressed air and gas leak detection program, facilities can save tens of thousands of dollars annually and production equipment downtime. The latest test equipment advances have made it possible for users to perform leak inspections with little to no training in a fraction of the time versus conventional tools.<br/><br/>During this short webinar on Facilities Maintenance, we covered:<ul><li>Monitoring critical assets with fewer resources </li><li>Bridging the skills gap</li><li>Why are we replacing the same bearings and seals over and over?</li><li>What are the best tools to use?</li><li> How do we justify the cost of the tools and resources?</li><li>How do we start a Proactive Maintenance program?</li></ul>

Why you need the Fluke 1587 FC Insulation Multimeter


Insulation multimeters are an integrated tool for maintaining and troubleshooting motor systems, electrical distribution, and production equipment. Carrying the Fluke 1587 FC will enable you to test insulation more often, making your maintenance tests more thorough and your troubleshooting more effective.<br/><br/>This multimeter combines a TRMS digital multimeter and a digital insulation tester in a single, compact unit. For this reason, it is capable of measuring a higher resistance than the average multimeter; allowing you to know when a cable is leaking under high voltage - see 0:25.<br/><br/>Its compatibility with Fluke Connect® makes it even more of an asset in your toolbox! Find out why at 0:58.

How To Take Insulation Resistance Measurements with the Fluke 1587FC


This video will teach the viewers how to take insulation resistance measurements with this insulation multimeter. It also shows the viewers where functions that relate to insulation resistance are on the device. Additionally, this test instrument is Fluke Connect compatible.

How To Test a Motor with the Fluke 1587 FC Insulation Meter


Use the Fluke Connect App to save the measurements taken for a later date. To test a motor, follow the simple step-by-step instructions provided in the video. You'll complete a motor test in no time at all.

Fluke 1587 FC Tips and Tricks: Low-Pass Filter


Get step-by-step instructions on using a VFD drive and the 1587 FC. By connecting the unit to a smartphone or tablet via Bluetooth, you can see your measurements in current time.
