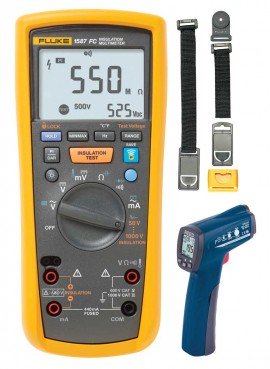

Fluke 1587FC Insulation Multimeter Kit - Includes FREE Products with Purchase

Model: 1587FC-KIT

Ideal for troubleshooting and preventative maintenance, this insulation multimeter comes in a compact, handheld design, and features True RMS capabilities. This value added kit includes the REED R2300 Infrared Thermometer and the Fluke TPAK Magnetic Meter Hanger for FREE.

Add In-House ISO Certified Calibration to your 1587FC


$1,155.00 CAD

was $1,270.18

Availability:
50 in Stock
Need a quote?




Fluke 1587FC Offers

The high-performance 2-in-1 insulation digital multimeter

This insulation multimeter is the combination of a digital insulation tester that comes supplied with a full-featured, True RMS digital multimeter in a single compact, handheld unit, which enables maximum versatility for troubleshooting and preventative maintenance.

Features

  • PI/DAR timed ratio tests
  • Live circuit detection prevents insulation test if voltage >30 V is detected for added user protection
  • VFD low-pass filter for accurate motor drive measurements
  • Auto-discharge of capacitive voltage for added user protection
  • Insulation test of 0.01 MΩ to 2 GΩ
  • Insulation test voltages of 50, 100, 250, 500 V for many applications
  • AC/DC voltage, DC millivolts, AC/DC milliamps, resistance (Ω), continuity
  • Capacitance, diode test, temperature, Min/Max, frequency (Hz)
  • Auto power off to save battery power
  • CAT III 1000 V, CAT IV 600 V measurement category
  • Large display with backlight
  • Safety first. Keep yourself out of harm's way by monitoring your test measurements remotely
  • Prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone
  • Quickly find problems by saving and comparing measurements over time on a wireless device

Keep yourself safe. Find hidden problems faster. Put the paperwork down.

Fluke Connect and this insulation multimeter helps you identify tough problems, fix, and wirelessly communicate your work quickly and easily - all at a safe distance.

Add diagnostics with Fluke Connect

Fluke Connect is enabled so you can download the free application to your smartphone and gain additional functions, including:

  • Safety first. Keep yourself out of harm's way by monitoring your test measurements remotely
  • Prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone
  • Quickly find problems by saving and comparing measurements over time on a wireless device
  • PI/DAR timed ratio tests with TrendIt™ graphs to identify moisture and contaminated insulation problems faster
  • Memory storage through Fluke Connect that saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
  • Temperature compensation to establish accurate baselines and relevant historical comparisons
  • Historical tracking and trending of assets to identify insulation degradation over time and allow real-time decisions to be made in the field with Fluke Connect® Assets (sold separately)
  • Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
  • Includes live circuit detection to prevent insulation test if voltage >30 V is detected
  • Provides automated temperature compensation to establish accurate baselines
  • Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements
  • Includes auto-discharge of capacitive voltage for added user protection
  • Measures ac/dc voltage, dc millivolts, ac/dc milliamps, resistance, and continuity
  • Includes capacitance, diode test, temperature, min/max, frequency measurements and insulation test smoothing reading

REED R2300 Infrared Thermometer

This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance.

Features

  • Built-in laser pointer identifies target area
  • User selectable °F or °C
  • 12:1 distance to spot size ratio
  • Digitally adjustable emissivity
  • Max and Min readings
  • Backlit display
  • High and low alarms
  • Low battery indication and auto shut off

Fluke TPAK Multimeter Hanging Kit

Features

  • Kit Includes: 9 inch hook and loop strap, universal hanger clip, hook hanger for non magnetic surfaces and a strong magnet.
  • Solves almost any hanging and positioning problem you may face.
  • The universal hanger allows you to hang your meter on nails, hooks and many other objects.
  • Compatible with many Fluke instruments
6 Tips for effective insulation testing
1

Disconnect any electronic devices like motor drives, PLC’s, transmitters, etc. before performing insulation testing. Electronics can be damaged by applying higher than normal voltage.

2

The effect of temperature should be considered - it is recommended that tests be performed at a standard conductor temperature of 20 °C (68 °F) or that a temperature baseline is established while compensating future readings by using a DMM with a probe or an infrared thermometer.

3

Select a test voltage appropriate for the insulation being tested. The objective is to stress the insulation but not to over-stress it. When in doubt, use a lower test voltage. It’s usually appropriate to test insulation at twice the voltage it normally sees: for example 460 V to 600 V rated equipment is often tested at 1000 V.

4

When using an insulation tester, leave the leads connected when you stop the test. The insulation tester can discharge any residual test voltage.

5

Conductors that are close to each other have a normal capacitance. This will cause an insulation resistance reading to start low and increase steadily until it stabilizes. This type of increase is normal, but if the reading jumps violently down and up again this indicates arcing.

6

Although the current is tightly limited, an insulation tester can generate sparks and minor but painful burns. The unexpected surprise can cause an operator to jerk away. As always, work away from live systems and use safe work practices when working overhead.

Insulation Resistance Testing Solutions

Fluke 1587FC-KIT Specifications

AC Voltage Measurements
Range 600 mV
6 V
60 V
600 V
1000 V
Resolution 0.1 mV
0.001 V
0.01 V
0.1 V
1 V
50 to 60 Hz ±(% of Rdg + counts) ±(1% + 3)
±(1% + 3)
±(1% + 3)
±(1% + 3)
±(2% + 3)
60 to 5000 Hz ±(% of Rdg + counts) ±(2% + 3)
±(2% + 3)
±(2% + 3)
±(2% + 3)1
±(2% + 3)1
Low-Pass Filter Voltage
Range 600 mV
6 V
60 V
600 V
1000 V
Resolution 0.1 mV
0.001 V
0.01 V
0.1 V
1 V
50 to 60 Hz ±(% of Rdg + counts) ±(1% + 3)
±(1% + 3)
±(1% + 3)
±(1% + 3)
±(2% + 3)
60 to 400 Hz ±(% of Rdg + counts) ±(2% + 3) - (6% - 3)
±(2% + 3) - (6% - 3)
±(2% + 3) - (6% - 3)
±(2% + 3) - (6% - 3)
±(2% + 3) - (6% - 3)
DC Voltage Measurement
Range 6 V dc
60 V dc
600 V dc
1000 V dc
Resolution 0.001 V
0.01 V
0.1 V
1 V
Accuracy ±(% of Rdg + Counts) ±(0.09% + 2)
±(0.09% + 2)
±(0.09% + 2)
±(0.09% + 2)
Input Impedance 10 MΩ (nominal), <100 pF
Nominal Mode Rejection Ratio >60 dB at 50 or 60 Hz
Common Mode Rejection Ratio >120 dB at dc, 50 or 60 Hz (1 k unbalance)
DC Millivolts Measurement
Range 600 mVdc
Resolution 0.1 mV
Accuracy ±(% of Rdg + Counts) ±(0.1 + 1)
DC and AC Current Measurement
Range 400 mA
Resolution 0.1 mA
Accuracy ±(% of Rdg+Counts) ±(1.5% + 2)1
Burden Voltage (Typical) 2 mV/mA
Range 60 mA
Resolution 0.01 mA
Accuracy ±(% of Rdg+Counts) ±(1.5% + 2)1
Burden Voltage (Typical) 2 mV/mA
DC
Range 400 mA
Resolution 0.1 mA
Accuracy ±(% of Rdg+Counts) ±(0.2% + 2)
Burden Voltage (Typical) 2 mV/mA
Range 60 mA
Resolution 0.01 mA
Accuracy ±(% of Rdg+Counts) ±(0.2% + 2)
Burden Voltage (Typical) 2 mV/mA
Overload 600 mA for 2 minutes maximum
Fuse Protection for mA Input 0.44 mA, 1000 V, IR 10 kA
AC Conversion Inputs are ac-coupled and calibrated to the rms value of sine wave input
Ohms Measurement
Range 600 Ω
6 kΩ
60 kΩ
600 kΩ
6 MΩ
50 MΩ
Resolution 0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
Accuracy +(% of Rdg+Counts)1 ±(0.9% + 2)
±(0.9% + 2)
±(0.9% + 2)
±(0.9% + 2)
±(0.9% + 2)
±(1.5% + 3)
Overload Protection 1000 rms or dc
Open Circuit Test Voltage <8 V dc
Short Circuit Current <1.1 mA
Diode Test
Diode Test Indication Display voltage drop: 0.6 V at1.0 mA nominal test current
Accuracy ±(2% + 3)
Continuity Test
Continuity Indication Continuous audible tone for testresistance below 25 Ω and off above 100 Ω
Maximum reading: 1000 Ω
Open Circuit Voltage <8.0 V
Short Circuit Current 1.0 mA typical
Overload Protection 1000 V rms
Response Time >1 m sec
Frequency Measurement
Range 99.99 Hz
999.9 Hz
9.999 kHz
99.99 kHz
Resolution 0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
Accuracy ±(% of Rdg+Counts) ±(0.1% + 1)
±(0.1% + 1)
±(0.1% + 1)
±(0.1% + 1)
Frequency Counter Sensitivity
600.0 mV ac V ac Sensitivity (RMS Sine Wave)1 5 Hz to 20 kHz: 100.0 mV
V ac Sensitivity (RMS Sine Wave)1 20 to 100 kHz: 150.0 mV
DC Trigger Levels¹ to 20 kHz2: NA
6.0 V V ac Sensitivity (RMS Sine Wave)1 5 Hz to 20 kHz: 1.0 V
V ac Sensitivity (RMS Sine Wave)1 20 to 100 kHz: 1.5 V
DC Trigger Levels¹ to 20 kHz2: -400.0 mV and 2.5 V
60.0 V V ac Sensitivity (RMS Sine Wave)1 5 Hz to 20 kHz: 10.0 V
V ac Sensitivity (RMS Sine Wave)1 20 to 100 kHz: 36.0 V
DC Trigger Levels¹ to 20 kHz2: 1.2 V and 4.0 V
600.0 V V ac Sensitivity (RMS Sine Wave)1 5 Hz to 20 kHz: 100.0 V
V ac Sensitivity (RMS Sine Wave)1 20 to 100 kHz: NA
DC Trigger Levels¹ to 20 kHz2: 12.0 V and 40.0 V
1000.0 V V ac Sensitivity (RMS Sine Wave)1 5 Hz to 20 kHz: 300.0 V
V ac Sensitivity (RMS Sine Wave)1 20 to 100 kHz: NA
DC Trigger Levels¹ to 20 kHz2: 12.0 V and 40.0 V
Capacitance
Range 1000 nF
10.00 µF
100.0 µF
9999 µF
Resolution 1 nF
0.01 µF
0.1 µF
1 µF
Accuracy ±(% of Rdg+Counts) ±(1.2% + 2)
±(1.2% + 2)
±(1.2% ± 90 counts)
±(1.2% ± 90 counts)
Temperature Measurement
Range -40 to 998°F (-40 to 537°C)
Resolution 0.1°F (0.1°C)
Accuracy ±(% of Rdg+Counts)1 ±(1% + 10 counts)
±(1% + 18 counts)
Insulation Specifications
Measurement Range 0.01 MΩ to 2 GΩ
Test Voltages 50, 100, 250, 500, 1000 V
Test Voltage Accuracy 20%, 0%
Short-Circuit Test Current 1 mA nominal
Auto Discharge Discharge time <0.5 second for C=1 µF or less
Live Circuit Detection Inhibit test if terminal voltage >30 V prior to initialization of test
Maximum Capacitive Load Operable with up to 1 µF load
Output Voltage
50 V (0% to +20%) Display range: 0.01 to 6.00 MΩ
Resolution: 0.01 MΩ
Test current: 1 mA at 50 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
Display range: 6.0 to 50.0 MΩ
Resolution: 0.1 MΩ
Test current: 1 mA at 50 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
100 V (0% to +20%) Display range: 0.01 to 6.00 MΩ
Resolution: 0.01 MΩ
Test current: 1 mA at 100 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
Display range: 6.0 to 60.0 MΩ
Resolution: 0.1 MΩ
Test current: 1 mA at 100 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
Display range: 6.0 to 100.0 MΩ
Resolution: 0.1 MΩ
Test current: 1 mA at 100 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
250 V (0% to +20%) Display range: 0.1 to 60.0 MΩ
Resolution: 0.1 MΩ
Test current: 1 mA at 250 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
Display range: 60 to 250 MΩ
Resolution: 1 MΩ
Test current: 1 mA at 250 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
500 V (0% to +20%) Display range: 0.1 to 60.0 MΩ
Resolution: 0.1 MΩ
Test current: 1 mA at 500 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
Display range: 60 to 500 MΩ
Resolution: 1 MΩ
Test current: 1 mA at 250 kΩ
Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
1000 V (0% to +20%) Display range: 0.1 to 60.0 MΩ
Resolution: 0.1 MΩ
Test current: 1 mA at 1 MΩ
Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
Display range: 60 to 600 MΩ
Resolution: 1 MΩ
Test current: 1 mA at 1 MΩ
Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
Display range: 0.6 to 2.0 GΩ
Resolution: 100 MΩ
Test current: 1 mA at 1 MΩ
Resistance accuracy ±(% of Rdg + Counts): ±(10% + 3 counts)
Click here for complete specifications on the Fluke 1587FC-KIT

What's included with the Fluke 1587FC-KIT

  • Insulation Multimeter
  • Remote Probe
  • Test Leads
  • Alligator Clips
  • K-Type Thermocouple
  • Carrying Case
  • User Documentation

This Fluke 1587FC-KIT Multimeter Kit Includes


Fluke 1587 FC Insulation Multimeter

Fluke 1587 FC Insulation Multimeter

Perform insulation tests with voltages 50V, 100V, 250V, 500V, 1000V. Capable of testing frequency, capacitance, temperature, AC/DC voltage and more. Part of the Fluke Connect family of wireless test tools.


REED R2300 Infrared Thermometer

REED R2300 Infrared Thermometer

Fast responding entry-level infrared thermometer with min/max temperature readings and adjustable high/low temperature alarms.


Fluke 289 TRMS Logging Multimeter with TrendCapture

Fluke TPAK Meter Hanging Kit

Attaches to back of a Fluke 110/170/180 Series Meter, 20/70-III with integrated holster (with adapter), 724/725, and 50 Series II.

Fluke 1587 FC Insulation Multimeter Fluke 1577 Insulation Multimeter Fluke 1503 Insulation Resistance Meter Fluke 1507 Insulation Resistance Tester Fluke 1550C Insulation Resistance Tester Fluke 1555 Insulation Resistance Tester
Two in one tools Stand-alone tools
Insulation test features 1587 FC 1577 1503 1507 1550C 1555
Test voltages 50 V, 100 V, 250 V, 500 V, 1000 V 500 V, 1000 V 500 V, 1000 V 50 V, 100 V, 250 V, 500 V, 1000 V 250 V to 5000 V 250 V to 10,000 V
Insulation resistance range 0.01 MΩ to 2 GΩ 0.01 MΩ to 600 GΩ 0.01 MΩ to 2000 GΩ 0.01 MΩ to 10 GΩ 250 kΩ to 1 TΩ 250 kΩ to 2 TΩ
PI/DAR
Auto discharge
Timed ramp test (Breakdown)
Pass/fail comparison
Est. # of IRT tests 1000 1000 2000 2000 Various Various
Voltage > 30 V warning
Memory With Fluke Connect App
Remote test probe
Lo ohms/earth-bond continuity 200 mA source (10 mΩ resolution) 200 mA source (10 mΩ resolution)
Display Digital LCD Digital LCD Digital LCD Digital LCD Digital LCD/ analog display Digital LCD/ analog display
Hold/lock
Multimeter features
AC/DC volts

Note: Not all product features and specifications are listed in this table. For more complete information, see individual product data sheets.

Footnotes:
1. Function useful for checking connections and motor windings. Also useful for users who are required to perform earth-bond continuity measurements during installation testing.
2. Filter for variable-speed motor drive measurements.

Current
Resistance
Continuity beeper
Temperature (contact)
Lo-pass filter2
Capacitance
Diode test
Frequency
MIN/MAX
Other features
Backlight
Software Fluke Connect compatible FlukeView® Forms Basic Fluke View® Forms Basic
Battery 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) Rechargeable Rechargeable
Find out more about insulation testing
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Getting to know the Fluke 1587 FC Insulation Multimeter


This insulation multimeter combines a true RMS digital multimeter and a digital insulation tester into a single, compact unit.

Fluke 1587 FC Tips and Tricks: Low-Pass Filter


Get step-by-step instructions on using a VFD drive and the 1587 FC. By connecting the unit to a smartphone or tablet via Bluetooth, you can see your measurements in current time.

How To Test a Motor with the Fluke 1587 FC Insulation Meter


Use the Fluke Connect App to save the measurements taken for a later date. To test a motor, follow the simple step-by-step instructions provided in the video. You'll complete a motor test in no time at all.

How To Take Insulation Resistance Measurements with the Fluke 1587FC


This video will teach the viewers how to take insulation resistance measurements with this insulation multimeter. It also shows the viewers where functions that relate to insulation resistance are on the device. Additionally, this test instrument is Fluke Connect compatible.

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 1587FC Insulation Multimeter Kit - Includes FREE Products with Purchase.

Fluke C25 Large Soft Carrying Case for Digital Multimeters C25
Featuring a durable, zippered carrying case with padding and inside pocket, and high quality polyester exterior. It includes a convenient hand strap and carries most of Fluke's popular digital multimeters.
$63.37 CAD

Learn More

Fluke TPAK ToolPak Magnetic Meter Hanger ToolPak
Hang your meter in a variety of ways for convenient hands-free operation. Attaches to most Fluke meters.
$66.18 CAD

Learn More

Fluke TL220 Suregrip Industrial Test Lead Set TL220
Includes the Fluke AC220, Fluke TP220, and Fluke TL224.
$108.00 CAD

was $120.00


Learn More

Fluke TL175 TwistGuard Test Leads Set TL175
By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 inch to 0.16 inch).
$49.28 CAD

Learn More

Fluke i400 AC Current Clamp, 400 A AC I400
For use with digital multimeters, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.
$208.80 CAD

was $232.00


Learn More


Ask a question about the Fluke 1587FC Insulation Multimeter Kit - Includes FREE Products with Purchase :

comments powered by Disqus

Customer Reviews for the Fluke 1587FC-KIT
