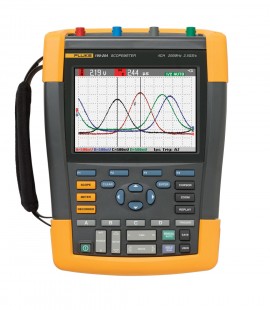

Fluke 190-104/AM ScopeMeter Oscilloscope, 4 channel, 100 MHz

Fluke 190-104/AM Specifications

Functions Specifications
Bandwidth	100 MHz
Number of Channels	100 MHz: 4 channels
Real-Time Sample Rate	1.25 GS/s
Inputs	4 scope plus DMM input
Independently Floating Isolated Inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase Range	5 ns - 2 min/div
Input Sensitivity	2 mV - 100 V/div
Trigger Types	Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger Source	Any scope input channel
Glitch Capture	8 ns
Scope Measurements	Cursor: 7 Automatic: 30
Maximum Record Length	ScopeRecord mode: 30,000 pts Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare	Waveform reference with automatic Pass/Fail testing
Environmental Specifications
Operating Temperature	32 to 104°F (0 to 40°C), including batteries 32 to 122°F (0 to 50°C), excluding batteries
Storage Temperature	-4 to 140°F (-20 to 60°C)
Operating Altitude	Up to 6666' (2000 m) for CAT IV 600 V, CAT III 1000 V Up to 10,000' (3000 m) for CAT III 600 V, CAT II 1000 V
Mechanical and General Specifications
Li-Ion Battery	BP291 4800 mAh battery up to 7 Hours included standard
Dimensions	10.6 x 7.5 x 2.75" (270 x 190 x 70 mm)
Weight	4.85 lbs (2.2 kg)
Safety Specifications
Electrical Safety	1,000 V CAT III/600 V CAT IV (EN61010-1)

Click here for complete specifications on the Fluke 190-104/AM

What's included with the Fluke 190-104/AM

• ScopeMeter™ Oscilloscope
• Test Lead Set
• Handstrap
• Hangstrap
• USB Interface Cable
• Battery Charger/Mains Adapter
• Li-ion Battery
• Multi-Language User Manuals on CD-Rom
• Three-Years on Main instrument
• One-Year on Accessories

See More, Fix More with the New Four-Channel CAT IV Rated Fluke ScopeMeter 190 Series II

The new Fluke ScopeMeter 190-104 (100MHz) and 190-204 (200MHz) combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeters go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

The new 190 Series II includes all the standard ScopeMeter features including TrendPlot™, Connect-and-View™ triggering, and ScopeRecord™ and much more:

• Four electrically isolated inputs
• CAT III 1000V / CAT IV 600V safety rated
• Choose from 100MHz or 200MHz bandwidth models
• Single shot, pulse width, and video triggering
• Fast sampling rate, up to 2.5GS/s with up to 400 ps resolution
• Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
• IP-51 rated for dust and drip proof to withstand harsh environments
• Isolated USB ports for memory devices and PC connectivity
• 7-hour battery life, standard with new Li-ion technology
• Easy-access battery door to make it easy to swap batteries
• A handy slot to tether and lock down the oscilloscope while unattended

Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating

The new Fluke ScopeMeter 190 Series II portable scopes are double-insulated four-channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.

Three-dimensional testing for industrial systems

Visual:
Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:

• Circuit voltage/current overloading
• Signal timing measurements and synchronization issues
• Attenuation/input impedance mismatch
• Signal fluctuation/drift



Three-phase testing for diagnosing VSD, power inverters, and converters

Visual:
Take advantage of four channels to test variable frequency drive and inverter power electronics technology used in wind energy and transportation applications:

• Test for harmonics, transients and loads in three-phase power input
• Troubleshoot dc to ac converters for faulty IGBT gates.
• Test PWM output for reflections and transients

Safely measure from mV to kV

Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.

Take on the Harshest Conditions with the only IP-51-rated Scope on the Market

Rugged and shock-proof, all ScopeMeter portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.

Work a Full Shift on a Single Charge

New high-performance batteries take advantage of Li-ion technology to keep you going strong for seven hours. And with the easy-access battery door you can make battery swaps fast.

Capture and Share Waveforms Easily with New USB connectivity

Two USP ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument steups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.

See a Stable Display Instantly with Connect-and-View™ Triggering

Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.

Record Up to 48 Hours of High-Resolution Waveforms with ScopeRecord™

ScopeRecord memory stores up to 27,000 data points per channel, capturing intermittents and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)

• Stores events like motion profiles, UPS, power supply, and motor start-ups
• With the Stop-on-Trigger mode, the ScopeMeter automatically recognizes a power failure and stores the waveform data preceding it
• With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles

Record up to 16 days with TrendPlot™ paperless recorder to find intermittent faults

Intermittent faults can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, sags, or starting and stopping a motor can also cause a machine to stop. The TrendPlot function in the Fluke ScopeMeter helps find those faults by:

• Plotting minimum and maximum peak values and average over time up to 16 days
• Plotting any combination of voltages, amps, temperature, frequency and phase for all four inputs, all with time and date stamp to pinpoint faults

FlukeView ScopeMeter software adds PC power to your Fluke ScopeMeter (Includes Demo Version)

FlukeView ScopeMeter software helps you get more out of your ScopeMeter by:

Documenting: Transfer screens, waveforms, and measurement data from the ScopeMeter to your PC for printing, or to import data to other programs.

Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.

Analysis: Gather valuable measurement data and enable cursor measurements to reveal relationships and conditions. Extended recording of up to four user-selected measurements help you monitor and analyze slow moving signals and related events. Upload waveforms to the PC and use cursors for detailed measurements. Perform waveform analysis, including analyzing harmonics.

• For ScopeMeter 190 & 120 Series
• Windows 95/98/Me/NT4.0/2000/XP
• Requires one free RS-232 port (COM port)
• Requires optional PM9080 RS-232 Adapter/Cable

---

---
