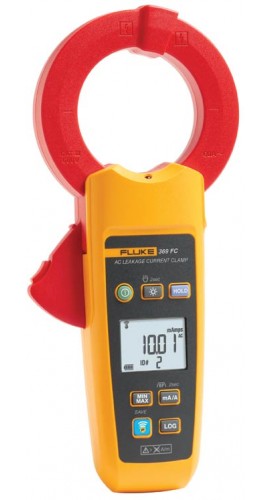

Fluke 368 FC True RMS Leakage Current Clamp Meter, 40 mm

Model: 368 FC | Order No: 368FC

Detect, document, record, and compare leakage current readings with this True RMS leakage current clamp meter. It features large diameter jaws of 1.6" (40 mm) that accurately capture very small leakage signals. Additionally, this unit is Fluke Connect compatible.

Add In-House ISO Certified Calibration to your 368FC


$1,106.00 CAD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 368 FC Offers

Features

  • True RMS measurements for accuracy when measuring complex, non-sinusoidal waveforms
  • 1.6" (40 mm) jaw opening
  • Highest resolution of 1 µA, measure up to 60 A
  • Selectable filter function removes unwanted noise
  • Max/Min/Average readings and hold function
  • Forward-facing LED work light for use in dark wiring cabinets
  • Backlit display; auto backlight off and auto power off for extended battery life
  • Internal Memory Logging: up to 65,000 measurement points
  • CAT III 600 V safety rating

Reduce downtime - find leakage currents without taking equipment offline

This True RMS leakage current clamp meter helps users detect, document, record, and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment offline.

It features a large 1.6" (40 mm) diameter jaw for work with large conductors. The jaw is fully shielded to capture very small leakage signals and minimize external electromagnetic interference.

Also, this product offers wireless data connectivity via Fluke Connect, which enables you to track changes in leakage current over time, helping you to identify potential problems before they turn into major failures.

Fluke 368 FC Specifications

Electrical Specifications
Measurement Function Alternating current
AC Ampere Range 3, 30, 300 mA
3, 30, 60 A
Range Selection mA/A: Manual selection
3/30/300 mA: Automatic selection
3/30/60 A: Automatic selection
Range/Resolution 3/0.001 mA
30/0.01 mA
300/0.1 mA
3/0.001 A
30/0.01 A
60/0.1 A
Accuracy - Filter Activated (40 to 70 Hz), Filter Off (40 to 1 kHz) 3 mA to 30 A: 1% + 5 digits
60 A: 2% + 5 digits
Frequency 40 Hz to 1 kHz
Crest Factor 3
General Specifications
Display (LCD) Digital readout: 3300 count
Display Refresh Rate 4 times/sec
Maximum Conductor Diameter 1.6" (40 mm)
Battery 2 x AA, IEC LR6, NEDA 15A, alkaline
Battery Life Expected battery life, without using backlight and spotlight, is more than 150 hours
Automatic Shut-Down Meter automatically shuts down after 15 minutes of inactivity
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Operating Humidity Non-condensing at <50°F (<10°C)
90% relative humidity at 50 to 86°F (10 to 30°C)
75% relative humidity at 86 to 104°F (30 to 40°C)
45% relative humidity at 104 to 122°F (40 to 50°C)
Operating Altitude 6561.7' (2000 m)
Storage Altitude 39,370.1' (12,000 m)
Dimensions 9.2 x 4 x 1.8" (234 x 101 x 46 mm)
Weight 1.1 lbs (500 g)
Safety Specifications
General Safety IEC 61010-1: Pollution Degree 2
Measurement Safety IEC 61010-2-032: CAT III 600 V/CAT IV 300 V
Current Sensor Action Category IEC 61557-13: Class 2, ≤30 A/m
Click here for complete specifications on the Fluke 368 FC

What's included with the Fluke 368 FC

  • Clamp Meter
  • Carrying Case
  • 2 x AA Batteries
  • Manual
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements
