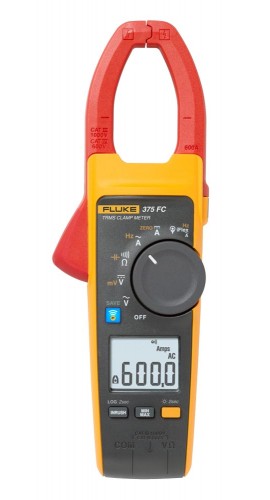

Fluke 375 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V

Model: 375 FC | Order No: 375FC

Measure very low and very high resistance with this True RMS AC/DC clamp meter. It features a VFD low-pass filter which provides accurate motor drive measurements and is ideal for troubleshooting non-linear signals. Additionally, this instrument is compatible with the Fluke Connect application and iFlex flexible current probe.

Add In-House ISO Certified Calibration to your 375 FC


$545.40 CAD

was $606.00

Availability:
27 in Stock
Need a quote?





Fluke 375 FC Offers

  • True-RMS ac voltage and current for accurate measurements on non-linear signals
  • 500 mV DC measurement range to interface with other accessories
  • Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing protective equipment
  • Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

Specifications:

AC current via jaw

  • Range: 600 A
  • Resolution: 0.1 A
  • Accuracy: 2 % ± 5 digits

AC current via iFlex™ (optional)

  • Range: 2500 A
  • Resolution: 0.1 A
  • Accuracy: 3 % ± 5 digits

DC current

  • Range: 600 A
  • Resolution: 0.1 A
  • Accuracy: 2 % ± 5 digits

AC voltage

  • Range: 1000 V
  • Resolution: 0.1 V (<600V+)
  • Resolution: 1 V (<1000V)
  • Accuracy: 1.5 % ± 5 digits (20 Hz to 500 Hz)

DC voltage

  • Range: 1000 V
  • Resolution: 0.1 mV
  • Accuracy: 1 % ± 5 digits

Resistance

  • Range: 60,000 Ω
  • Resolution: 0.1 Ω
  • Accuracy: 1 % ± 5 digits

Frequency

  • Range: 500 Hz
  • Resolution: 0.1 Hz
  • Accuracy: 0.5 % ± 5 digits

Capacitance

  • Range: 1 µF to 1000 µF
  • Resolution: 1 µF
  • Accuracy: 1 % ± 4 digits

General Specifications

  • Diameter of measurable conductor: 0.13" or 34 mm max
  • Size: 246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
  • Weight: 388g, (14 oz.)

Fluke 375 FC Specifications

Electrical Specifications
AC Current via Jaw
Range 600.0 A
Resolution 0.1 A
Accuracy 2% ± 5 digits (10-100 Hz)
2.5% ± 5 digits (100-500 Hz)
Crest Factor (50/60 Hz) 3 @ 500 A
2.5 @ 600 A
Add 2% for C.F. > 2
AC Current via Flexible Current Probe
Range 2500 A
Resolution 0.1 A (≤ 600 A)
1 A (≤ 2500 A)
Accuracy 3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz) 3.0 at 1100 A (375 and 376 only)
2.5 at 1400 A
1.42 at 2500 A
Add 2% for C.F. > 2
DC Current
Range 600.0 A
Resolution 0.1 A
Accuracy 2% ± 5 digits
AC Voltage
Range 1000.0 V
Resolution 0.1 V
Accuracy 1.5% ± 5 digits (20 – 500 Hz)
DC Voltage
Range 1000.0 V
Resolution 0.1 V
Accuracy 1% ± 5 digits
mV dc
Range 500.0 mV
Resolution 0.1 mV
Accuracy 1% ± 5 digits
Frequency via Jaw
Range 5.0 - 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5% ± 5 digits
Trigger Level 5 – 10 Hz, ≥10 A
10 – 100 Hz, ≥5 A
100 – 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range 5.0 - 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5% ± 5 digits
Trigger Level 5 – 20 Hz, ≥ 25 A
20 – 100 Hz, ≥ 20 A
100 – 500 Hz, ≥ 25 A
Resistance
Range 60 kΩ
Resolution 0.1 Ω (≤ 600 Ω)
1 Ω (≤ 6000 Ω)
10 Ω (≤ 60 kΩ)
Accuracy 1% ± 5 digits
Capacitance
Range 1000 µF
Resolution 0.1 µF (≤ 100 µF)
1 µF (≤ 1000 µF)
Accuracy 1% ± 4 digits
Mechanical Specifications
Size (L x W x H) 249 mm x 85 m x 45 mm
Weight 388g (14 oz.)
Jaw Opening 34 mm
Flexible Current Probe Diameter 7.5 mm
Flexible Current Probe Cable Length
(head to electronics connector)
1.8 m
Environmental Specifications
Operating Temperature -14 to 122°F (10°C to 50°C)
Storage Temperature -40 to 140°F(-40 to 60°C)
Operating Humidity ≤ 90% RH @ 10°C – 30°C, ≤ 75% RH @ 30°C – 40°C, ≤ 45% RH @ 40°C – 50°C
Operating Altitude 0 to 3000 m
Storage Altitude 12,000 meters
EMC EN 61326-1:2006
Temperature Coefficients 0.01% °C (<18°C or >28°C)
Warranty Three years for electronics One year for cable and clamp assembly
Click here for complete specifications on the Fluke 375 FC

What's included with the Fluke 375 FC

  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • TL75 test leads
  • Two AA Alkaline batteries
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements
