Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex-
Downloads: datasheet manual

Ask an Expert

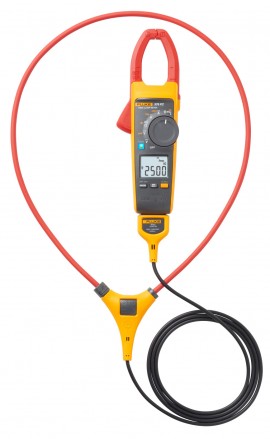

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Model: 376 FC | Order No: 376FC

Ideal for a wide range of current measurement situations, this True RMS clamp meter also comes equipped with the iFlex™ flexible current probe which increases flexibility and measures awkward sized conductors. Additionally, this tool can read up to 1000 V and 1000 A in both ac and dc modes.

Traceable Calibration Certificate for your 376 FC True RMS AC/DC Clamp Meter with iFlex

$731.54 CAD

was $897.59

Availability:
4 in Stock

Work Safer with Fluke Products

Fluke Connect is the best way to stay in contact with your team without leaving the field.


Fluke 376 FC Offers

  • Connect your meter to your smartphone with Fluke Connect Measurements
  • Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
  • Record results directly to your phone and the Cloud
  • Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC
  • Create and share reports from the field via email, or converse in real-time with ShareLive video calls
  • Integrated VFD low pass filter for accurate motor drive measurements
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • CAT IV 600 V, CAT III 1000 V safety rating
  • Three-year warranty

Specifications:

  • Size: 249 x 85 x 45 mm
  • Weight: 395g, (14 oz.)

Fluke 376 FC Specifications

Diameter of measurable conductor 01.3" or 34 mm max
Operating temperature -14 to 122°F (-10 to 50°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Operating Humidity < 90% @ 10 to 30 °C, < 75% @ 30 to 40°C
Operating Altitude 0 to 3000 m
i2500-18 and i2500-10 Range Resolution Accuracy
AC Current* 2500 A 0.1 A 3% ± 5 digits**
Frequency* 500 Hz 0.1 Hz 0.5% ± 5 digits
External magnetic field rejection
(with cable >10 cm from the coupling)		 40 dB
Inrush* Yes
Size 9.685 x 3.267 x 1.692 in.(246 x 83 x 43 mm)
Weight 14 oz. (88g)
Temperature Coefficient 0.01% °C(<18°C or < 28°C)
Warranty Three years for electronics
One year for cable and clamp assembly
Click here for complete specifications on the Fluke 376 FC

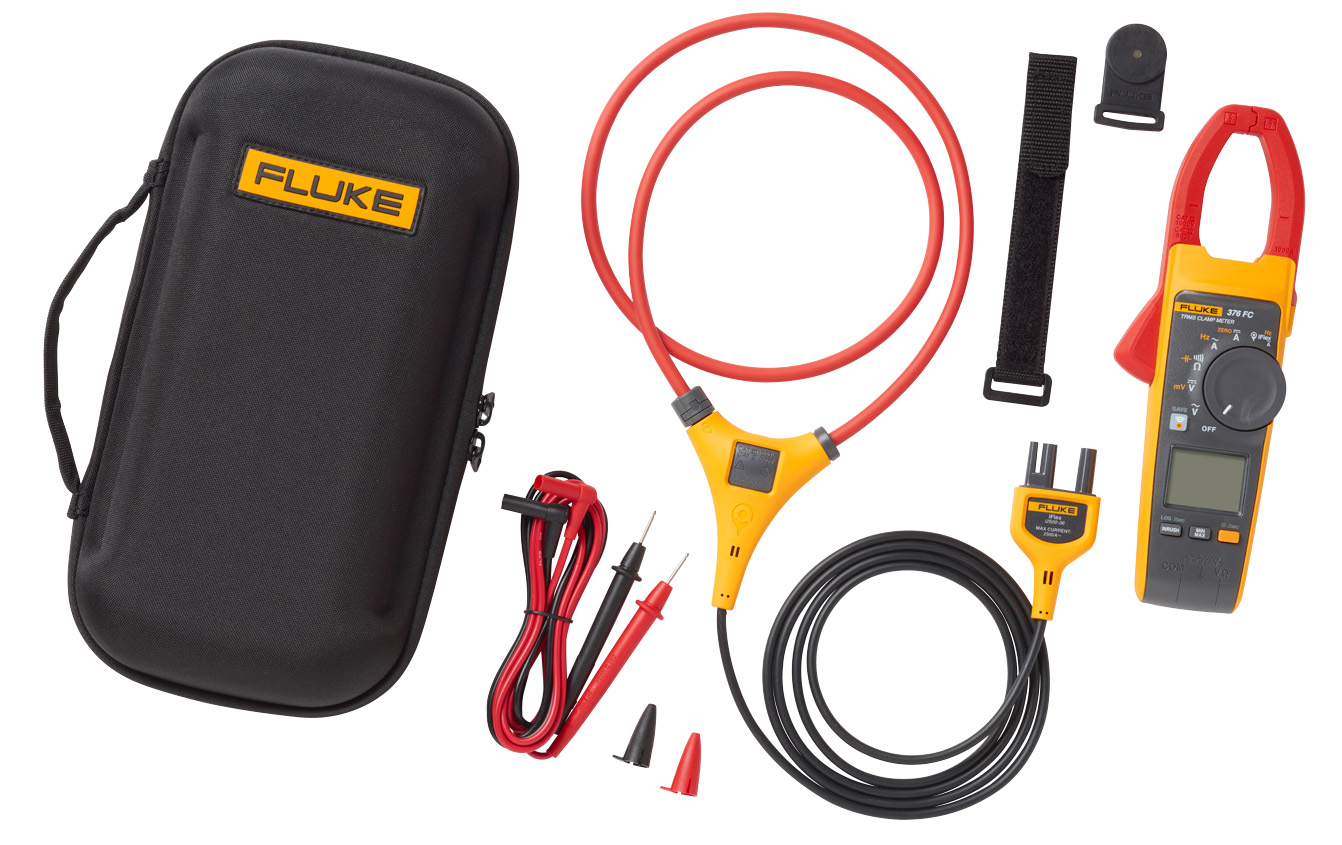

What's included with the Fluke 376 FC

  • 18-inch iFlex flexible current probe
  • TL75 test leads
  • TPAK magnetic hanging strap
  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • Two AA Alkaline batteries
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.

Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Fluke 376 TRMS AC/DC Clamp Meter with iFlex Flexible Current Probe: Overview


This video will demonstrate how the iFlex flexible current probe can expand the capabilities of this TRMS AC/DC clamp meter. Additionally, users can measure this instrument is compatible with the Fluke Connect app as well.

How to Select a Fluke Clamp Meter


In this video, the user will receive tips on how to select the right clamp meter. Additionally, clamp meters help plant maintenance, process technicians, electricians and utility maintenance professionals alike to conduct troubleshooting and general maintenance in a wide variety of applications.

Getting to know the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex


This video will serve as an overview of the Fluke 376 FC True RMS AC/DC Clamp Meter. The iFlex™ current probe can expand the capabilities of the clamp meter by getting into hard-to-reach places.
