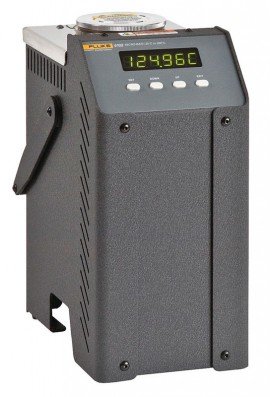

Fluke 6102-156 Liquid Bath Calibrator, 35 to 200°C

Model: 6102-156

Worlds smallest portable calibration bath that can be transported with fluid in them. This model uses a fluid medium which eliminates the problems of fit and immersion issues.

This product has been discontinued. Click here for the replacement model(s).



Fluke 6102-156 Liquid Bath Calibrator, 35 to 200°C Offers

Features

  • World's smallest portable calibration baths can be transported with the fluid in them
  • Stable to ±0.03°C or better, depending on the fluid you use
  • Uniformity is ±0.02°C or better for low uncertainties using a reference thermometer
  • Display accuracy has been improved to ±0.25°C for quick calibrations without a reference thermometer
  • With a 48mm (1.9") diameter, 140mm (5.5") deep tank, user can calibrate any type of sensor including short, square, or odd-shaped sensors
  • Problems of fit and immersion are virtually eliminated by using a fluid medium rather than a dry-block calibrator
  • Micro-Baths are perfect for liquid-in-glass and bimetal thermometers
  • All models have RS-232 ports, come with Interface-it software, and can be used with MET/TEMP II software
  • Also included are contacts to calibrate a thermal switch, eight set-point memory storage, ramp-rate adjust, and over-temperature safety cutout
  • Cold Micro-Baths are CFC-free as well as compressor-free

Applications

Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration

Fluke 6102-156 Specifications

Temperature Range 35 to 200°C (95 to 392°F)
Stability ±0.02°C @ 100°C; ±0.03°C @ 200°C (oil 5013)
Accuracy ±0.25°C
Uniformity ±0.02°C
Resolution 0.01°C/°F
Heating Time 25 to 200°C: 40 minutes
Cooling Time 200 to 100°C: 35 minutes
Fluid Volume 0.75L
Well Size 2.5" dia. x 5.5" deep (64 x 139 mm) Access opening is 1.9" (48 mm) dia.
Click here for complete specifications on the Fluke 6102-156

What's included with the Fluke 6102-156

  • Fluke 6102-156 Liquid Bath Calibrator, 35 to 200°C
  • Accessories

    Click on a category to view a selection of compatible accessories with the Fluke 6102-156 Liquid Bath Calibrator, 35 to 200°C.

    Fluke 2083 Tank Extension Adapter, 3" 2083
    Tank Extension Adapter for the 6102, 7102 and 7103 Liquid Bath Calibrators.
    $703.80 CAD

    was $782.00


    Learn More

    Fluke 9310 Carrying Case for the Fluke 6102 9310
    Carrying case for the 6102 Liquid Bath Calibrator.
    $1,321.00 CAD

    Learn More

    Fluke 2082-M Spare Tank Lid for the Fluke 6102 2082-M
    Spare Tank Lid for the 6102 Liquid Bath Calibrator.
    $200.70 CAD

    was $223.00


    Learn More

    Fluke 5010-1L Silicone Oil, Type 200.50, 1L, -40 to 130°C 5010-1L
    Silicone oil for the 6102, 7102 and 7103 Liquid Bath Calibrators.
    $221.40 CAD

    was $246.00


    Learn More

    Fluke 5013-1L Silicone Oil, Type 200.20, 1L, 10 to 230°C 5013-1L
    Silicone oil for the Fluke 6102, 7102 and 7103 Liquid Bath Calibrators.
    $207.90 CAD

    was $231.00


    Learn More
