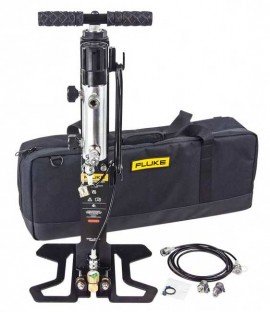

Fluke 700HPPK-MET Pneumatic Test Pump/Comparator Kit, 21 mPa, Metric

Model: 700HPPK-MET

The portable and lightweight design of the pump makes it an ideal choice for calibration technicians, test engineers, and instrument technicians.

$6,079.00 CAD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 700HPPK-MET Offers

Generates and adjusts pneumatic pressures up to 21 MPa (3000 psi), without requiring a nitrogen bottle or other external pressure supply. It supplies pressure to devices under test (DUTs) that include transmitters, controllers, pilots, digital and analog gauges, and more. It's the perfect solution for generating high pressure in the field, where conditions and operating surfaces can vary.

Features

  • No weights to load and unload, transport or send out for calibration
  • Provides real-time pressure indication with no need to know and correct for local gravity or ambient temperature
  • No piston-cylinder changes
  • No significant sensitivity to level or vibration
  • Able to set and read any pressure value exactly, no minimum increment limited by smallest available masses; perfect for applications that require setting a nominal pressure precisely on the device under test and measuring it, such as analog gauge calibration
  • Operates in any unit of measure, switching easily from one unit to the next

Applications

  • Natural gas transmission and distribution
  • Process
  • Aerospace and defence

Fluke 700HPPK-MET Specifications

Maximum Working Pressure 21 Mpa, 3000 psi
Time to Generate Full Scale Pressure with 10cc Volume (s) 20
Reference Gauge Connection 1/4 NPT, Quick Connect
Inlet Supply Contamination Protection Desiccant Filter
DUT Contamination Protection Filter 100 Micron
Fine Adjustment Resolution 0.05% rdg
Maximum Leak Rate Isolation Valve Closed: 0.01% rdg
Dimensions 66 x 30.5 x 13cm (26 x 12 x 5")
Weight 7.2 kg (15.8 lbs)
Click here for complete specifications on the Fluke 700HPPK-MET

What's included with the Fluke 700HPPK-MET

  • Pump/Comparator
  • High Pressure Pneumatic Quick Service Kit (Seals for Pump)
  • Dry Pac Refill
  • Silicone Grease
  • High Pressure Hose
  • Test Port Adapters
  • Canvas Carrying Bag

How To Set Up the Fluke 700 HPPK Pneumatic Test Pump


This video will go over how to set up this Fluke 700 HPPK test pump kit and its main features. This unit generates and adjusts pneumatic pressure up to 21 MPa (3000 psi). Additionally, users don't need an external pressure supply to use this product.
