Fluke 707 Loop Calibrator, 0-28 V, .015% Accuracy-
Downloads: datasheet manual

Ask an Expert

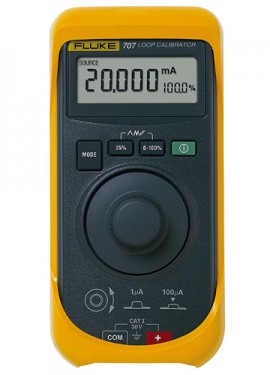

Fluke 707 Loop Calibrator, 0-28 V, .015% Accuracy

Model: 707

Loop calibrator is ideal for calibration, repair and maintenance of current loops.

Traceable Calibration Certificate for your 707 Loop Calibrator

$1,824.19 CAD

Availability:
2 in Stock


Fluke 707 Offers


The fastest, one-handed tool for loop checks.
The Fluke 707 Loop Calibrator is a high performance solution for calibration, repair and maintenance of current loops. Use it to temporarily replace the power source in a current loop. With the calibrator in control of the current, you can accurately set the current between 4 and 20 mA. This allows you to control the loop and the devices connected to it - which means you can control and calibrate actuators and indicators in that loop
Click your way to the precise milliamp value you want with Fluke 707's "Quick Click" knob interface making it extremely fast and easy to use. Each click changes the value by 0.001 mA. Press and click to change it in increments of 0.100 mA. The large digital display shows you. The click lets you feel it.
The HART mode on the Fluke 707 connects 250 ohm resistor with 24 V loop for compatibility with HART communicators.
For the intrinsically safe version - look at the Fluke 707Ex Intrinsically Safe Loop Calibrator
For a lower price - look at the Fluke 705 Loop Calibrator
Also, see the Fluke 715 Volt/mA Calibrator

Fluke 707 Specifications

Current Measurement Range: 0 to 24 mA, Resolution: 0.001 mA, Accuracy: 0.015% Rdg + 2 LSD
Current Sourcing Range: 0 to 20 mA or 4 to 20 mA, Accuracy: 0.015% Rdg + 2 LSD, Drive Capability: 1200 Ω; 950 Ω at 20 mA in HART mode
Current Simulation Range: 0 to 20 mA or 4 to 20 mA, Accuracy: 0.015% Rdg + 2 LSD, Ext. loop voltage requirement: 12-30 V
Loop Power While measuring mA, 24 V
Voltage measurement Range: 0 to 28 V DC, Resolution: 1 mV, Accuracy: 0.015% Rdg + 2 LSD
Operating Temperature -10 to 55°C
Humidity (Without Condensation) 0 to 90% (0 to 35°C); 0 to 70% (35 to 55°C)
Temperature Coefficient -10 to 18°C, 28 to 55°C, ±.005% of range per °C
Safety CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992 and EN55022:1994 Class B
Max. Voltage 30V (protection circuit for 230V)
Size 152 x 70 x 41 mm
Weight 224 g (340 g including holster)
Batteries One 9V battery Alkaline
Click here for complete specifications on the Fluke 707

What's included with the Fluke 707

  • Fluke 707 Loop Calibrator
  • Fluke AC72 Alligator Clips
  • Fluke TL75 safety-designed test lead set
  • Fluke C10 protective yellow holster with Flex-Stand™
  • Instruction sheet
