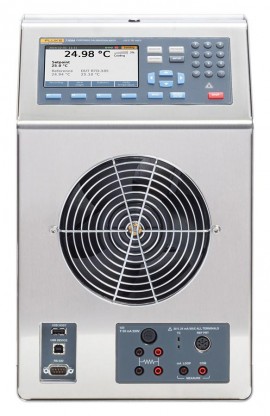

Fluke 7109A-156 Portable Calibration Bath, -25°C to 140°C

Model: 7109A-156

This bath features a large color display that indicates date and time, bath fluid temperature, setpoint temperature, control indicator when fluid is at setpoint, and heating status.

$15,058.00 CAD

Availability:
8 to 9 Weeks
Need a quote?




Fluke 7109A-156 Offers

Process manufacturing plants for pharmaceuticals,biotechnology, and food production utilize many sanitary temperature sensors that require regular calibration. Production must stop while the calibrations are taking place. Therefore, more calibration throughput means less plant downtime. And in businesses where even a few tenths of a degree Celsius can cost thousands of dollars in ruined product, temperature accuracy is crucial to maintaining quality.

The Fluke Calibration 7109A Portable Calibration Baths let process industry professionals calibrate four times more sanitary sensors per batch in less time and with twice the accuracy of other baths in this class. Up to four tri-clamp sanitary sensors fit easily into these baths for calibration at ± 0.1°C display accuracy. Throughput is even higher for sanitary RTDs with small or no flanges.

Professionals working in clean process industries,including facilities managers, production engineers and calibration technicians, prefer these baths for a variety of reasons. Facilities managers who need to meet U.S. FDA and ISO clean room standards like the baths' stainless steel casing that stands up to harsh cleaning solutions. They depend on the 7109A to help maintain the accuracy of the plant's temperature sensors, thus reducing the possibility of an expensive product batch loss.

Production engineers also appreciate the baths' accuracy, which helps them control sensor out-oftolerance conditions. Moreover, they prefer to use a bath designed specifically for clean room calibration throughput. No more need to make do with equipment designed for some other application.

Calibration technicians who perform calibrations on platforms, in crawl spaces, and other hardto- reach parts of the plant enjoy the portability and clean room compatibility (i.e. easy to sanitize, don't harbor bacteria) of these baths.

Features

  • Four times more calibration throughput with twice the accuracy of Micro-Baths and dry-block calibrators
  • Calibrate up to four tri-clamp sanitary sensors at a time instead of just one
  • Increase calibration efficiency and reduce production downtime.
  • Excellent display accuracy of ±0.1°C provides 4:1 test uncertainty ratio (TUR) for critical applications
  • Easy to transport up-stairs and across catwalks
  • Clean room compatible. Stainless steel casing withstands sterilizing chemicals and is rust proof

Applications

  • Process Manufacturing
  • Pharmaceutical
  • Biotechnology
  • Food Production
  • Clean Process Industries
  • Facilities Managers
  • Production Engineers
  • Calibration Technicians

Fluke 7109A-156 Specifications

Size Height: 382 mm (15 in) / Width: 242 mm (9.5 in) / Depth: 400 mm (15.7 in)
Fluid Volume 2.5 liters (0.66 gallons)
Fluid Working Area 75 mm x 75 mm (3 in x 3 in)
Maximum Fluid Depth 154 mm (6.1 in)
Factory Calibration Traceable NVLAP-accredited calibration included
Temperature Range (@25°C Ambient Temperature) –25 to 140°C (–15°C cover off)
Stability 0.01°C
Typical Heating Time –25 to 25°C: 35 minutes / 25 to 140°C: 55 minutes
Typical Cooling Time 140 to 25°C: 45 minutes / 25 to –25°C: 75 minutes
Typical Settling Time 10 minutes
Click here for complete specifications on the Fluke 7109A-156

What's included with the Fluke 7109A-156

  • Mains Power Cord
  • USB Cable
  • Probe Access Cover
  • Transport Tank Cover
  • Printed Safety Information
  • Product CD
  • Report of Calibration With Label

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 7109A-156 Portable Calibration Bath, -25°C to 140°C.

Fluke 7109-2080 Fluid Overflow Kit 7109-2080
For use with the Fluke 6109 and 7109 Series Portable Calibration Baths.
$293.00 CAD

Learn More

Fluke 7109-2051 Single Probe Clamp Kit 7109-2051
For use with the Fluke 6109 and 7109 Series Portable Calibration Baths.
$256.00 CAD

Learn More

Fluke 7109-2027 Adjustable Probe Holding Fixture 7109-2027
For use with the Fluke 6109 and 7109 Series Portable Calibration Baths.
$132.00 CAD

Learn More

Fluke 7109-2013-1 Stainless Steel Transport Cover 7109-2013-1
For use with the Fluke 6109 and 7109 Series Portable Calibration Baths.
$101.00 CAD

Learn More

Fluke 7109-2013-2 Stainless Steel Probe Access Cover 7109-2013-2
For use with the Fluke 6109 and 7109 Series Portable Calibration Baths.
$101.00 CAD

Learn More

Fluke 7109-CASE Carrying Case 7109-CASE
Hard transport case with wheels for the Fluke 6109 and 7109 Series Portable Calibration Baths.
$1,342.00 CAD

Learn More
