Model: 712B/EN | Order No: 712B

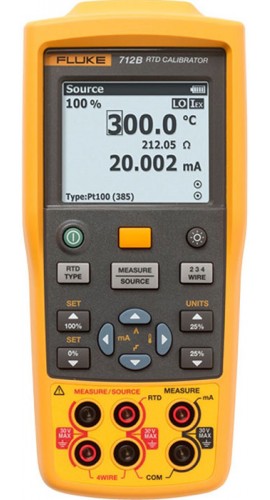

This handheld, battery operated calibrator measures and sources a variety of RTD types and resistances with isolated channel to measure 4 to 20mA while sourcing a temperature signal. Can be configured to 0% and 100% source settings for quick 25% linearity checks.
Ideal for the professional that wants a highly accurate, easy-to-use, single function temperature calibrator. Capable of measuring and simulating 13 different RTD types and resistances. This calibrator was designed for convenience and functionality on the job site, including a convenient hanging strap designed for use with this model. With dual inputs and a backlit display for easy interpretation of measurements.
|Maximum voltage applied between any terminal and earth ground or between any two terminals||30V|
|Operating Temperature||-10 to 50°C|
|Storage Temperature||-30 to 60°C|
|Operating Altitude||2,000 Meters|
|Storage Altitude||12,000 Meters|
|Drop Text Requirements||1 Meter|
|IP Rating||IEC 60529: IP52|
|Electromagnetic Environment||IEC 61326-1, Portable|
|Safety||IEC 61010-1, Max 30 V to Earth, Pollution Degree 2|
|Power supply||4 x AA NEDA 1.5A IEC LR6 Batteries|
|Dimensions||52.5 x 84 x 188.5mm|
