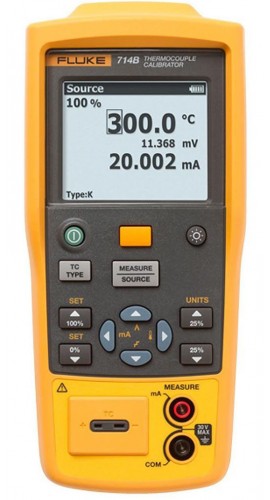

Fluke 714B Temperature Calibrator, Dual Inputs

Model: 714B/EN | Order No: 714B

A highly accurate, easy-to-use, single function thermocouple temperature calibrator, measure 4 to 20mA signals while sourcing a temperature signal.

Add In-House ISO Certified Calibration to your 714B/EN


Add In-House ISO Certified Calibration to your 714B/EN


$2,099.00 CAD

Availability:
1 in Stock
Need a quote?




Fluke 714B/EN Offers

The Fluke 714 Thermocouple Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight, and offers an easy-to-use push button interface. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.

Features

  • Measure temperature from TC output
  • Simulate (17) different RTD types and resistance
  • Operable with nine types of thermocouples
  • Calibrate linear TC transmitter with mV source function
  • Selectable °F or °C
  • Dual inputs and backlit display for easy interpretation of measurements
  • Thermocouple mini-jack termination
  • Holster features test lead storage
  • Power down settings remembered at power up for easy restart of tests
  • Compatible with TPAK magnetic hanging system
  • Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal

Applications

  • Petro-Chemical
  • Oil and Gas
  • Food and Beverage
  • Pharmaceutical

Fluke 714B/EN Specifications

Max. Voltage 30 V
Operating Temp. -10 to 50 °C
Storage temperature - 30 to 60 °C
Operating Altitude 2,000 meters
Storage Altitude 12,000 meters
Vibration requirements MIL-T-28800E, Class 2
Drop text requirements 1 meter
IP Rating IEC 60529: IP52
Electromagnetic environment IEC 61326-1, Portable
Safety IEC 61010-1, Max 30 V to earth, Pollution Degree 2
Power supply 4 AA NEDA 1.5A IEC LR6 batteries
Size (H x W x L) 52.5 mm x 84 mm x 188.5 mm
Weight 515 g
Click here for complete specifications on the Fluke 714B/EN

What's included with the Fluke 714B/EN

  • Temperature Calibrator
  • Protective Yellow Holster with Test Lead Storage
  • Instructions Sheet (14 languages)
  • Single 9V Alkaline Battery
  • NIST-Traceable Calibration Report and Data

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 714B Temperature Calibrator, Dual Inputs.

Fluke 700TC1 Thermocouple Plug Kit 700TC1
10-Piece Thermocouple Mini-Plug Connector Kit for 700 and 740 Series.
$139.50 CAD

was $155.00


Learn More

Fluke 700TC2 Thermocouple Plug Kit 700TC2
7-Piece Thermocouple Mini-Plug Connector Kit.
$139.50 CAD

was $155.00


Learn More


Fluke 80PK-8 Pipe Clamp Temperature Probe 80PK-8
Uses Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces. Designed to reliably measure the temperature of pipes ¼" (6 mm) to 1⅜" (35 mm) in diameter, at temperatures between -20 and 300°F (-29 and 149°C), while retaining a long service life.
$241.20 CAD

was $268.00


Learn More

Fluke 80PK-3A Surface Temperature Probe 80PK-3A
Compatible with any temperature measuring instrument that accepts type K thermocouples and features a miniature connector input. Additionally, this surface temperature probe is ideal for measuring the temperature of flat or slightly convex surfaces, with an exposed junction to allow direct contact with the surface being measured.
$215.10 CAD

was $239.00


Learn More

Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe 80PK-27
Compatible with any temperature measuring instrument that accepts type K thermocouples features a miniature connector input and a cold reference junction compensation. Additionally, this industrial surface temperature probe is ideal for surfaces in rugged environments.
$443.70 CAD

was $493.00


Learn More

Fluke 80PK-26 SureGrip Tapered Temperature Probe 80PK-26
Features a tapered tip, making this tapered temperature probe ideal for use in air, non-caustic gas, and surface applications.
$158.40 CAD

was $176.00


Learn More

Fluke 80PK-25 SureGrip™ Piercing Temperature Probe 80PK-25
A K type thermocouple probe that is suitable for the food industry, liquids, and gel.
$158.40 CAD

was $176.00


Learn More

Fluke 80PK-24 SureGrip™ Air Temperature Probe 80PK-24
A K type thermocouple probe ideal for use in air and non-caustic gas measurements. Additionally, this air temperature probe features a bead protected by perforated baffle.
$158.40 CAD

was $176.00


Learn More

Fluke 80PK-22 SureGrip™ Immersion Temperature Probe 80PK-22
Compatible with any temperature measuring instrument that accepts K type thermocouples and features a miniature connector input. Additionally, this immersion temperature probe is for use in liquid and gels, and can also be used as a general-purpose probe.
$139.50 CAD

was $155.00


Learn More

Fluke 80PK-1 Bead Probe 80PK-1
A K type thermocouple ideal for general purpose applications.
$56.32 CAD

Learn More

$342.00 CAD

was $380.00


Learn More

Fluke 80CK-M type K Male Mini-Connectors 80CK-M
Yellow connectors with isothermal screw terminal. Pack of 2.
$46.46 CAD

Learn More
