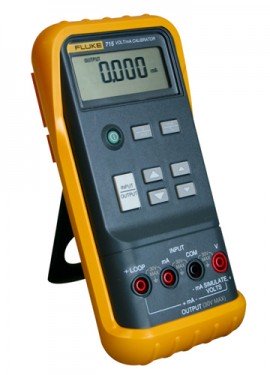

Fluke 715 Volt/mA Calibrator

Model: 715

Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution. Measure voltage output process signals from PLCs and transmitters.

Traceable Calibration Certificate for your 715 Volt/mA Calibrator

$2,603.99 CAD

Availability:
1 in Stock


Fluke 715 Offers

The Fluke 715 Volt/mA Calibrator offer a clear new choice in single-function calibrators.
This hand-held calibrator delivers outstanding performance, durability and reliability. Offered in a rugged package, the calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Documenting Process Calibrators, the Fluke 715 is easy to use.
The Fluke 715 Volt/mA calibrator is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
To compare Loop Calibrators, see the Fluke 705 and the Fluke 707

Fluke 715 Specifications

Function specifications
Measure / Source mV
Range: 0 to 100 mV
Resolution: 0.01 mV
Accuracy0.02% + 2 counts
Measure / Source V
Range: 0 to 10 V
Resolution: 0.001 V
Accuracy: 0.02% + 2 counts
Measure / Source/ Simulate mA (% of span)
Range: 0 to 24 mA (-25% to 125%)
Resolution: 0.001 mA
Accuracy0.015% + 2 counts

Note: Sink (simulate transmitter) Display mA or % of span

Specifications
Loop Power
Range24 V dc
Accuracy: +/- 10%

Note: Drive; 20 mA into 1000 Ω for battery >6.8V; 700 Ω for battery 5.8 to 6.8 V
Display

Clear 5 digit LCD

Environmental Specifications
Operating temperature

-10°C to 55°C
Storage temperature

-40°C to 60°C
Humidity (Without Condensation)

95% (10 °C to 30 °C)

75% (30 °C to 40 °C)

45% (40 °C to 50 °C)

35% (50 °C to 55 °C)
Operating Altitude

3,000m max

Safety Specifications
Safety

CSA C22.2 No. 1010.1:1992

Mechanical & General Specifications
Size

187 mm L x 87mm W x 32 mm

(7.93 in. L x 3.86 in. W x 2.06 in D)
Weight

Approx. 330 g

(21 oz)
Warranty

3 years
Shock & Vibration

Random, 2G, 5-500 Hz

1m drop test
Battery type

Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

Click here for complete specifications on the Fluke 715

What's included with the Fluke 715


  • Protective Yellow Holster with Test Lead Storage
  • Instructions Sheet (14 languages)
  • single 9V alkaline battery
  • Test Leads and Alligator Clips
