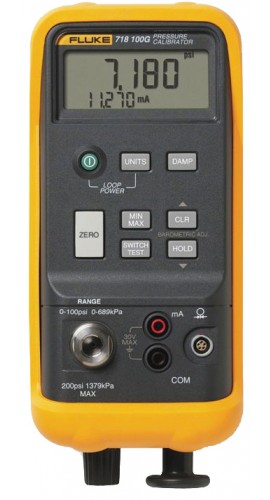

Fluke 718-100US Pressure Calibrator with Pressure Vacuum Pump, -12 to 100 PSI

Model: 718-100US

Take pressure source and milliamp measurements to calibrate and maintain almost any pressure device.

Traceable Calibration Certificate for your 718-100US Pressure Calibrator with Pressure Vacuum Pump

$5,472.59 CAD

Availability:
2 to 3 Weeks


Fluke 718-100US Offers

The complete solution to pressure calibration

Fluke 718-100G Pressure Calibrator is a compact, lightweight and easy to carry calibrator that delivers outstanding performance, durability and reliability. The Fluke 718 Calibrator is EMI tolerant, dust and splash resistant and features a removable battery door for quick battery changes.
The Fluke 718 simultaneously measures pressure and mA and delivers 24 volt loop supply while measuring mA. The Fluke 718 provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
This new Pressure Calibrator presents cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. Connect it with any of the Fluke pressure modules to address a wide variety of gage, differential, absolute, vacuum and dual (compound) pressure applications.

Measure:

  • Temperature from Thermocouple output
  • Loop Current
  • Pressure, 0.05% of full scale
  • Temperature from RTD output
  • Pressure to 10,000 psi/69 mPa using one of 29 Fluke pressure modules
  • Pressure, 0.05% of full scale with internal 100 psig sensor

Fluke 718-100US Specifications

Range -12 to 100 PSI, -850 mbar to 7 bar (internal sensor) Over Pressure 3xFS
Resolution 0.01 psi, 1 mbar
Accuracy 0.05% of full scale
Functions Zero, Min, Max, Hold, Damp, Note: for use with non-corrosive gasses
Loop Power Range 24 V dc
Loop Power Accuracy +/- 10%
Measure Accuracy Range 0 to 24 mA
Measure Accuracy Resolution 0.001 mA
Measure Accuracy 0.025% + 1 count
Display LCD, 5 digit pressure and current simultaneous
Operating temperature -10 to 55°C
Maximum voltage 30V
Size 216 mm L x 94 mm W x 67 mm (8.5 in. L X 3.72 in. W X 2.61in.)
Weight Approx. 992g (35 oz)
Shock & Vibration Random, 2G, 5-500 Hz, 1m drop test
Battery Type Two 9V batteries, ANSI/NEDA 1604A or IEC 6LR61, Battery life: 4 to 20 hours, typical, depending on functions
Click here for complete specifications on the Fluke 718-100US

What's included with the Fluke 718-100US


  • Fluke 718-100US Pressure Calibrator with Vacuum Pump
  • Protective Yellow Holster with test lead storage
  • Instructions Sheet (14 languages)
  • Test Leads and Alligator Clip
  • Two 9V alkaline batteries
