Fluke 718-1G Pressure Calibrator, -1 to 1 PSI-
Downloads: datasheet manual

Ask an Expert

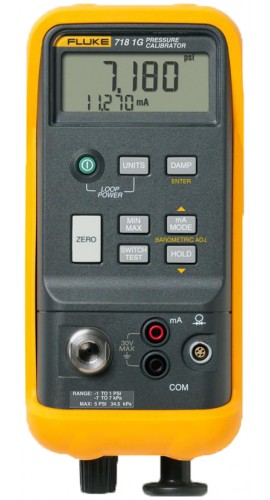

Fluke 718-1G Pressure Calibrator, -1 to 1 PSI

Model: 718-1G

Provides a total pressure calibration solution for transmitters, gauges and switches.

Traceable Calibration Certificate for your 718-1G Pressure Calibrator

$5,472.59 CAD

Availability:
1 to 2 Weeks


Fluke 718-1G Offers

The complete solution to pressure calibration

Fluke 718-1G Pressure Calibrator is a compact, lightweight and easy to carry calibrator that delivers outstanding performance, durability and reliability. The Fluke 718 Calibrator is EMI tolerant, dust and splash resistant and features a removable battery door for quick battery changes.
The Fluke 718 simultaneously measures pressure and mA and delivers 24 volt loop supply while measuring mA. The Fluke 718 provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
This new Pressure Calibrator presents cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. Connect it with any of the Fluke pressure modules to address a wide variety of gage, differential, absolute, vacuum and dual (compound) pressure applications.

Measure:

  • Temperature from Thermocouple output
  • Loop Current
  • Pressure, 0.05% of full scale
  • Temperature from RTD output
  • Pressure to 10,000 psi/69 mPa using one of 29 Fluke pressure modules
  • Pressure, 0.05% of full scale with internal 30 psig sensor

Fluke 718-1G Specifications

Range -1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
Resolution 0.0001 psi, 0.001 mbar
Over Pressure Over Pressure 5xFS
Functions Zero, Min, Max, Hold, Damp
Maximum voltage applied between either mA terminal and earth ground or between the mA terminals 30 V
Storage temp. -40 °C to 60 °C
Operating temperature -10 °C to 55 °C
Shock 1 meter drop test, per IEC 61010-1
Size 60 mm H x 87 mm W x 210 mm L (2.38 in H x 3.41 in W x 8.28 in L); with holster: 66 mm H x 94 mm W x 216 mm L (2.61 in H x 3.72 in W x 8.5 in L)
Weight 737 g (26 oz); with holster: 992 g (35 oz)
Click here for complete specifications on the Fluke 718-1G

What's included with the Fluke 718-1G

  • Fluke 718-1G Pressure Calibrator
  • Protective Yellow Holster with test lead storage
  • Instructions Sheet (14 languages)
  • Test Leads and Alligator Clip
  • Two 9V alkaline batteries
