Fluke 718EX-100 Intrinsically Safe Pressure Calibrator, 100 PSIG-
Downloads: datasheet manual

Ask an Expert

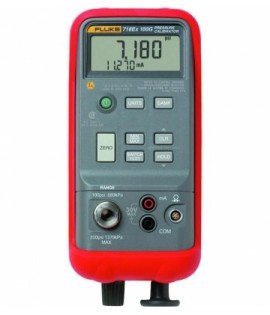

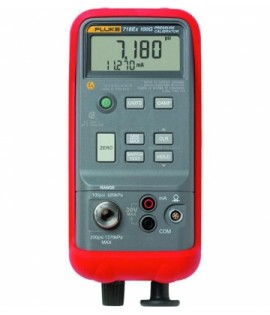

Fluke 718EX-100 Intrinsically Safe Pressure Calibrator, 100 PSIG

Model: 718EX-100

The Fluke 718Ex is a powerful intrinsically safe self-contained portable pressure calibrator for usage in explosion endangered areas.

Traceable Calibration Certificate for your 718EX-100 Intrinsically Safe Pressure Calibrator

$7,649.59 CAD

Availability:
13 to 14 Weeks


Fluke 718EX-100 Offers

Compact and professional pressure calibration tools.

Fluke 718Ex-100G Pressure Calibrator is a new compact, lightweight and easy to carry calibrator that delivers outstanding performance, durability, reliability and is powerful intrinsically safe, self contained pressure calibrator for usage in Explosion endangered areas. The Fluke 718Ex Calibrator is EMI tolerant, dust and splash resistant and features a removable battery door for quick battery changes.
The Fluke 718Ex simultaneously measures pressure and mA and delivers 24 volt loop supply while measuring mA. The Fluke 718Ex provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
This new Pressure Calibrator presents cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. Connect it with any of the Fluke pressure modules to address a wide variety of gage, differential, absolute, vacuum and dual (compound) pressure applications.
Measure:
* Temperature from Thermocouple output
* Loop Current
* Pressure, 0.05% of full scale
* Temperature from RTD output
* Pressure to 10,000 psi/69 mPa using one of 29 Fluke pressure modules
* Pressure, 0.05% of full scale with internal 100 psig sensor

Fluke 718EX-100 Specifications

Range 12 psi to 30 psi (-82.7 kPa to 207 kPa)
Resolution .001 psi (0.01 kPa)
Accuracy .05 % FS
Engineering Units (in Hg) PSI, in. H2O (4 °C), in. H2O (20 °C), kPa, cm H2O (4 °C), cm H2O (20 °C), BAR, mBAR, kg/cm2, mmHg, in Hg
Media Gasses (non corrosive)
Overpressure 2 x F.S. on 100G
Pressure input 1/8 in. NPT pressure fitting
Pressure module input LEMO connector
Current input Shrouded banana jacks
Power One 9-volt alkaline battery
Battery life 4 to 20 hours, depending on functions used
Weight 35 oz (992 g)
Size 216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)
Click here for complete specifications on the Fluke 718EX-100

What's included with the Fluke 718EX-100

  • Intrinsically Safe Pressure Calibrator
  • Protective Red Holster
  • TL75 Test Leads
  • AC72 Test Clips
  • CD Users Manuals (English, French, German, Spanish, Italian, Dutch, Norwegian, Danish, Swedish, Finnish, Portuguese, Korean, Chinese, Japanese)
  • Fluke 718Ex CCD content control drawing
  • NIST Traceable calibration report and data
