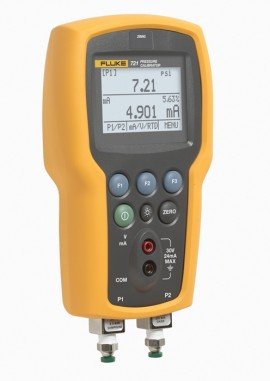

Fluke 721 Dual Sensor Pressure Calibrators

Model: 721 | Order No: 721 Series

Precision Pressure Calibrator with dual isolated sensors for gas custody transfer applications.

Ordering Information

Pressure Calibration and Temperature Measurement for Custody Transfer Applications

The ideal tool for gas custody transfer applications is the Fluke 721 Precision Pressure Calibrator. With dual isolated pressure sensors, it allows you to take simultaneous static and differential pressure measurements with a single tool.

The 721 can be configured by selecting either a 16 PSI (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).

Fluke 721 Series Specifications

Specifications 1-Year
Low pressure sensor	Range	Resolution	Accuracy
	-14 psi to +16 psi, -0.97 bar to 1.1 bar	0.001 psi, 0.0001 bar	0.025 % of full scale
High pressure sensor	-12 psi to +100 psi, -0.83 bar to 6.9 bar	0.01 psi, 0.0001 bar	0.025 % of full scale
General Specifications
Instrument setup recall	Last used on power-up
Environmental	Operating temperature -10 °C to +50 °C Storage temperature (without batteries) -20 °C to +60 °C
Altitude	2,000 meters
Ingress protection	IP-40
Power requirements	6.0 v dc
Battery life	>35 hours, typical usage
Batteries required	(4) Standard AA cells
Dimensions (HxWxD)	7.9" X 4.3" X 2.3" (20 cm X 11 cm X 5.8 cm)
Weight	03539 kg (1 lb 3 oz)
Connectors/ports pressure	Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe
Electrical and Temperature Measurement 1-Year
Function	Range	Resolution	Accuracy
mA measure	0 to 24 mA	0.001 mA	±0.015% of rdg ±0.002mA
VDC measure	0 to 30 VDC	0.001V	±0.015% of rdg ±0.002V
*Temperature measure (RTD/ Ohms)	-40 °C to 150 °C (-40 °F to 302 °F)	0.01 °C, 0.01 °F	±0.015% of rdg ±0.02 ohms ±0.1°C (±0.2°F) ±0.25 degC (±0.45 °F) combined uncertainty when using 720 RTD probe accessory
Loop power supply	24V	N/A	24 mA @ 24V
*Temperature measurement requires optional Fluke-720RTD Pt-100 RTD probe available as an accessory
Temperature Effect
No effect on accuracy on all functions from 15 °C to 35 °C
Add ± 0.002 % F.S./°C for temps outside of 15 °C to 35 °C
Available Pressure Engineering Units
psi, bar, mbar, kPa, kgcm2, cmH₂O@4°C, cmH₂O@20°C, mH₂O@4°C, mH₂O@20°C, inH₂O@4°C, inH₂O@20°C, inH₂O@60°F, mmHg@0°C, inHg@0°C, ftH₂O@4°C, ftH₂O@20°C, ftH₂O@60°F

What's Included with the Fluke 721 Series

Dual Sensor Pressure Calibrator
Soft case
Four (4) AA batteries
Manual
Traceable calibration certificate
Test leads
