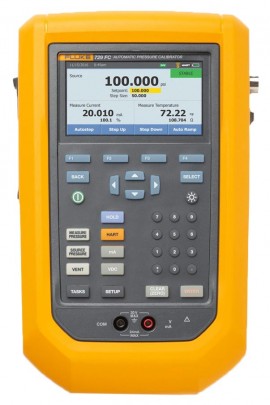

Fluke 729 300G FC Pressure Calibrator, 300 PSI, 20 Bar with Fluke Connect

Model: 729 300G FC | Order No: 729 300GFC

This portable automatic pressure calibrator simplifies pressure calibration and provides faster and more accurate test results for process technicians.

Add In-House ISO Certified Calibration to your 729 300G FC

$12,676.00 CAD

1 to 2 Weeks
Need a quote?

Fluke 729 300G FC Offers

The Fluke 729 Automatic Pressure Calibrator has been designed specifically with process technicians in mind to simplify the pressure calibration process and provide faster, more accurate test results. Technicians know that calibrating pressure can be a time consuming task, but the 729 makes it easier than ever with an internal electric pump that provides automatic pressure generation and regulation in an in an easy-to-use, rugged, portable package.

The ideal portable pressure calibrator, the 729 allows you to simply type in a target pressure, and the calibrator will automatically pump to the desired set-point. Then, internal fine adjustment control automatically stabilizes the pressure at the requested value.

The Fluke 729 can also automatically test multiple pressure test points and automatically document the results. Calibration is as easy as typing in the starting and ending pressure and the number of test points and tolerance level. The 729 does the rest.

Built-in HART communication capabilities enable HART transmitter mA adjustments, light HART configuration and the ability to adjust to applied 0 % and 100 % values.

Upload and manage documented calibration results with DPCTrack2™ Calibration Management Software, making it easy to manage your instrumentation, create scheduled tests and reports, and manage calibration data.


  • Automatic pressure generation and regulation to 300 psi
  • Easily document the process using onboard test templates
  • Automatic internal fine-pressure adjustment
  • Measure, source and simulate 4 to 20 mA signals
  • 24V loop power for powering transmitters for tests
  • Bright dual/triple-channel color graphical display
  • HART communication for testing HART smart transmitters
  • Built in leak testing for verifying test setups for leakage
  • Rugged portable design with standard 3-year warranty
  • Fluke Connect® App compatibility. Measure temperature with optional 720RTD probe. On FC Models Only.
  • Measure Vdc for testing 1 V dc to 5 V dc output transmitters
  • Compatible with 700 Series and 750 Series pressure modules
  • Upload documented test results to DPCTrack2™ Calibration Management Software
  • Innovative semi-rigid carrying case designed for field work


  • Process Technicians
  • Calibration Labs
  • Pressure Sourcing
  • Control and Measurement

Fluke 729 300G FC Specifications

mA Measure, Source and Simulate Range 0 mA to 24 mA
Volts DC Measure Range 0 V dc to 30 V dc
mA DC Source, Simulate and Measure Resolution 1 μA
Voltage DC Measurement Resolution 1 mV
Accuracy 0.01 % ± 2 LSD all ranges (at 23°C ± 5°C)
Stability 20 ppm of full scale /°C from -10 to +18°C and 28 to +50°C
Loop Compliance Voltage 24 V dc @ 20 mA
mA Simulate External Voltage Requirement Resolution 12 V dc to 30 V dc
Temperature Resolution 0.01°C (0.01°F)
Drive Capability 1200 Ω without HART resistor, 950 Ω with internal HART resistor
Click here for complete specifications on the Fluke 729 300G FC

What's included with the Fluke 729 300G FC

  • Calibrator with Wireless Communication
  • Soft Case
  • Stackable Test Leads
  • AC280 Hook Clips
  • Alligator Clips
  • Test Probes
  • Magnetic Hanger Kit
  • Carrying Strap
  • Wireless Adapter
  • Quick Start Guide
  • Safety Sheet
  • Power Supply
  • Rechargeable Battery (installed)
  • Hose Kit with PUsh Fit Adapters
  • Hanging Clip
  • USB Cable
  • 1/8 in FNPT to 1/4 in FNPT Adapter
  • 1/8 in FNPT to F-M20 Adapter
  • 1/8 in FNPT to 1/4 in FBSP Adapter
  • PTFE Tape
  • 2x Sintered Filters
  • Water Trap Drain
  • Valve Tuning Hoses
