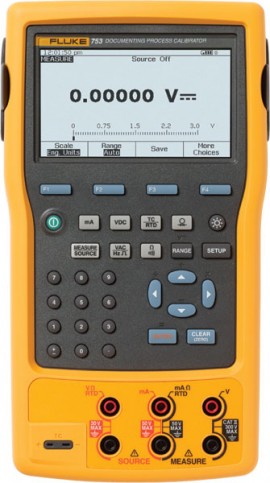

Fluke 753 Documenting Process Calibrator

Model: 753

Work smarter and faster with the Fluke 753 Documenting Process Calibrator. The 753 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device.

$7,945.00 CAD

Availability: 1 to 2 Weeks
Need a quote?




New! Fluke 753

You're going to love what we've done with your calibrator.

The Fluke 753 is everything you needed and wished for in the 743B and more!

The 753 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You'll fall in love with the new improved graphical screen, Li-on battery for longer life, USB port and new accessories to complete the package.

For documentation, the 753 automates calibration procedures and captures your data.

And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations.

Fluke 753 Features

Work smarter. Work faster.

The 753 is a power multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis.

  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
  • Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
  • Holds up to a full week of downloaded procedures and calibration results.
  • Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
  • Easy to use
  • Three year warranty
  • Bright white dual display. Read both sourced and measured parameters simultaneously.
  • Multi lingual interface
  • Rechargeable Li-Ion battery for 10 hour uninterrupted use. Includes gas gauge.
  • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.
  • Delivered with DPC/Track Sample software.
  • Compatible with many Asset Management software packages.

Fluke 753 Specifications

Operating Altitude 3000 m (9842 ft)
Storage Altitude 13000 m (42650 ft)
Operating Temperature -10 to 50 °C
Storage Temperature -20 to 60 °C
Relative Humidity (Maximum, non-condensing) 90 % to 35 °C, 75 % to 40 °C, 45 % to 50 °C
Protection Class Pollution Degree II IP 52
Click here for complete specifications on the Fluke 753

What's included with the Fluke 753

  • Fluke 753 Documenting Process Calibrator
  •
  • Three sets of stackable test leads
  • Three sets of TP220 test probes with three sets of "extended tooth" alligator clips
  • Two sets AC280 hook clips
  • BP7240 Li-ion battery pack
  • BC7240 battery charger
  • C799 field soft case
  • USB communication cable
  • Getting started guide
  • Instruction manual on CDROM
  • of calibration
  • PC/TRACK 2 sample software that enables upload and printing of calibration records
