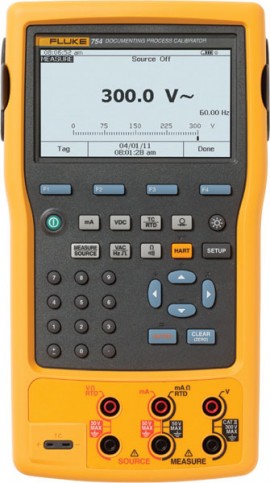

Fluke 754 Handheld Multi-Function Process Calibrators with HART Calibration

Model: 754

The 754 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. For documentation, the 754 automates calibration procedures and captures your data. It is also HART communication enabled to deliver an integrated communicating calibrator.

$9,995.00 CAD

Availability: 1 in Stock
Need a quote?




New! Fluke 754

You're going to love what we've done with your calibrator.

The Fluke 754 is everything you needed and wished for in the 744 and more! HART communication capability is combined to deliver an integrated communicating calibrator. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

The 754 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You'll fall in love with the new improved graphical screen, Li-on battery for longer life, USB port and new accessories to complete the package.

For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations. Supports popular instrumentation management software.

The 753 and 754, 743 and 744 work with the Fluke DPC/TRACK2™ software, and with popular programs from Honeywell Meridium, Emerson, Cornerstone, Yokogawa, Prime Technologies, Intergraph and others. It allows you to create procedures, instructions, and action lists to deliver fast, easy documentation.

Fluke 754 Features

Work smarter. Work faster.

The 754 is a power multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis. The 754 also features a powerful built in HART® interface capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.

  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
  • Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
  • Holds up to a full week of downloaded procedures and calibration results.
  • Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
  • Easy to use
  • Three year warranty
  • Bright white dual display. Read both sourced and measured parameters simultaneously.
  • Multi lingual interface
  • Rechargeable Li-Ion battery for 10 hour uninterrupted use. Includes gas gauge.
  • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.
  • Delivered with DPC/Track Sample software.
  • Compatible with many Asset Management software packages.

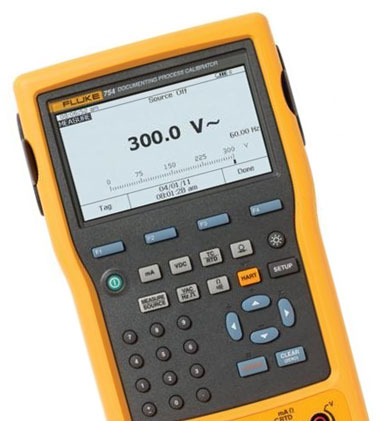

The Fluke 754 Documenting Process Calibrator-HART: Work smarter. Work faster.

HART Communication Protocol

The 753 and 754, 743 and 744 work with the Fluke software, and with popular programs from Honeywell Meridium, Emerson, Cornerstone, Yokogawa, Prime Technologies, Intergraph and others. It allows you to create procedures, instructions, and action lists to deliver fast, easy documentation

Fluke 754 Specifications

Range and 1 Year Accuracy
DC Voltage Measurement 100.00mV: 0.02% + 0.005mV
3.00000V: 0.02% + 0.00005V
30.0000V: 0.02% + 0.0005V
300.00V: 0.05% + 0.05V
AC Voltage Measurement 3.000V: 0.5% + 0.002V
30.00V: 0.5% + 0.02V
300.0V: 0.5% + 0.2V
DC Current Measurement 30.000mA: 0.01% + 5uA
110.00mA: 0.01% + 20uA
Resistance Measurement 10.000Ω: 0.05% + 50mΩ
100.00Ω: 0.05% + 50mΩ
1.0000kΩ: 0.05% + 0.5Ω
10.000kΩ: 0.1% + 10Ω
Frequency Measurement 1.00Hz to 110.00Hz: 0.05Hz
110.1Hz to 1100.0Hz: 0.5Hz
1.101kHz to 11.000kHz: 0.005kHz
11.01kHz to 50.00kHz: 0.05 kHz
DC Voltage Output 100.000mV:  0.015% + 0.005mV
1.00000V: 0.015% + 0.0005V
15.0000V: 0.015% + 0.0005V
DC Current Output 22.000mA: 0.01% + 0.003mA
Current sint (simulate transmitter): 0.01% + 0.007mA
Resistance Sourcing 10.000Ω: 0.01% + 10mΩ
100.00Ω: 0.01% + 20mΩ
1.0000kΩ: 0.02% + 0.2Ω
10.000kΩ: 0.02% + 3Ω
Frequency Sourcing Sinewave: 0.1Hz to 10.99Hz: 0.01 Hz
Squarewave: 0.01Hz to 10.99Hz: 0.01Hz
Sine and square 11.00Hz to 109.99Hz: 0.1Hz
Sine and square 110.0Hz to 1099.9Hz: 0.1Hz
Sine and square 1.100kHz to 21.999kHz: 0.002kHz
Sine and square 22.000kHz to 50.000kHz: 0.005kHz
Click here for complete specifications on the Fluke 754

What's included with the Fluke 754

  • Fluke 754 Handheld Multi-Function Process Calibrators with HART Calibration
  • BC7240 battery charger
  • Li-on BP7240 battery pack
  • DPCTrack 2™ Sample Software
  • Instruction manual
  • Traceable calibration report and data
  • Three sets of TP220 test probes with three sets of "extended tooth" alligator clips
  • Two sets AC280 hook clips
  • C799 Soft Field Case
  • USB communication cable
  • Fluke 754HHC HART communications cable

What's in the box?

Introduction to HART utilities in the Fluke-754 DPC

Testing a RTD input temperature transmitter with the Fluke-754 DPC
