Fluke 83V Industrial Multimeter, 6000 counts-
Downloads: datasheet manual

Ask an Expert

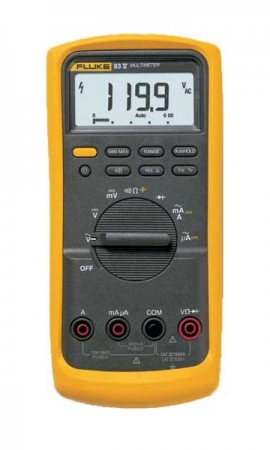

Fluke 83V Industrial Multimeter, 6000 counts

Model: 83V | Order No: 83-5

Works in loud, high energy, and high altitude locations, making this industrial multimeter ideal for industrial electricians for tasks from the control room to the plant floor. Additionally, this tool provides accuracy and advanced troubleshooting capabilities.

Traceable Calibration Certificate for your 83-5 Industrial Multimeter

$575.06 CAD

was $705.59

Availability:
1 in Stock


Fluke 83V Offers

Features

  • Large digit display with bright, two-level backlight
  • Resistance, continuity and diode test
  • Min/Max-Average recording with Min/Max Alert to capture variations automatically
  • Relative mode to remove test lead interference from low ohms measurements
  • Auto and manual ranging for maximum flexibility
  • Touch hold to capture stable readings avoiding noisy signals
  • Large display digits and two-level bright white backlight for increased visibility
  • Analog bar graph for fast changing or unstable signals
  • Input alert provides audible warning against wrong use of input jacks
  • Improved selectable sleep mode for long battery life
  • Access door for fast battery changes without breaking the calibration seal
  • "Classic" design with new removable holster with built in test lead and probe storage

Electrical safety

All inputs are updated to the 3rd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600 V and CAT III, 1000 V. They can withstand impulses in excess of 8.000 V and reduce risks related to surges and spikes.

Identify complex signal problems fast

When productivity is on the line and you need to solve problems fast, this multimeter delivers the accuracy and advanced troubleshooting capabilities you need.

Min/Max allows capture of signal changes

  • 6000 count display resolution
  • CAT III 1000 V, CAT IV 600 V safety rated

Fluke 83V Specifications

Voltage DC
Maximum Voltage 1000 V
Accuracy ±(0.1% + 1)
Maximum Resolution 100 µV
Voltage AC
Maximum Voltage 1000 V
Accuracy ±(0.5% + 2)
Maximum Resolution 0.1 mV
Current DC
Maximum Amps 10 A (20 A for 30 seconds maximum)
Amps Accuracy ±(0.4% + 2)
Maximum Resolution 0.01 mA
Current AC
Maximum Amps 10 A (20 A for 30 seconds maximum)
Amps Accuracy ±(1.2% + 2)
Maximum Resolution 0.1 µA
Resistance
Maximum Resistance 50 MΩ
Accuracy ±(0.4% + 1)
Maximum Resolution 0.1 Ω
Capacitance
Maximum Capacitance 9999 µF
Accuracy ±(1% + 2)
Maximum Resolution 0.01 nF
Frequency
Maximum Frequency 200 kHz
Accuracy ±(0.005% + 1)
Maximum Resolution 0.01 Hz
Duty Cycle
Maximum Duty Cycle 99.9%
Accuracy ±(0.2% per khz + 0.1%)
Maximum Resolution 0.1%
Conductance
Maximum Conductance 60.00 nS
Accuracy ±(1.0% + 10)
Maximum Resolution 0.01 nS
Diode
Range 3 V
Resolution 1 mV
Accuracy ±(2% + 1)
Duty Cycle Range
Accuracy Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating Temperature -4 to 131°F (–20 to 55°C)
Storage Temperature -40 to 140°F (–40 to 60°C)
Humidity (Without Condensation) 0 to 90% between 32 to 95°F (0 to 35°C)
0 to 70% between 95 to 131°F (35 to 55°C)
Operating Altitude 6561.68' (2000 m)
Mechanical and General Specifications
Display Digital: 6000 counts updates 4/sec
Analog: 32 segments, updates 40/sec
Frequency: 19,999 counts, updates 3/sec at > 10 Hz
Battery Life Alkaline battery around 400 hours typical, without backlight
Shock 3.3' (1 m) drop per IEC 61010–1:2001
Vibration Per MIL–PRF–28800 for a Class 2 instrument
Dimensions 7.9 x 3.9 x 2" (201 x 98 x 52 mm)
Weight 0.78 lbs (355 g)
Safety Specifications
Over Voltage Category EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency Approvals CSA, TÜV
Click here for complete specifications on the Fluke 83V

What's included with the Fluke 83V

  • Multimeter
  • Test Leads
  • Alligator Clips
  • Holster
  • 9 V Battery (Installed)
  • Lifetime Warranty
