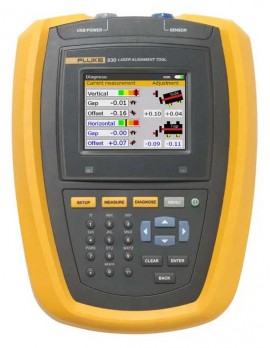

Fluke 830/BT Laser Shaft Alignment Tool with Bluetooth

Model: 830/BT

Rugged and reliable, this laser shaft alignment tool features an enhanced user interface and improved data accuracy. Easy-to-use and with an intuitive user interface, this laser shaft alignment tool performs complicated alignment calculations and provides accurate and repeatable measurement results.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 831 Laser Shaft Alignment Tool

Model: 831

Get more out of your shaft-driven systems with this precise laser shaft alignment tool that helps reduce wear in couplings, bearings, and seals to reduce plant operation and maintenance costs. Quick, easy, and powerful, this alignment tool can handle almost any mainstream machine alignment challenge.

Learn More

Fluke 830/BT Offers

Features

Single-laser measurement technology means reduced errors from backlash, resulting in better data accuracy
Intuitive guided user interface quickly and easily completes machine alignments
Compass measurement mode enables flexible, reliable, and repeatable measurements using an activated electronic inclinometer
Dynamic machine tolerance check provides continuous evaluation of alignment adjustments, so you know when your machine in acceptable range
Unique extend mode handles gross misalignment by virtually increasing laser detector size
Data protection ensures your data is there when you need it, with auto save and resume capability

Applications

Precision alignment
Rotating shafts
Maintenance

Fluke 830/BT Specifications

Computer
CPU	Processor: Intel XScale PXA270 running at 312 MHz Memory: 64 MB RAM, 64 MB flash
Display	Type: TFT, transmissive (sunlight-readable), 65,535 colors, backlit LED Integrated light sensor for automated adjustment of the brightness to the display according to the lighting conditions - extends battery life Resolution: 320 x 240 pixel; dimensions: 3.5" (89 mm) diagonal Keyboard elements: Setup, measure, diagnose, menu, clear, enter, back keys, navigation cursor cross, alphanumeric keyboard and on/off button
LED Indicators	Multicolor LED for laser status and alignment condition Multicolor LED for battery status
External Interface	USB host and USB device (slave) Integrated wireless communication, class 1, transmitting power 100 mW AC adapter/charger socket
Environmental Protection	IP65 (dust proof and water spray resistant), shockproof Relative humidity 10 to 90%
Temperature Range	Operation: 14 to 122°F (-10 to 50°C) Storage: -4 to 140°F (-20 to 60°C)
Battery	Type: Li-Ion polymer rechargeable battery 7.4 V/2.6 Ah (optimal) Operating time: Up to 17 hours (33% measurement, 33% computation, 33% sleep mode)
Dimensions	Approximately 8.7 x 6.5 x 1.8" (220 x 165 x 45 mm)
Weight	Approximately 1.64 lbs (742 g)
Carrying Case
Dimensions	Approximately 22.25 x 13.5 x 5" (565 x 343 x 127 mm)
Weight	Approximately 12.3 lbs (5.6 kg) with all standard parts
Reflector (Prism)
Type	90° roof prism; accuracy (average): >99%
Environmental Protection	IP67 (submersible, dust proof)
Temperature Range	Operation: -4 to 140°F (-20 to 60°C) Storage: -4 to 176°F (-20 to 80°C)
Dimensions	Approximately 4 x 1.62 x .37" (100 x 41 x 35 mm)
Weight	Approximately 2.3 oz (65 g)
sensALIGN 3 Sensor
Measurement Principle	Coaxial, reflected laser beam
LED Indicators	1 LED for laser beam status and battery status 1 LED for wireless communication
Power Supply	Battery: Lithium-Ion rechargeable battery 3.7 V/5 Wh Operating time: 10 hours (continuous use) Charging time: Using charger - 2.5 hrs for up to 90%; 3.5 hrs for up to 100%; Using USB port - 3 hrs for up to 90%; 4 hrs for up to 100%
Environmental Protection	IP65 (dust proof and water spray resistant), shockproof Relative humidity 10 to 90% (non-condensing)
Ambient Light Protection	Yes
Temperature Range	Operation: 14 to 122°F (-10 to 50°C) Charging: 32 to 104°F (0 to 40°C) Storage: -4 to 140°F (-20 to 60°C)
Detector	Measurement range: Unlimited, dynamically extendible Resolution: 1 μm (0.04 mil) and angular 10 μRad Accuracy (average): >98%
Inclinometer	Measurement range: 0 to 360° Resolution: 0.1° Inclinometer error (Ta = 22°C): +0.3% read out
Laser	Type: Semiconductor laser diode Wavelength: 630 to 680 nm (red, visible) Safety class: Class 2 according to IEC 60825-1:2014 The laser complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Beam power: <1 mW; Beam divergence: 0.3 mRad
External Interface	Wireless communication
Transmission Distance	Up to 98' (30 m) direct line of sight
Dimensions	Approximately 4.1 x 2.72 x 2.17" (105 x 69 x 55 mm)
Weight	Approximately 7.4 oz (210 g) with dust cap

Click here for complete specifications on the Fluke 830/BT

What's included with the Fluke 830/BT

Laser Alignment Tool
Wireless Sensor with Dust Cap
Prism with Dust Cap
2 x Chain-Type Mounting Brackets with Support Posts
PC Cable
USB Memory Stick
USB Cable for USB Memory Stick
Cleaning Cloth
Carrying Case
Adapter/Charger
USB Adapter/Charger
Micro USB Cable
Documentation
