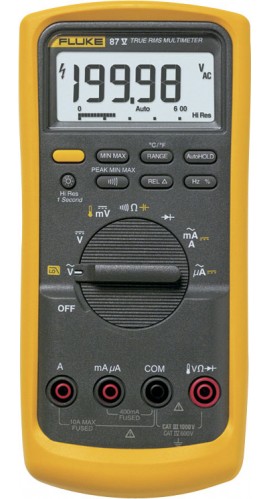

Fluke 87V Industrial True-RMS Multimeter with temperature, 1000 V, 10 A

Model: 87V | Order No: 87-5

Identify complex signal problems fast with this industrial multimeter capable of capturing intermittents as quickly as 250 μS. In addition, this multimeter features a low-pass filter for accurate measurements on VFDs and shielding to block readings from high-frequency and high-energy noise.

Traceable Calibration Certificate for your 87-5 Industrial True-RMS Multimeter with temperature

$587.44 CAD

was $720.79

Availability:
39 in Stock


The Fluke 87V Industrial True-RMS Multimeter

The Fluke 87V has improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electromechanical equipment. The 87V operates very similar to the classic 87, but with more problem-solving power, safety, convenience and impact protection.
With its newly incorporated selectable low pass filter, the Fluke 87V allows troubleshooters to take accurate voltage, current and frequency measurements on the output side of the drive at either the drive itself or the motor terminals.

Features for maximum productivity:

  • Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment (87V)
  • Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument (87V)
  • Large digit display with bright, two-level backlight makes the 80 Series V significantly easier to read than older models

Electrical Safety:

All inputs are protected to Category III, 1000 V and Category IV 600 V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.

For a greater value see these Fluke 87V Kits and Bundles:

Fluke 87V Key Features:

  • True-rms ac voltage and current for accurate measurements on non linear signals
  • Selectable filter for accurate voltage and frequency measurements on motor drives
  • 0.05 % dc accuracy
  • 4-1/2 digit mode for precise measurements
  • Built-in thermometer lets you carry one less tool
  • Large display digits and two-level bright white backlight for increased visibility
  • 10,000 µF capacitance range for components and motor caps
  • Peak capture to record transients as fast as 250 µs
  • Measure up to 1000 V ac and dc
  • Measure up to 10 A, 20 A for up to 30 seconds
  • Auto and manual ranging for maximum flexibility
  • Analog bargraph
  • Resistance, continuity and diode test
  • Frequency to 200 kHz and % duty cycle
  • Min/Max and average recording to capture variations automatically
  • Relative mode to remove test lead resistance from low ohms measurements
  • Improved sleep mode for long battery life
  • Access door for fast battery changes without breaking the calibration seal
  • Limited lifetime warranty
  • Removable holster with built in test lead and probe storage
  • Cat IV 600 V and Cat III 1000 V electrical safety ratings
  • Basic test leads and alligator clips
  • Bead type thermocouple temperature probe

Correctly measure pulse-width modulated motor drive signals

Until now, there hasn't been a multimeter able to accurately measure adjustable speed drives. But the Fluke 87V is designed specifically to handle these complex signals. Think of the potential productivity you'll gain by taking the guesswork out of drive system troubleshooting. Measurements are correct each and every time.

  • Unique function for accurate measurements of noisy pulse-width modulated AC voltage.
  • Measures correctly at the ASD and at the motor terminals
  • Accurately measure the frequency (motor speed). Frequency measurement not affected by the ASDs carrier frequency
  • Measure AC current with an optional current clamp accessory
  • Compare reading from the 87V with the display on the ASD
  • Special shielding blocks high frequency, high-energy noise generated by large drive systems

Fluke 87V Specifications

Voltage DC:
Maximum voltage: 1000 V
Accuracy: ±(0.05% + 1)
Maximum resolution: 10μV

AC:
Maximum voltage: 1000 V
Accuracy: ±(0.7% + 2) True RMS
AC bandwidth: 20 kHz with low pass filter; 3 dB at 1 kHz
Maximum resolution: 0.1 mV
Current DC:
Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(0.2% + 2)
Maximum resolution: 0.01μA

AC:
Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(1.0% + 2) True RMS
Maximum resolution: 0.1μA
Resistance Maximum resistance: 50 MΩ
Accuracy: ±(0.2% + 1)
Maximum resolution: 0.1 Ω
Capacitance Maximum capacitance: 9,999μF
Accuracy: ±(1% + 2)
Maximum resolution: 0.01 nF
Frequency Maximum frequency: 200 kHz
Accuracy: ±(0.005% + 1)
Maximum resolution: 0.01 Hz
Duty Cycle Maximum duty cycle: 99.9%
Accuracy: ±(0.2% per kHz + 0.1%)
Maximum resolution: 0.1%
Range: Accuracy within ±(0.2% per kHz + 0.1%)
Temperature Measurement: -328.0 to 1994.0°F (-200.0 to 1090°C) excluding probe
Operating: 68 to 131°F (-20 to + 55°C)
Storage: -40 to 140°F (-40 to + 60°C)
80 BK Temperature Probe -40 to 500°F (-40 to 260°C), 35.96°F (2.2 °C) or 2% whichever is greater
Conductance Maximum conductance: 60.00 nS
Accuracy: ±(1.0% + 10)
Maximum resolution: 0.01 nS
Diode Range: 3 V
Resolution: 1 mV
Accuracy: ±(2% + 1)
Humidity (without condensation) 0 to 90% (32 to 95°F [0 to 35°C])
0 to 70% (95 to 131°F [35 to 55°C])
Operating Altitude 6561.68' (2000 m)
Overvoltage Category EN 61010-1 to 1000 V CAT III, 600V CAT IV
Agency Approvals CE, CSA, RCM
Display Digital: 6000 counts updates 4/seconds, 19,999 counts in high-resolution mode
Analog: 32 segments, updates 40/seconds
Frequency: 19,999 counts, updates 3/seonds at > 10 Hz
Shock 3.28' (1m) drop per IEC 61010-1:2001
Vibration Per MIL-PRF-28800 for a Class 2 instrument
Power Alkaline approximately 400 hours typical, without backlight
Dimensions 7.9 x 3.8 x 2" (201 x 98 x 52 mm) (with holster)
Weight 0.78 lbs (355 g)
1.37 lbs (624 g) - with holster
Click here for complete specifications on the Fluke 87V

What's included with the Fluke 87V

  • Industrial Multimeter
  • Test Leads
  • Alligator Clips
  • Temperature Probe
  • Holster
  • 9 V Battery (Installed)
  • Lifetime Warranty
