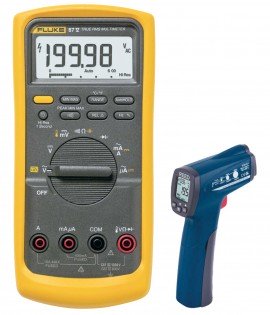

Fluke 87V True RMS Industrial Multimeter Kit - Includes the R2300 Infrared Thermometer for FREE-
Downloads: datasheet manual

Ask an Expert

Fluke 87V True RMS Industrial Multimeter Kit - Includes the R2300 Infrared Thermometer for FREE

Model: 87V-KIT6 | Order No: 87-5-KIT6

Solve problems fast and deliver accurate and advanced troubleshooting capabilities that can handle complex signals with this industrial multimeter. This value added kit includes the REED R2300 infrared thermometer for FREE.

Traceable Calibration Certificate for your 31898

$587.44 CAD

was $759.79

Availability:
39 in Stock


Fluke 87V Offers

Identifies complex signal problems fast

Provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment. On top of that, this industrial multimeter effectively performs in loud, high energy, and high altitude locations. Features a low pass filter which supports precise frequency measurements on VFDs and acquires intermittents as quickly as 250 µS.

Use this multimeter to measure AC currents up to 10 A directly. Also, features a built-in thermometer that enables you to take temperature readings without having to carry a separate instrument and more. Plus, comes with a bright, two-level backlit display which allows you to see the results better in dim light.

Correctly measure pulse-width modulated motor drive signal

Takes the guesswork out of drive system troubleshooting. Includes a unique function for accurately measuring noisy at the VFD and at the motor terminals. Special shielding blocks high frequency, high-energy noise generated by large drive systems.

Electrical safety

All the inputs on this industrial multimeter are updated to the third and CAT III, 1000 V. They are designed to withstand spikes in excess of 8 V.

Features

  • Rugged, high accuracy industrial multimeter to measure current, voltage and frequency on complex variable frequency drive (VFD) signals
  • True-RMS AC voltage and current for measuring non-linear signals
  • Captures intermittents as short as 250 µS
  • Safety rated CAT III 1000 V, CAT IV 600 V
  • Built-in thermometer and temperature probe
  • Easy access door for fast battery changes without breaking the calibration seal
  • Removable holster with built in test lead and probe storage for convenience
  • Audible Input Alert warning against wrong use of input jacks
  • Provides peak capture and Min/Max/Avg recording
  • Designed and built in the U.S.
  • 6000 counts, 3-3/4 digit resolution, or 20,000 counts, 4-1/2 digit—resolution
  • Fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
  • Includes an analog bar graph for fast changing or unstable signals
  • Presents a large digit display with bright, two-level backlight for easier reading in low light
  • Delivers 0.05% DC accuracy
  • Measures up to 1000 VAC and DC
  • 10,000 µF capacitance range for components and motor caps
  • Relative mode to remove test lead interference from low ohms measurements
  • Auto and manual ranging for maximum flexibility
  • Touch hold to capture stable readings of noisy signals
  • Two-level backlit display

Applications

  • Motor drives
  • Plant automation
  • Power distribution
  • Electromechanical equipement

REED R2300 Infrared Thermometer

This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance.

Features

  • Built-in laser pointer identifies target area
  • User selectable °F or °C
  • 12:1 distance to spot size ratio
  • Digitally adjustable emissivity
  • Max and Min readings
  • Backlit display
  • High and low alarms
  • Low battery indication and auto shut off

Applications

  • Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment
  • Calibration and control of heater and oven temperatures
  • Monitoring materials in processes involving heating and/or cooling
  • Quality control monitoring
  • Research and development applications
  • Automotive diagnostics
  • Conduct HVAC/R energy audits

How to choose the best DMM for your job?

Multimeter Selection Guide

Fluke 87V-KIT6 Specifications

Voltage DC Max voltage: 1000 V
Accuracy: ±(0.05% + 1)
Maximum resolution: 10 µV
Voltage AC Max voltage: 1000 V
Accuracy: ±(0.7% + 2) True RMS
AC bandwidth: 20 kHz with low pass filter; 3 db @ 1 kHz
Maximum resolution: 0.1 mV
Current DC Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(0.2% + 2)
Maximum resolution: 0.01 µA
Current AC Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(1.0% + 2) True RMS
Maximum resolution: 0.1 µA
Resistance Maximum resistance: 50 MΩ
Accuracy: ±(0.2% + 1)
Maximum resolution: 0.1 Ω
Capacitance Maximum capacitance: 9999 µF
Accuracy: ±(1% + 2)
Maximum resolution: 0.01 nF
Frequency Maximum frequency: 200 kHz
Accuracy: ±(0.005% + 1)
Maximum resolution: 0.01 Hz
Temperature Measurement -328 to 1994°F (-200 to 1090°C) excluding probe
80 BK Temperature Probe -40 to 500°F (-40 to 260°C), 2.2°C or 2% whichever is greater
Operating Temperature -4 to 131°F (-20 to 55°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Operating Altitude 6561' (2000 m)
Dimensions 7.9 x 3.9 x 2.05" (201 x 98 x 52 mm)
Weight 0.8 lb (355 g)
Click here for complete specifications on the Fluke 87V-KIT6

This Fluke 87-5-KIT6 Industrial TRMS Multimeter Kit Includes

Fluke 87V True-RMS Multimeter with Temperature

Fluke 87V True-RMS Multimeter with Temperature

Industrial multimeter that delivers accurate frequency measurements on adjustable speed drives. CAT III 1000V, CAT IV 600V safety rated.

REED R2300 Infrared Thermometer

REED R2300 Infrared Thermometer

Fast responding entry-level infrared thermometer with min/max temperature readings and adjustable high/low temperature alarms.

What's included with the Fluke 87V-KIT6

  • Industrial Multimeter
  • TL75 Test Leads
  • AC72 Alligator Clips
  • 80BK Temperature Probe
  • Holster
  • 9V Battery (Installed)
  • Getting Started Manual
  • Operators Guide
  • Lifetime Warranty
