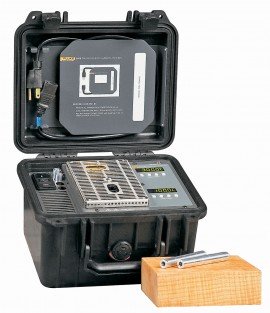

Fluke 9009-B-156 Dual Range Dry-Block Calibrator, Black

Model: 9009-B-156

Lightweight and water-resistant, this industrial dual-block calibrator lets you calibrate at hot and cold temperatures simultaneously. Housed in a Pelican case, each temperature block includes two wells with removable inserts and is guided by a precision Fluke Calibration temperature controller.

Traceable Calibration Certificate for your 9009-B-156 Dual Range Dry-Block Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIDW1) for only $295.00 CAD

$12,572.00 CAD

Availability:
1 in Stock

Fluke 9009-B-156 Offers

Eliminating the need to wait for multiple temperature points during calibration, this unique dual unit allows you to calibrate your sensor in the heated well while the cool well stabilizes. By having two independently controlled temperature blocks, one for heating and one for cooling, with a combined range of 5 to 662°F (-15 to 350°C), the time saved is well worth it.

Features

Two independently controlled temperature blocks, one for heating and one for cooling with a combined range of -15 to 350°C
Unique dual unit allows you to calibrate your sensor in the heated well while the cool well stabilizes; this eliminates the need to wait for multiple temperature points during calibration
Each block is controlled by a precision Hart Scientific temperature controller
Inserts are available to accommodate sensors of any size from 1/16" (1.6 mm) to 7/16" (11.1 mm)
RS-232 connection and Interface-it software allows you to control and monitor temperatures from your PC
For completely automated calibrations, Hart's MET/TEMP II software also integrates with the 9009
A single AC connection powers both temperature wells for convenience at the job site
Housed in a tough Pelican™ case that is both airtight and watertight
Both wells accept the same removable inserts so that you only have to keep one set on hand for both wells (four inserts are stored in the wells, and an additional four can be stored in a convenient holding rack inside the case)

Applications

Laboratory
Education
R&D
Lab calibration
Field calibration

Fluke 9009-B-156 Specifications

Range	Hot block: 122 to 662°F (50 to 350°C) Cold block: 5 to 230°F (–15 to 110°C) (17 to 230°F (-8 to 110°C) when hot block is at 662°F (350°C))
Accuracy (Ambient at 23°C ±5°C)	Hot block: ±0.6°C Cold block: ±0.2°C
Stability	Hot block: "0.1°C from 122 to 212°F (50 to 100°C), "0.05°C > 212°F (100°C) Cold block: °0.05°C
Well-to-Well Uniformity	±0.1°C
Display Resolution	0.1°
Heating Times	Hot block: 30 minutes from 77 to 662°F (25 to 350°C) Cold block: 15 minutes from 77 to 230°F (25 to 110°C)
Cooling Times	Hot block: 40 minutes from 662 to 212°F (350 to 100°C) Cold block: 16 minutes from 77 to 5°F (25 to -15°C)
Stabilization Times	8 minutes
Well Depth	4" (102 mm)
Removable Inserts	Two ¼" (6.4 mm) and 3/16" (4.8 mm) inserts included
Power	115 VAC (±10%), 50/60 Hz, 3 A, 250 W
Heater	Hot block: 135 W Cold block: 40 W TED
Cooling	Hot block: Fan Cold block: 40 W TED
Dimensions	7 x 10.5 x 9.75" (178 x 267 x 248 mm)
Weight	10 lbs (4.5 kg)
Safety	Over Voltage (Installation) CATEGORY II, Pollution Degree 2 per IEC1010-1

Click here for complete specifications on the Fluke 9009-B-156

What's included with the Fluke 9009-B-156

Dry Well
Report of Calibration with Calibration Label
2 x 3102-3 ( 3/16") and two 3102-4 (¼") Inserts
Power Cord
RS-232 Cable
Insert Removal Tool
User's Manual
