Fluke 9142-A-P-156 Low Temp Process Field Metrology Well-
Downloads: datasheet manual

Ask an Expert

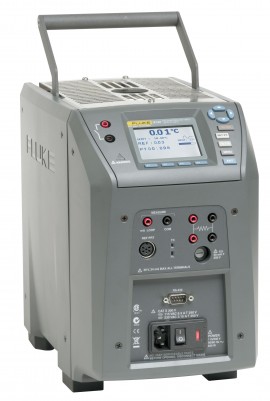

Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

Model: 9142-A-P-156

This unit has a built-in two channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20mA transmitters which includes the 24V loop supply to power the transmitter.

Traceable Calibration Certificate for your 9142-A-P-156 Low Temp Process Field Metrology Well

$14,401.04 CAD

Availability:
2 to 3 Weeks


Fluke 9142-A-P-156 Low Temp Process Field Metrology Well Offers

Features

  • Each process version provides built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24V loop supply to power the transmitter
  • Accuracy ranges from ±0.01°C to ±0.07°C depending on the measured temperature
  • Accepts an ITS-90 reference PRT that contains individual calibration constants that reside in a memory chip located inside the sensor housing, so sensors may be used interchangeably
  • Second channel is user-selectable for 2-, 3-, or 4-wire RTDs, thermo-couples, or 4-20 mA transmitters
  • With 24V loop power, you are able to power and measure the trans-mitter current while sourcing and measuring temperature thus allowing for the measurement of as-found and as-left data in one self-contained calibration tool
  • Onboard non-volatile memory for documentation of up to 20 tests
  • Each test can be given a unique alphanumeric ID and will record block temperature, reference temperature, UUT values, error, date, and time which can be viewed via the front panel or exported using Interface-it software (included)
  • Stability indicator visually and audibly tells you the Field Metrology Well is stable to the selectable criteria
  • Preprogrammed calibration routines are stored in memory for easy recall, and all inputs are easily accessible via the front panel of the instrument

Applications

Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration, Industrial Process

Fluke 9142-A-P-156 Specifications

Temperature Range -13 to 302°F (-25 to 150°C )
Accuracy ±0.2°C (full range)
Stability ±0.01°C (full range)
Radial Uniformity ±0.01°C (full range)
Axial Uniformity at 1.6" (40 mm) ±0.05°C (full range)
Hysteresis 0.025
Heating Time 23 minutes
Cooling Time 15 mins to -25°C
Immersion Depth 6" (150 mm)
Insert O.D. 1.18" (30 mm)
Power Supply 100-115V AC (±10%) 50/60Hz, 632W
230V AC (±10%) 50/60Hz, 575W
Dimensions 11.4 x 7.3 x 11.6" (290 x 185 x 295mm)
Weight 8.2 kg (18 lb)
General Specifications
Reference Characterization 4-wire, ITS-90, CVD, IEC-751, resistance
Reference Therm. Accuracy ±0.010°C at -25°C
±0.015°C at 0°C
±0.020°C at 50°C
±0.025°C at 150°C
±0.030°C at 200°C
±0.40°C at 350°C
±0.050°C at 420°C
±0.70°C at 660°C
Reference Resistance Range 0 to 400Ω
Resistance Accuracy 0-25Ω: ±0.002Ω
25-400Ω: ±60 ppm
RTD Characterization 4-wire PRT (2-, 3-wire RTD with jumpers only), PT-100 (385), (JIS), (3926), Ni-12, resistance
RTD Therm. Accuracy Ni-120: ±0.1°C at 0°C
Pt-100 (385): ±0.02°C at 0°C
Pt-100 (3926): ±0.02°C at 0°C
Pt-100 (JIS): ±0.02°C at 0°C
RTD Resistance Range 0 to 400Ω
RTD Resistance Accuracy 0-25Ω: ±0.002Ω
25-400Ω: ±80 ppm
T/C Therm. Accuracy J: ±0.07°C at 660°C
K: ±0.08°C at 660°C
T: ±0.08°C at 400°C
E: ±0.7°C at 660°C
R: ±1.4°C at 660°C
S: ±1.0°C at 660°C
M: ±1.4°C at 660°C
L: ±0.7°C at 660°C
U: ±0.75°C at 660°C
N: ±0.9°C at 660°C
C: ±1.1°C at 660°C
T/C mV Range -10 to 75 mV
Voltage Accuracy -10 to 50 mV: ±0.01 mV
50 to 75 mV: ±250 ppm
Cold Junction Compensation ±0.5°C (ambient 13 to 33°C)
mA Current Range Cal. 4-22mA, spec. 4-24mA
mA Accuracy 0.02% reading + 2µV
Loop Power 24-28V DC
Temperature Coefficient Range ±0.005% per °C
Click here for complete specifications on the Fluke 9142-A-P-156

What's included with the Fluke 9142-A-P-156

  • Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

Fluke 9142-A-P-156 Videos

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 9142-A-P-156 Low Temp Process Field Metrology Well.

Fluke Z Insert (Model 9142-INSZ) for 9142 Metrology Wells, Blank 9142-INSZ
Use this Z insert with your existing 9142 metrology well.
$505.43 CAD

was $620.16


Learn More
Fluke T Insert (Model 9142-INST) for 9142 Metrology Wells, Test 9142-INST
Use this T insert with your existing 9142 metrology well.
$778.10 CAD

was $954.72


Learn More
Fluke G Insert (Model 9142-INSG) for 9142 Metrology Wells, EA Test 9142-INSG
Use this G insert with your existing 9142 metrology well.
$1,009.12 CAD

Learn More
Fluke F Insert (Model 9142-INSF) for 9142 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole 9142-INSF
Use this F insert with your existing 9142 metrology well. The insert comes equipped with metric comparison misc holes for compatibility.
$594.10 CAD

was $728.96


Learn More
Fluke E Insert (Model 9142-INSE) for 9142 Metrology Wells, Metric Misc Holes with 0.25in Hole 9142-INSE
Use this E insert with your existing 9142 metrology well. The insert comes equipped with metric misc holes for compatibility.
$594.10 CAD

was $728.96


Learn More
Fluke D Insert (Model 9142-INSD) for 9142 Metrology Wells, Metric Comparison Holes 9142-INSD
Use this D insert with your existing 9142 metrology well. The insert comes equipped with metric comparison holes for compatibility.
$594.10 CAD

was $728.96


Learn More
Fluke C Insert (Model 9142-INSC) for 9142 Metrology Wells, 0.25in Holes 9142-INSC
Use this C insert with your existing 9142 metrology well. The insert comes equipped with 0.25in holes for compatibility.
$594.10 CAD

was $728.96


Learn More
Fluke B Insert (Model 9142-INSB) for 9142 Metrology Wells, Imperial Comparison Holes 9142-INSB
Use this B insert with your existing 9142 metrology well. The insert comes equipped with imperial comparison holes for compatibility.
$594.10 CAD

was $728.96


Learn More
Fluke A Insert (Model 9142-INSA) for 9142 Metrology Wells, Imperial Misc Holes 9142-INSA
Use this A insert with your existing 9142 metrology well. The insert comes equipped with imperial misc holes for compatibility.
$594.10 CAD

was $728.96


Learn More
Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.
$127.78 CAD

was $156.79


Learn More
Fluke 9142-CASE for Field Metrology Wells 9142-CASE
Field Metrology Well Case.
$1,680.00 CAD

Learn More
