Fluke 9142-B-156 Field Metrology Well with B Insert (Model 9142-INSB), -13 to 302°F-
Downloads: datasheet manual

Ask an Expert

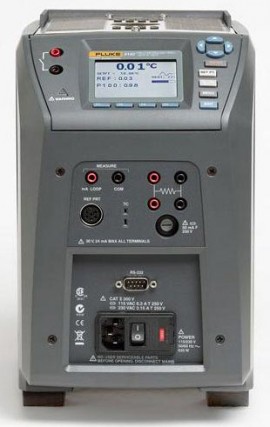

Fluke 9142-B-156 Field Metrology Well with B Insert (Model 9142-INSB), -13 to 302°F

Model: 9142-B-156

Use this field metrology well to perform transmitter loop calibrations, comparison calibrations or simple thermocouple sensor checks. With plenty of remarkly easy functions, this field metrology well comes with a B insert.

$11,519.20 CAD

Availability:
5 to 6 Weeks


Fluke 9142-B-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

  • Lightweight, portable, and fast
  • Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
  • Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
  • True reference thermometry with accuracy to ±0.01°C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9142-B-156 Specifications

Temperature Range at 23°C -13 to 302°F (-25 to 150°C)
Display Accuracy ±0.2°C (full range)
Operating Conditions 0 to 50°C, 0 to 90% RH (non-condensing)
Immersion (Well) Depth 5.9in (150mm)
Resolution 0.01°
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight 18lbs (8.16kg)
Power Requirements 100 to 115V (±10%), 50/60Hz, 635W; 230V (±10%), 50/60Hz, 575W
Computer Interface RS-232 (9930 Interface-it control software included)
Click here for complete specifications on the Fluke 9142-B-156

What's included with the Fluke 9142-B-156

  • User Manual
  • Technical Manual on CD
  • Serial Cable
  • 9930, Interface-it Software
  • Report of Calibration
  • Insert Removal Tool
