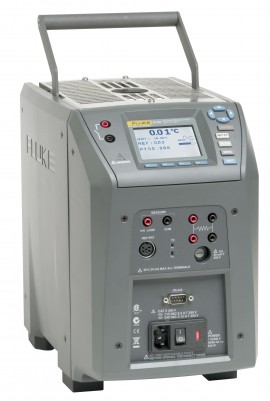

Fluke 9143-B-156 Field Metrology Well with B Insert (Model 9143-INSB), 33 to 350°C

Model: 9143-B-156

This small-sized field metrology well is perfect for big field applications, including transmitter loop calibrations, comparison calibrations and thermocouple sensor checks. The metrology well comes with a B insert.

$8,003.00 CAD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 9143-B-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

  • Lightweight, portable, and fast
  • Cool to 25 °C in 15 minutes and heat to 660 °C in 15 minutes
  • Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
  • True reference thermometry with accuracy to &plusm;0.01 °C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9143-B-156 Specifications

Temperature range at 23°C 91 to 662°F (33 to 350°C)
Display accuracy &plusm;0.2°C Full Range
Operating conditions 0°C to 50°C, 0% to 90% RH (non-condensing)
Immersion (well) Depth 5.9in (150mm)
Resolution 0.01°
Display LCD, °C or °F user-selectable
Size (H x W x D) 11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight 16lb (7.3kg)
Power requirements 100 V to 115 V (&plusm;10%) 50/60 Hz, 1400 W 230 V (&plusm;10%), 50/60 Hz, 1800 W
Computer interface RS-232 and 9930 Interface-it control software included

What's included with the Fluke 9143-B-156

  • Users manual
  • Technical manual on CD
  • Serial cable
  • 9930, Interface-it software
  • Report of calibration
  • Insert removal tool

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 9143-B-156 Field Metrology Well with B Insert (Model 9143-INSB), 33 to 350°C.

Fluke B Insert (Model 9143-INSB) for 9143 Metrology Wells, Imperial Comparison Holes 9143-INSB
Designed to work with the 9143 field metrology well, this B insert features imperial comparison holes.
$853.20 CAD

was $948.00
