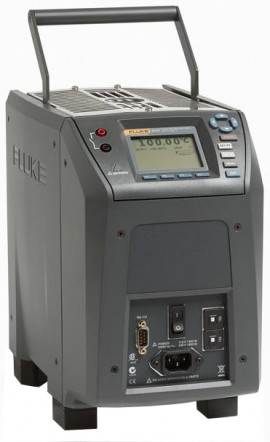

Fluke 9143-B-P-156 Field Metrology Well with B Insert (Model 9143-INSB) and Process Electronics, 91 to 662°F

Model: 9143-B-P-156

This small-sized field metrology well is perfect for big field applications, including transmitter loop calibrations, comparison calibrations and thermocouple sensor checks. The metrology well comes with a B insert and has process electronics.

Fluke 9143-B-P-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

Lightweight, portable, and fast
Cool to �25 °C in 15 minutes and heat to 660 °C in 15 minutes
Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
True reference thermometry with accuracy to &plusm;0.01 °C
On-board automation and documentation
Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9143-B-P-156 Specifications

Temperature range at 23°C	91 to 662°F (33 to 350°C)
Display accuracy	&plusm;0.2°C Full Range
Operating conditions	0°C to 50°C, 0% to 90% RH (non-condensing)
Immersion (well) Depth	5.9in (150mm)
Resolution	0.01°
Display	LCD, °C or °F user-selectable
Size (H x W x D)	11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight	16lb (7.3kg)
Power requirements	100 V to 115 V (&plusm;10%) 50/60 Hz, 1400 W 230 V (&plusm;10%), 50/60 Hz, 1800 W
Computer interface	RS-232 and 9930 Interface-it control software included

Click here for complete specifications on the Fluke 9143-B-P-156

What's included with the Fluke 9143-B-P-156

Users manual
Technical manual on CD
Serial cable
9930, Interface-it software
Report of calibration
Test leads
Insert removal tool
6-pin DIN connector for reference probe
