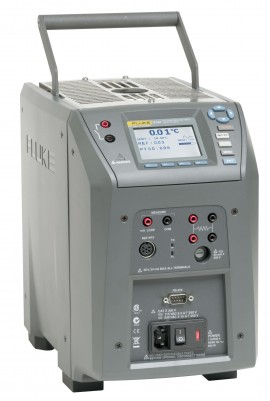

This small-sized field metrology well is perfect for big field applications, including transmitter loop calibrations, comparison calibrations and thermocouple sensor checks. The metrology well comes with an E insert.
It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.
|Temperature Range at 23°C||91 to 662°F (33 to 350°C)|
|Display Accuracy||±0.2°C (full range)|
|Operating Conditions||0 to 50°C, 0 to 90% RH (non-condensing)|
|Immersion (Well) Depth||5.9in (150mm)|
|Display||LCD, °C or °F (user-selectable)|
|Size (H x W x D)||11.4 x 7.3 x 11.6in (290 x 185 x 295mm)|
|Power Requirements||100 to 115V (±10%) 50/60Hz, 1400W; 230V (±10%), 50/60Hz, 1,800W|
|Computer interface||RS-232 (9930 Interface-it control software included)|
