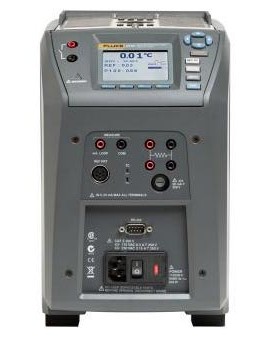

Designed to be lightweight, portable and fast, this field metrology well comes with a B insert and has process electronics. The metrology well is made for a variety of field applications, such as transmitter loop calibrations, comparison calibrations and thermocouple sensor checks.
It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.
|Temperature Range at 23°C||122 to 1,220°F (50 to 660°C)|
|Display Accuracy||±0.35°C at 50°C
±0.35°C at 420°C
±0.5°C at 660°C
|Operating Conditions||0 to 50°C, 0 to 90% RH (non-condensing)|
|Immersion (Well) Depth||5.9in (150mm)|
|Display||LCD, °C or °F (user-selectable)|
|Size (H x W x D)||11.4 x 7.3 x 11.6in (290 x 185 x 295mm)|
|Power Requirements||100 to 115V (±10%) 50/60Hz, 1,400W; 230V (±10%), 50/60Hz, 1,800W|
|Computer interface||RS-232 (9930 Interface-it control software included)|
