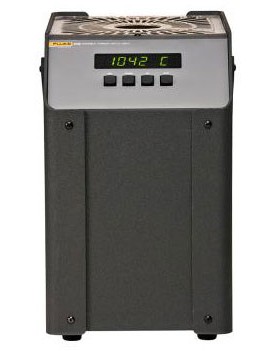

Fluke 9150-B-156 Thermocouple Furnace with 3150-3 Insert, 150 to 1,200°C

Model: 9150-B-156

Equipped with a microprocessor-based controller, this thermocouple furnace delivers excellent set-point accuracy, plus it comes with a removable 3150-3 well insert for added flexibility. The RS-232 port makes it easy to connect the furnace to a compatible computer.

Add In-House ISO Certified Calibration add to your 9150-B-156


$13,963.00 CAD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 9150-B-156 Offers

Comes with an RS-232 port for connection to a PC and is factory-calibrated and comes with test data and a calibration traceable to NIST.

Features

  • Low-cost thermocouple furnace
  • NIST-traceable calibration included
  • RS-232 port standard

Fluke 9150-B-156 Specifications

Temperature Range 302 to 2,192°F (150 to 1,200°C)
Display Resolution 0.1 to 999.9°; 1° above 1,000°
Stability ±0.5°C
Display Accuracy ±5°C
Well Diameter 1.25in (32mm)
Well Depth 5.5in (140mm); 4in (101mm) removable insert, plus 1.5in (38mm) insulator
Power 115VAC (±10%), 10.5A or 230VAC (±10%), 5.2A, switchable, 50/60Hz, 1,200W
Size (HxWxD) 12.4 x 8.2 x 12.4in (315 x 208 x 315mm)
Weight 28lbs (13kg)
NIST-Traceable Calibration Data at 150°C, 300°C, 450°C, 600°C, 800°C, 1,000°C and 1,200°C
Click here for complete specifications on the Fluke 9150-B-156

What's included with the Fluke 9150-B-156

  • Thermocouple Furnace
  • 3150-3 Insert, 9150-B Alumina with Comparison Holes
  • NIST-Traceable Calibration
