The well achieves a low temperature of -49°F (-45°C) in normal room conditions, and it is stable to ±0.005°C over its full temperature range (up to 284°F [140°C]) and has an immersion depth of 6.3" (160 mm). With axial uniformity of ±0.02°C and radial uniformity of ±0.01°C, it is perfect for a variety of pharmaceutical and other applications.
|Range (at 23°C Ambient)||-49 to 284°F (-45 to 140°C)|
|Display Accuracy||±0.1°C (full range)|
|Stability||±0.005°C (full range)|
|Axial Uniformity (60 mm)||±0.1°C at -45°C
±0.04°C at -35°C
±0.02°C at 0°C
±0.07°C at 140°C
|Radial Uniformity||±0.01°C full range|
|Well Depth||6.3" (160 mm)|
|Display||LCD, °C or °F (user-selectable)|
|Power||115 VAC (±10%), or 230 VAC (±10%), 50/60 Hz, 550 W|
|Traceable Calibration||Data at -45°C, 0°C, 50°C, 100°C and 140°C|
|Dimensions||14.4 x 8 x 12.7" (366 x 203 x 323 mm)|
|Weight||31.5 lbs (14.2 kg)|

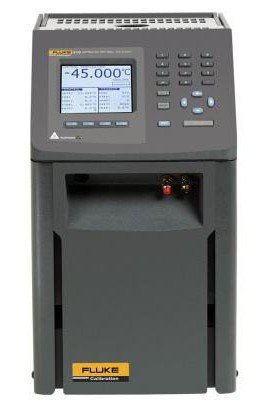

Click on a category to view a selection of compatible accessories with the Fluke 9170-A-156 Metrology Well Calibrator with "A" insert, -49 to 284°F.
